1986 Suzuki LT230GE Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 1986 Suzuki LT230GE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

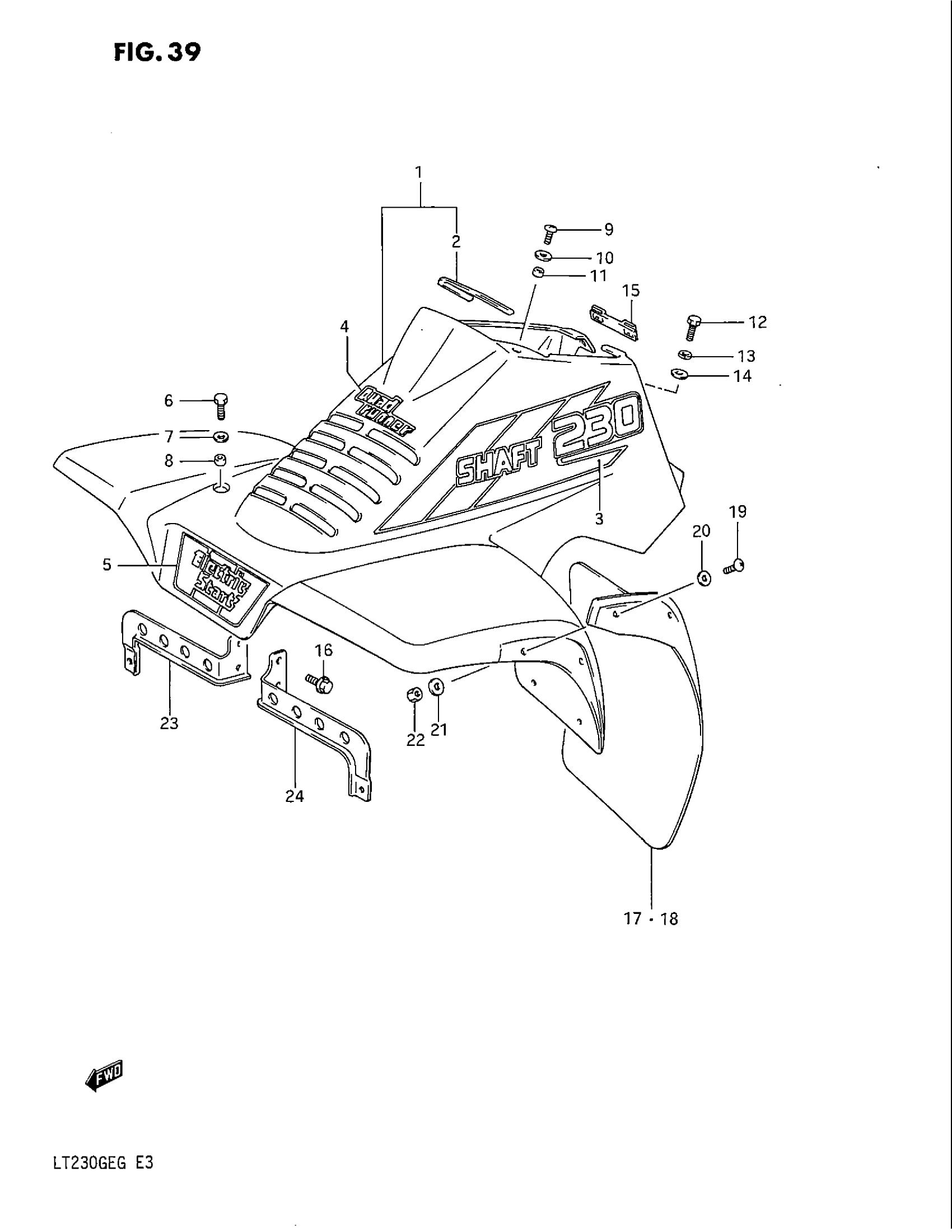

1986 Suzuki LT230GE Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT CENTER (ORANGE) | Includes Item(s) 2

53110-18A00-25G

1
Out of stock

2

PROTECTOR, CABLE

58627-18A00

1
Out of stock

3

TAPE SET

68150-18A10-7ZG

1
Out of stock

4

EMBLEM, FENDER NAME

68233-18930-73J

1
Out of stock

5

EMBLEM, FRONT FENDER

68151-18A10-7ZH

1
Out of stock

6

BOLT, FENDER FRONT

01204-08207

2
Out of stock

7

WASHER (8.5X20X1.6) This part replaces 09160-08072.

09160-08054

2
Out of stock

8

SPACER, REAR This part replaces 09180-08110.

09180-08184

2
Out of stock

9

SCREW This part replaces 02142-06165.

02142-0616A

2
Out of stock

10

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06069.

09160-06052

2
Out of stock

11

SPACER

09180-06092

2
Out of stock

12

BOLT This part replaces 01107-06166.

01500-0616A

2
Out of stock

13

LOCK WASHER This part replaces 08321-21066.

08321-0106A

2
Out of stock

14

WASHER

09169-06033

2
Out of stock

15

PLATE, BRACE

53280-18900

1
Out of stock

16

BOLT This part replaces 01517-06164.

01550-0616A

4
Out of stock

17

MUD FLAP, RH This part replaces 53311-18A00.

53311-18A01

1
Out of stock

18

MUD FLAP, LH This part replaces 53312-18A00.

53312-18A01

1
Out of stock

19

SCREW This part replaces 02142-06165.

02142-0616A

10
Out of stock

20

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

10
Out of stock

21

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

10
Out of stock

22

.NUT This part replaces 08319-21068.

08319-2106A

10
Out of stock

23

BRACE, FRONT FENDER RH

53211-18A00

1
Out of stock

24

BRACE, FRONT FENDER LH

53241-18A00

1
Out of stock

25

SCREW This part replaces 02142-06165.

02142-0616A

2
Out of stock

26

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

2
Out of stock

27

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

2
Out of stock

28

.NUT This part replaces 08319-21068.

08319-2106A

2
Out of stock
