1986 Suzuki LT230GE Carrier Diagram

← All diagrams

Find the part on the Carrier diagram for your 1986 Suzuki LT230GE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

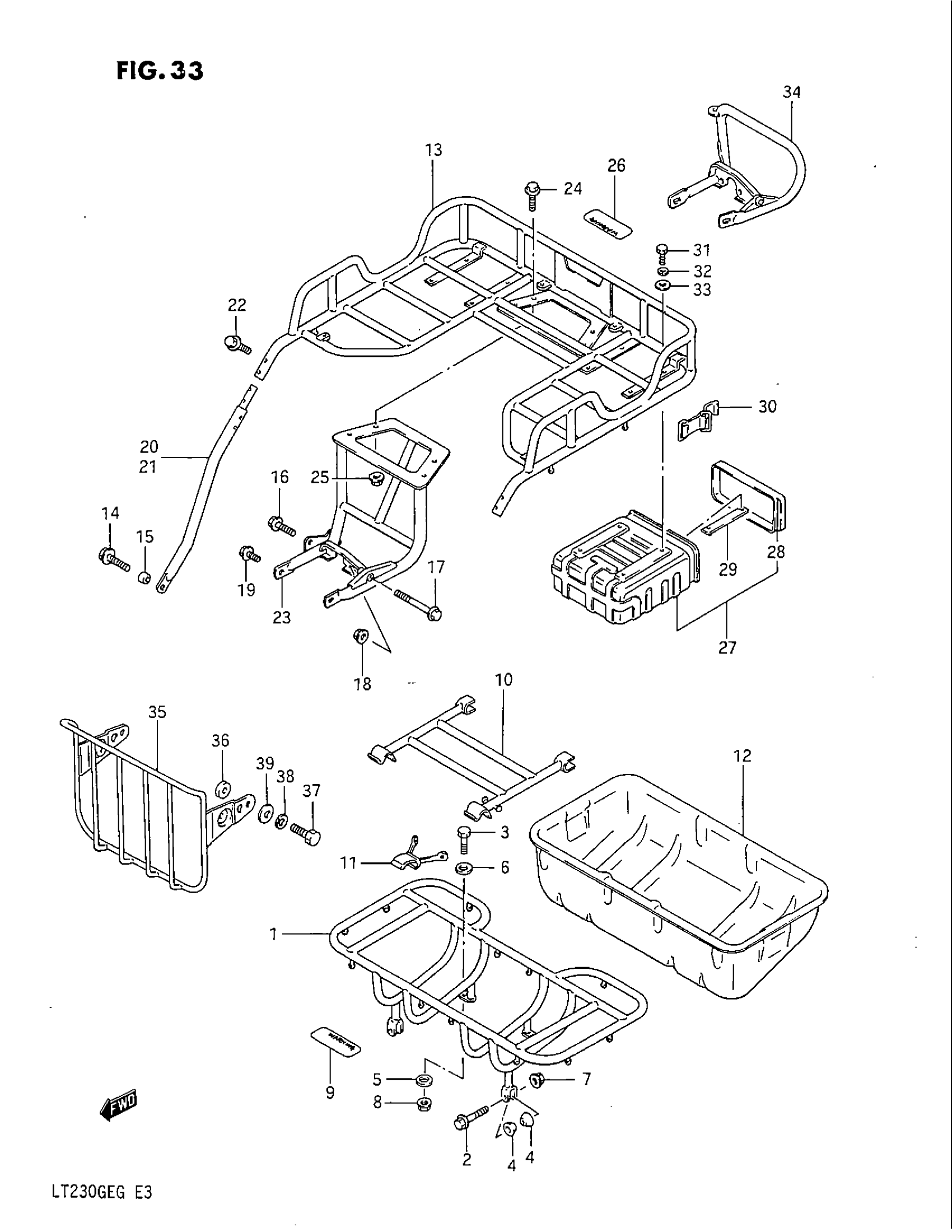

1986 Suzuki LT230GE Carrier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARRIER, FRONT

46410-18A50

1
Out of stock

2

BOLT This part replaces 01517-08405.

01550-08407

2
Out of stock

3

BOLT This part replaces 01107-08255.

01500-0825A

2
Out of stock

4

SPACER This part replaces 46441-24450.

46441-24451

4
Out of stock

5

WASHER (10.5X22X3.2) This part replaces 09160-10075.

09160-10125

4
Out of stock

6

WASHER (8.5X20X1.6) This part replaces 09160-08089.

09160-08054

3
Out of stock

7

NUT This part replaces 08316-16085.

08316-1008B

2
Out of stock

8

NUT This part replaces 08319-31088.

08319-3108A

2
Out of stock

9

LABEL, FRONT CARRIER

68381-18A20

1
Out of stock

9

LABEL, FRONT CARRIER

68381-18A11

—
Out of stock

10

CARRIER, FRONT SUB

46340-24450

1
Out of stock

11

BAND

09462-00083

2
Out of stock

12

PAN, FRONT CARRIER

92122-18A00

1
Out of stock

13

CARRIER, REAR This part replaces 46310-18A50.

46310-18A51

1
Out of stock

14

BOLT This part replaces 01517-10305.

01550-1030A

2
Out of stock

15

SPACER

09180-10100

2
Out of stock

16

BOLT, REAR

09103-08065

1
Out of stock

17

BOLT, REAR LH

09103-08181

1
Out of stock

18

NUT This part replaces 08319-31088.

08319-3108A

2
Out of stock

19

BOLT, CENTER

09103-08172

2
Out of stock

20

LEG, REAR CARRIER RH

46360-18A50

1
Out of stock

21

LEG, REAR CARRIER LH

46370-18A50

1
Out of stock

22

BOLT This part replaces 01517-08304.

01550-0830A

4
Out of stock

23

SUB CARRIER, REAR This part replaces 46380-18A50.

46380-18A51

1
Out of stock

24

BOLT (8X20) This part replaces 09103-08102.

09103-08505

4
Out of stock

25

NUT This part replaces 08319-31085.

08319-3108A

4
Out of stock

26

LABEL,REAR CARR This part replaces 68381-24500.

68391-19B01

1
Out of stock

26

LABEL, REAR CARRIER

68381-24510

1
Out of stock

27

BOX ASSY | Includes Item(s) 28

47400-24820

2
Out of stock

28

CAP, BOX

47432-24500

2
Out of stock

29

PLATE, BOX

47441-29500

4
Out of stock

30

BAND, BOX

44560-41300

2
Out of stock

31

BOLT This part replaces 01107-06125.

01500-0612A

8
Out of stock

32

8

$1.97

In stock

33

.WASHER This part replaces 08322-21064.

08322-0106B

8
Out of stock

34

NO DESCRIPTION AVAILABLE This part replaces 43980-18A50.

43980-18A51

1
Out of stock

35

GUARD SET, HEAD LAMP This part replaces 48510-18A00.

48500-18830

1
Out of stock

36

SPACER

48519-18A00

2
Out of stock

37

BOLT, REAR This part replaces 01107-06308.

01500-06307

2
Out of stock

38

2

$2.28

In stock

39

WASHER This part replaces 09160-06063.

09160-06054

2
Out of stock
