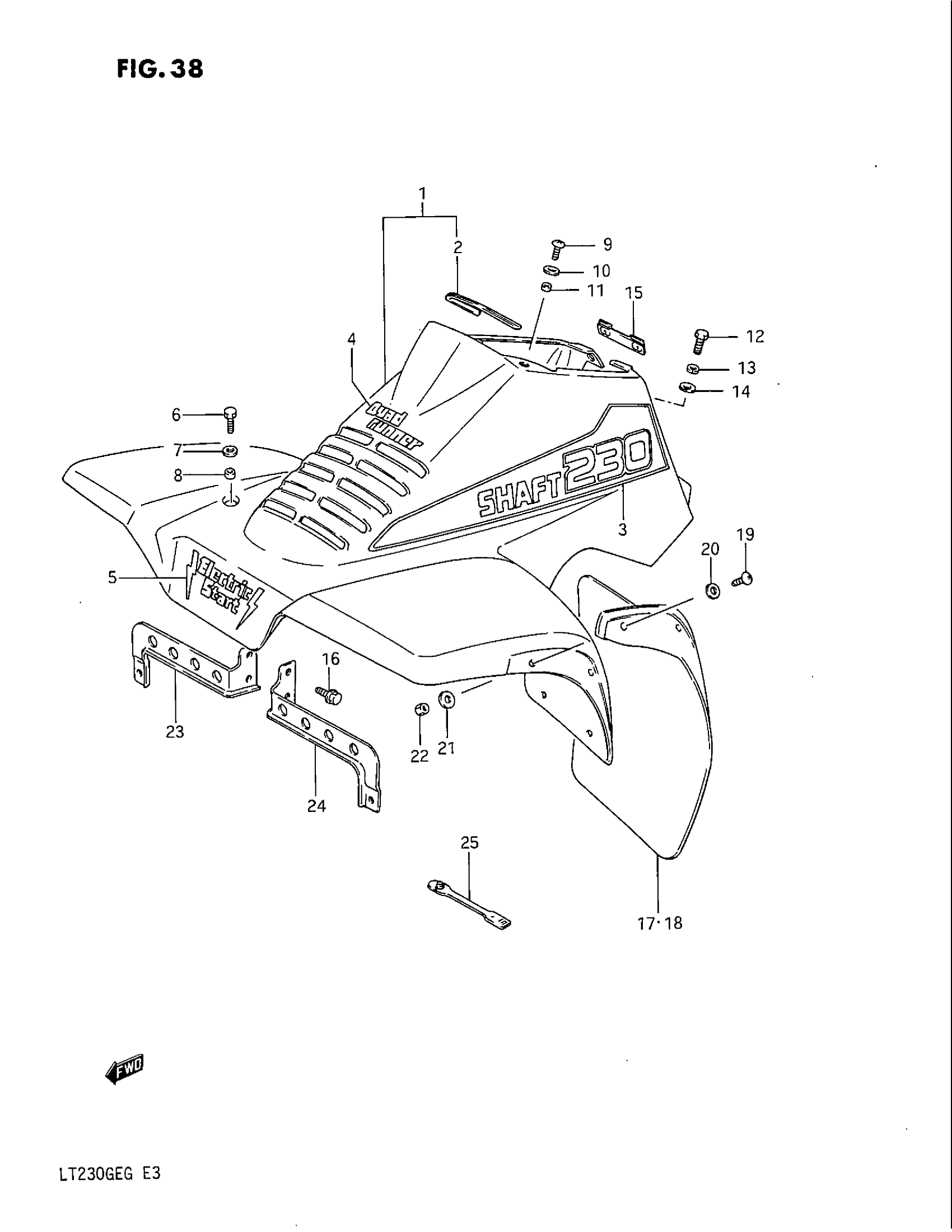

Suzuki LT230GE (1986) FRONT FENDER (MODEL F) Diagram

#

Description
Price

1

FENDER, FRONT CENTER (ORANGE) | Includes Item(s) 2

53110-18A00-00N

Unavailable

2

PROTECTOR, CABLE

58627-18A00

Unavailable

3

TAPE SET

68150-18A00-96W

Unavailable

4

EMBLEM, FENDER NAME (ORANGE) This part replaces 68233-18920-7HF.

68233-24500-20R

Unavailable

5

EMBLEM, FRONT FENDER

68151-18A00-7HF

Unavailable

6

BOLT, FENDER FRONT

01204-08207

$2.30

7

WASHER (8.5X20X1.6) This part replaces 09160-08072.

09160-08054

$1.49

8

SPACER, REAR This part replaces 09180-08110.

09180-08184

$3.16

9

SCREW This part replaces 02142-06165.

02142-0616A

$1.49

10

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06069.

09160-06052

$1.49

11

SPACER

09180-06092

$3.42

12

BOLT This part replaces 01107-06166.

01500-0616A

$1.78

13

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

14

WASHER

09169-06033

$1.50

15

PLATE, BRACE

53280-18900

Unavailable

16

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

17

MUD FLAP, RH This part replaces 53311-18A00.

53311-18A01

Unavailable

18

MUD FLAP, LH This part replaces 53312-18A00.

53312-18A01

Unavailable

19

SCREW This part replaces 02142-06165.

02142-0616A

$1.49

20

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

21

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

$1.91

22

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

23

BRACE, FRONT FENDER RH

53211-18A00

Unavailable

24

BRACE, FRONT FENDER LH

53241-18A00

Unavailable

25

CLAMP

09407-05403

$2.38
