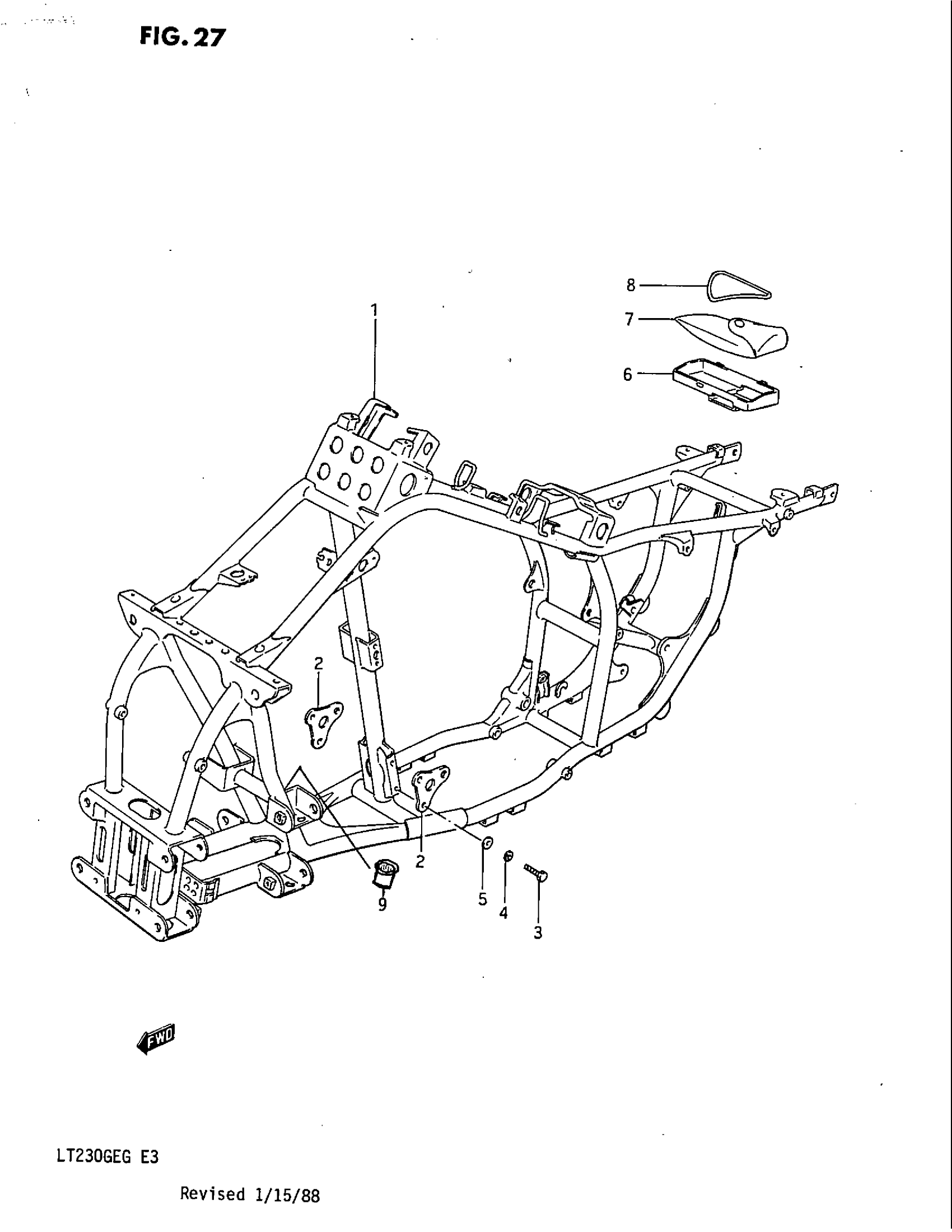

Suzuki LT230GE (1986) FRAME Diagram

#

Description

Price

1

FRAME (BLACK)

41100-18A00-019

Unavailable

2

PLATE, MOUNTING FRONT (BLACK)

41911-18A00-019

Unavailable

3

PLUG, DRAIN This part replaces 01107-08165.

01500-0816B

$2.50

4

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

5

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

6

HOLDER, TOOL

47431-18A00

Unavailable

7

TOOL ASSY This part replaces 09800-00299.

09800-21075

$44.50

8

O RING

09280-76005

$4.19

9

BUSH, STEERING SHAFT

51661-24401

Unavailable
