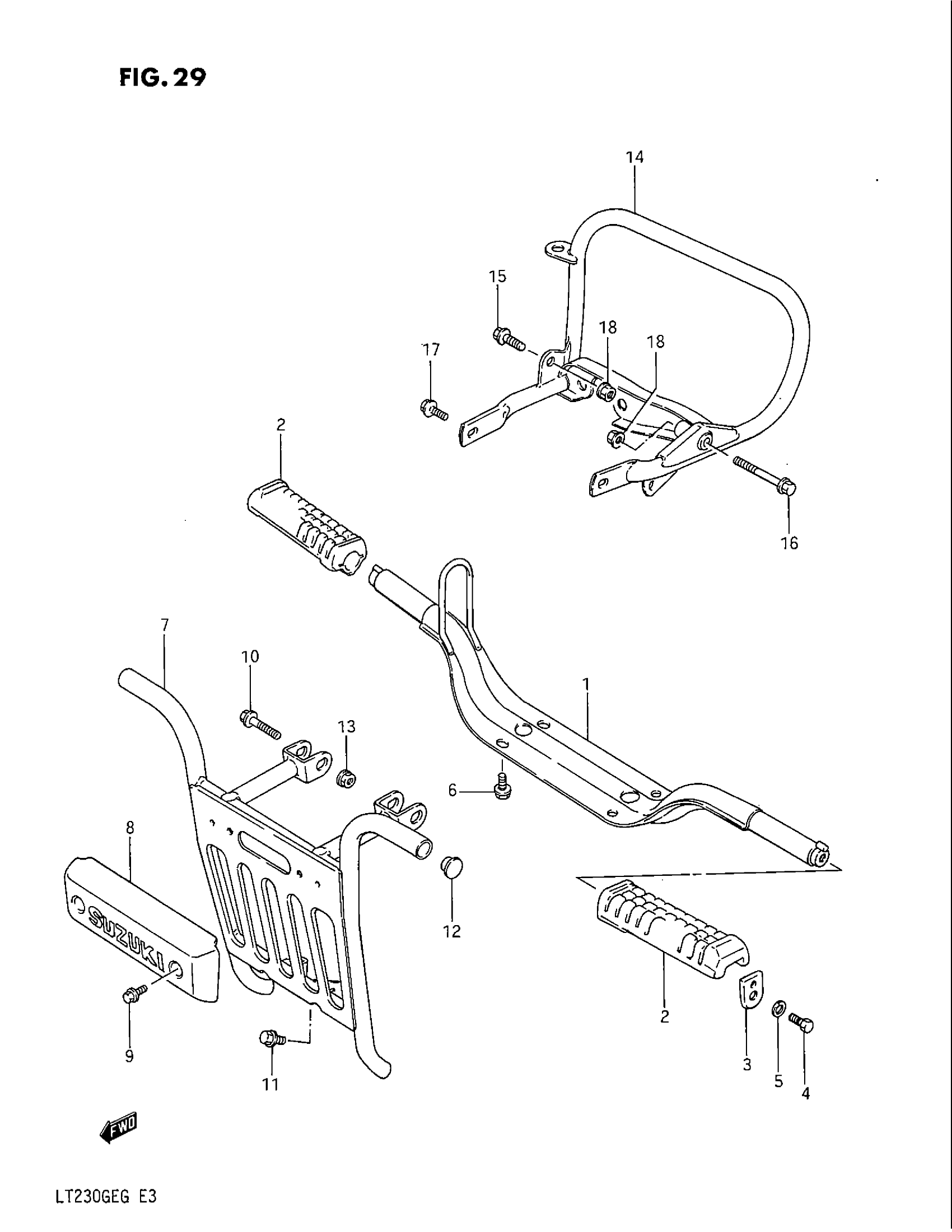

Suzuki LT230GE (1986) FOOTREST Diagram

#

Description
Price

1

BAR, FRONT FOOTREST | MODEL F

43510-18A00

Unavailable

1

BAR, FRONT FOOTREST | MODEL G

43510-18A50

Unavailable

2

RUBBER

43551-24400

Unavailable

3

STOPPER

43553-18A00

Unavailable

4

BOLT This part replaces 01104-10165.

01500-1016B

Unavailable

5

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.84

6

BOLT (8X12) This part replaces 01517-08126.

01550-0812A

$2.32

7

GRIP, FRONT

43990-18A00

Unavailable

8

RUBBER

43976-18A00

Unavailable

9

BOLT This part replaces 01517-05125.

01550-0512B

$2.87

10

BOLT This part replaces 01517-08504.

01550-0850B

$4.17

11

BOLT (8X16) This part replaces 01517-08165.

01550-0816A

$2.32

12

CAP

43978-24500

$8.42

13

NUT This part replaces 08316-16085.

08316-1008B

$2.66

14

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 43980-18A00.

43980-18A51

Unavailable

14

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 43980-18A50.

43980-18A51

Unavailable

15

BOLT This part replaces 01517-08258.

01550-08257

$2.81

16

BOLT This part replaces 01517-08558.

01550-08557

$3.74

17

BOLT M8X16 This part replaces 01517-08168.

01550-08167

$2.85

18

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26
