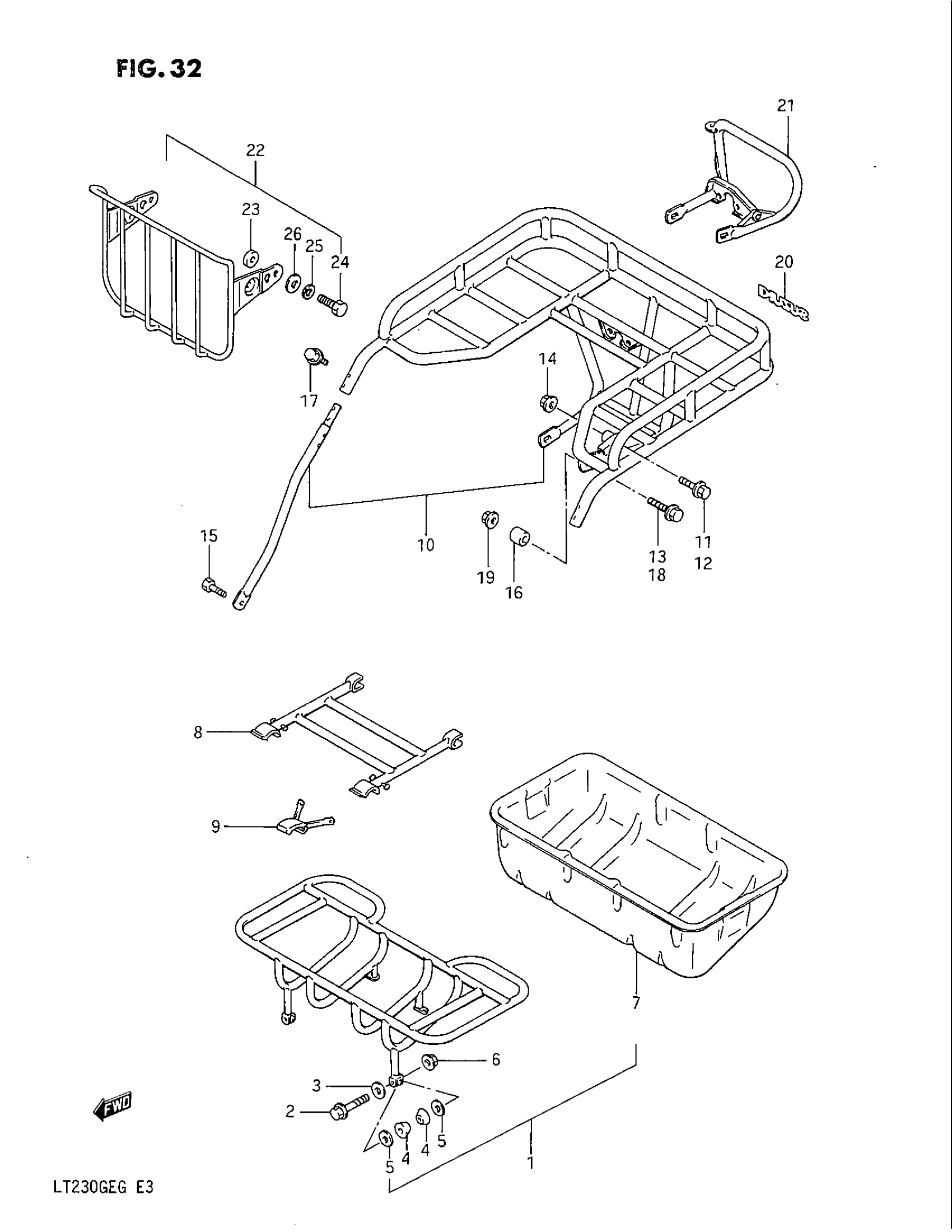

Suzuki LT230GE (1986) CARRIER (MODEL F OPT) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 46400-18830.

46400-18831

Unavailable

2

BOLT This part replaces 01107-08255.

01500-0825A

$2.19

3

WASHER (8.5X20X1.6) This part replaces 09160-08089.

09160-08054

$1.49

4

SPACER This part replaces 46441-24450.

46441-24451

Unavailable

5

WASHER (10.5X22X3.2) This part replaces 09160-10075.

09160-10125

Unavailable

6

NUT This part replaces 08316-16085.

08316-1008B

$2.66

7

PAN, FRONT CARRIER

92122-18A00

Unavailable

8

SUB CARRIER, FRONT

46340-24450

Unavailable

9

BAND

09462-00083

Unavailable

10

NO DESCRIPTION AVAILABLE | Includes Item(s) 11 - 20 This part replaces 46300-18830.

46300-18841

Unavailable

11

BOLT, REAR

09103-08065

Unavailable

12

.BOLT (8X55) This part replaces 09103-08170.

09103-08339

$3.49

13

BOLT, CENTER

09103-08172

Unavailable

14

NUT This part replaces 08319-31088.

08319-3108A

$2.32

15

BOLT This part replaces 01517-10305.

01550-1030A

$3.55

16

SPACER

09180-10100

Unavailable

17

BOLT This part replaces 01517-08304.

01550-0830A

$3.04

18

BOLT (8X20) This part replaces 09103-08102.

09103-08505

$3.58

19

NUT This part replaces 08319-31085.

08319-3108A

$2.32

20

EMBLEM

68111-46200-65H

Unavailable

21

NO DESCRIPTION AVAILABLE This part replaces 43980-18A50.

43980-18A51

Unavailable

22

GUARD SET, HEAD LAMP | Includes Item(s) 23 - 26

48500-18830

Unavailable

23

SPACER

48519-18A00

Unavailable

24

BOLT, REAR This part replaces 01107-06308.

01500-06307

$2.48

25

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

26

WASHER This part replaces 09160-06063.

09160-06054

$1.62
