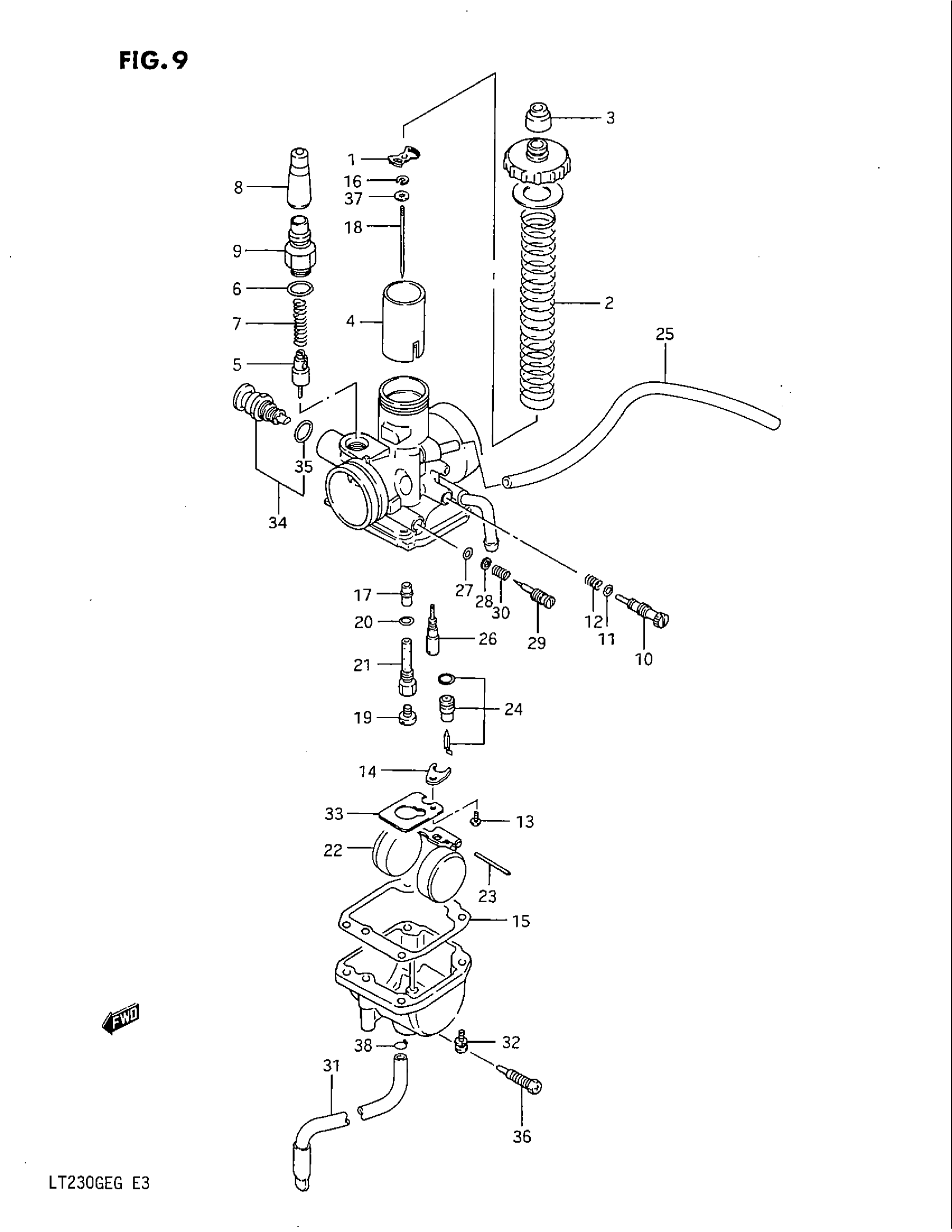

Suzuki LT230GE (1986) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | ~E.NO.103748 This part replaces 13200-18A00.

13200-18A10

Unavailable

CARBURETOR ASSY | E.NO.103749~; Includes Item(s) 1 - 38 This part replaces 13200-18A01.

13200-18A10

Unavailable

1

SPRING, SEAT

13581-09210

$6.55

2

SPRING, THROTTLE VALVE

13573-05320

Unavailable

3

.CAP This part replaces 13681-04010.

13681-04011

$4.93

4

VALVE, PISTON (CA:1.5) This part replaces 13551-18A00.

13551-19B01

Unavailable

5

PLUNGER

13411-24500

$22.41

6

O RING

13278-02330

$2.82

7

SPRING

13417-01010

$4.62

8

CAP

13681-16600

$3.77

9

CAP, PLUNGER

13418-24500

$17.68

10

SCREW

13267-24500

$10.55

11

O RING

13295-33010

$4.48

12

SPRING

13268-35010

$4.48

13

SCREW This part replaces 02112-03068.

02112-0306B

$1.59

14

PLATE

13373-46710

$6.17

15

GASKET

13251-05320

$7.69

16

E RING

13394-10010

$5.45

17

JET, NEEDLE (O-2)

09494-00436

$30.38

18

NEEDLE, JET (4JR45-4) | ~E.NO.103748 This part replaces 13383-18A00.

13383-18A01

Unavailable

18

NEEDLE, JET (4JR45-4) | E.NO.103749~

13383-18A01

Unavailable

19

JET, MAIN (115)

09491-23011

$9.63

20

.O RING This part replaces 13246-43010.

13246-43011

$4.34

21

PIPE, BLEEDER

13385-47030

Unavailable

22

FLOAT This part replaces 13252-05320.

13250-05230

$26.91

23

.PIN, FLOAT

13254-01010

$3.62

24

NEEDLE VALVE ASSY

13370-24400

Unavailable

25

HOSE,5X10X600 This part replaces 13684-18A00.

44421-13ER0

$10.06

26

JET, PILOT (17.5)

09492-17009

Unavailable

27

O-RING This part replaces 13278-44080.

13295-29901

$4.34

28

WASHER This part replaces 13277-44080.

13291-29900

$1.98

29

SCREW, PILOT (2 7/8) This part replaces 13279-47080.

13279-47070

$13.36

30

.SPRING (NT:45)

13268-47070

$4.34

31

HOSE, OVER FLOW (4.5X8X470)

13683-18A00

Unavailable

32

SCREW

13601-04148

$2.81

33

PLATE

13259-18900

$7.53

34

PLUNGER ASSY, STARTER

13439-18911

$51.93

35

O RING

13278-02330

$2.82

36

SCREW

13247-24500

Unavailable

37

WASHER

13382-47010

$3.56

38

CLIP | E.NO.103749~

13671-05A40

$3.71
