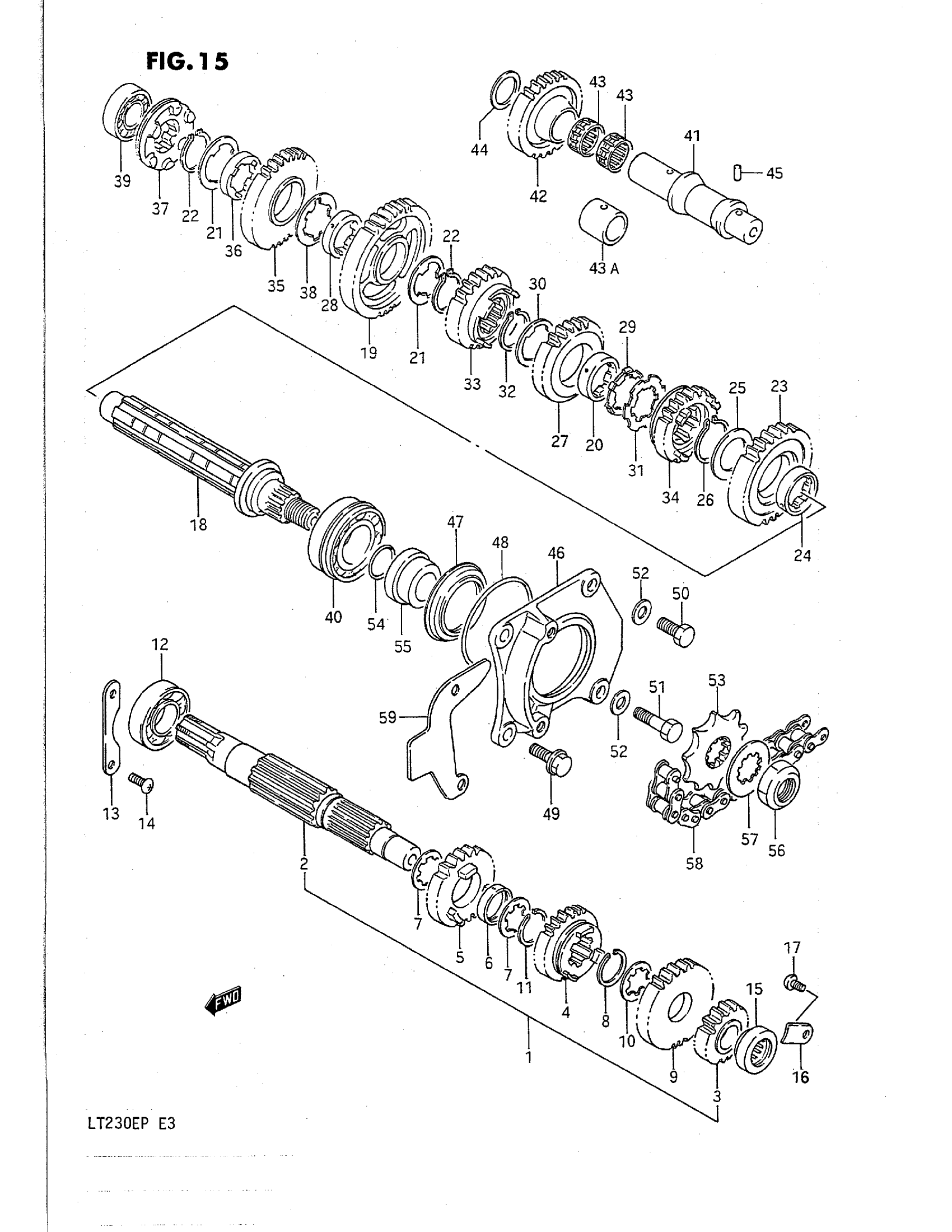

Suzuki LT230E (1993) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT ASSY | Includes Item(s) 2 - 11

24120-18A01

Unavailable

2

COUNTERSHAFT (NT:12)

24121-18A03

Unavailable

3

GEAR, 2ND DRIVE (NT:15)

24221-18A00

$115.77

4

GEAR,3RD DRIVE This part replaces 24231-18A01.

24231-18A03

$119.97

5

GEAR, 4TH DRIVE (NT:21) This part replaces 24241-18A00.

24241-18A01

$81.80

6

BUSH

09300-22008

$14.82

7

WASHER, 6TH DRIVE This part replaces 08211-22301.

09181-22167

$2.96

8

CIRCLIP

09380-22006

$3.10

9

GEAR, 5TH DRIVE (NT:23) This part replaces 24251-18A01.

24251-18A03

$108.15

10

WASHER

09167-22013

Unavailable

11

CIRCLIP

09380-22006

$3.10

12

BEARING, RH

09262-22018

$25.60

13

RETAINER

24741-18A00

Unavailable

14

SCREW This part replaces 02112-06128.

02112-06127

$1.84

15

BEARING, LH

09263-17026

$51.10

16

RETAINER

24742-18A00

$4.35

17

SCREW

02112-06087

$1.49

18

DRIVESHAFT | MODEL H

24131-35B01

Unavailable

18

DRIVESHAFT | MODEL J/K/L/M/N/P

24131-35B10

Unavailable

19

GEAR, 1ST DRIVEN (NT:37) This part replaces 24311-18A01.

24311-18A02

Unavailable

20

BUSH, 3RD DRIVEN GEAR This part replaces 24332-24500.

24332-24510

$18.67

21

LOCK WASHER

09167-25016

$3.72

22

SNAP RING

09380-25003

$3.04

23

GEAR, 2ND DRIVEN (NT:29)

24321-18A01

$113.25

24

BUSH

09300-25020

$16.87

25

WASHER

08211-25351

$3.72

26

SNAP RING

09380-25003

$3.04

27

GEAR, 3RD DRIVEN (NT:26)

24331-18A01

Unavailable

28

BUSH, 3RD DRIVEN GEAR This part replaces 24332-24500.

24332-24510

$18.67

29

LOCK WASHER

09169-25001

$2.70

30

LOCK WASHER

09167-25016

$3.72

31

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

32

SNAP RING

09380-25003

$3.04

33

GEAR, 4TH DRIVEN (NT:23) This part replaces 24341-18A01.

24341-18A02

$110.67

34

GEAR, 5TH DRIVEN (NT:21) This part replaces 24351-18A01.

24351-18A02

$110.67

35

GEAR, REVERSE DRIVEN (NT:34)

24571-18A02

Unavailable

36

BUSH,REVERSE DRIVEN GEAR

24333-18A00

Unavailable

37

DOG

24581-18A00

Unavailable

38

WASHER

09167-25017

$3.87

39

BEARING, RH

09262-20059

$25.60

40

BEARING | MODEL H

09267-30006

Unavailable

40

BEARING, LH (30X62X16) | MODEL J/K/L/M/N/P This part replaces 09262-30081.

09262-30084

$48.78

41

SHAFT, REVERSE IDLER

24551-35B10

Unavailable

42

GEAR, REVERSE IDLER (NT:29)

24561-18A02

Unavailable

43

BEARING | MODEL H/J

09263-20060

$20.73

43A

BUSH, REVERSE IDLE GEAR | MODEL K/L/M/N/P

09300-20034

Unavailable

44

THRUST WASHER

08211-20301

$2.35

45

PIN | MODEL H/J

04221-04109

Unavailable

46

RETAINER | MODEL H

24751-35B01

Unavailable

46

RETAINER | MODEL J/K/L/M/N/P

24751-35B10

$65.77

47

OIL SEAL | MODEL H

09283-40015

Unavailable

47

OIL SEAL (38X52X8) | MODEL J/K/L/M/N/P

09283-38017

$15.67

48

O RING (D:2.5,ID:71.9)

09280-70009

$4.64

49

BOLT, REAR LH This part replaces 01517-08207.

01550-08207

$2.69

50

BOLT

09100-08259

$2.23

51

BOLT

09100-08260

$2.33

52

WASHER (8.5X18X1)

09160-08043

$1.83

53

SPROCKET, ENGINE (NT:11)

27511-35B00

$20.66

54

O RING (D:2.5,ID:21)

09280-21008

$1.91

55

SPACER (L:17.3) | MODEL H

27531-35B01

Unavailable

55

SPACER (L:25.1) | MODEL J/K/L/M/N/P

27531-35B10

$44.07

56

NUT

09140-18008

$6.00

57

LOCK WASHER

09167-22012

$1.54

58

CHAIN, DRIVE (520VSX84LE) DID This part replaces 27600-01C10-084.

27600-34A40-084

$145.77

59

PLATE, FRONT CHAIN GUIDE

27641-35B00

$5.30
