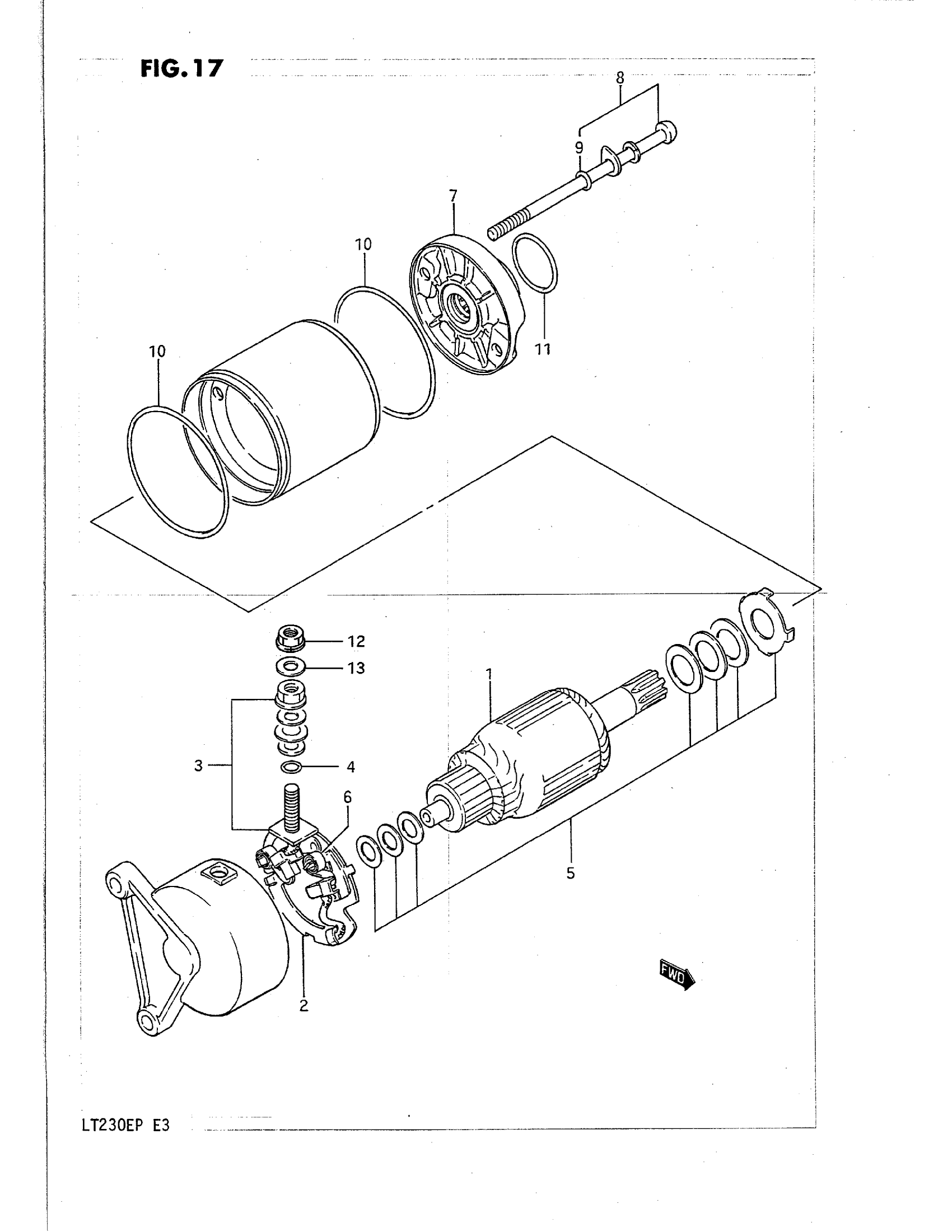

Suzuki LT230E (1993) STARTING MOTOR Diagram

#

Description
Price

MOTOR ASSY, STARTING | MODEL H

31100-35B00

Unavailable

MOTOR ASSY, STARTING | MODEL J/K/L/M This part replaces 31100-35B10.

31100-02C10

$649.60

MOTOR ASSY, STARTING | MODEL M/N/P; Includes Item(s) 1 - 10 This part replaces 31100-35B11.

31100-02C10

$649.60

1

ARMATURE | NT:9,MODEL H

31311-31300

Unavailable

1

ARMATURE | NT:10,MODEL J/K/L/M This part replaces 31311-19B11.

31311-19B12

Unavailable

1

ARMATURE (NA) | NT:10,MODEL N/P

31311-19B12

Unavailable

2

HOLDER SET, BRUSH (-) | MODEL H

31132-31300

Unavailable

2

HOLDER SET, BRUSH (-) | MODEL J/K/L/M/N/P

31132-19B10

$29.77

3

TERMINAL SET, BRUSH (+) | MODEL H

31130-31300

Unavailable

3

TERMINAL SET, BRUSH (+) | MODEL J/K/L/M/N/P

31130-19B10

$28.15

4

O RING

31143-49040

$3.71

5

SHIM SET | MODEL H

31170-31300

Unavailable

5

SHIM SET | MODEL J/K/L/M/N/P

31170-19B10

$12.57

6

SPRING, BRUSH

31135-31300

$4.96

7

BRACKET SET | MODEL H

31150-31300

Unavailable

7

BRACKET SET | MODEL J/K/L/M/N/P

31150-19B10

Unavailable

8

BOLT SET | MODEL H

31280-31300

Unavailable

8

BOLT SET | MODEL J/K/L/M/N/P

31280-19B10

Unavailable

9

O RING

31143-49040

$3.71

10

O RING This part replaces 31264-31300.

31264-32E00

$6.68

11

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

12

NUT This part replaces 08361-35066.

08361-3506A

$1.80

13

.WASHER (6.5X16X1) | MODEL H This part replaces 09160-06003.

09160-06129

$2.30
