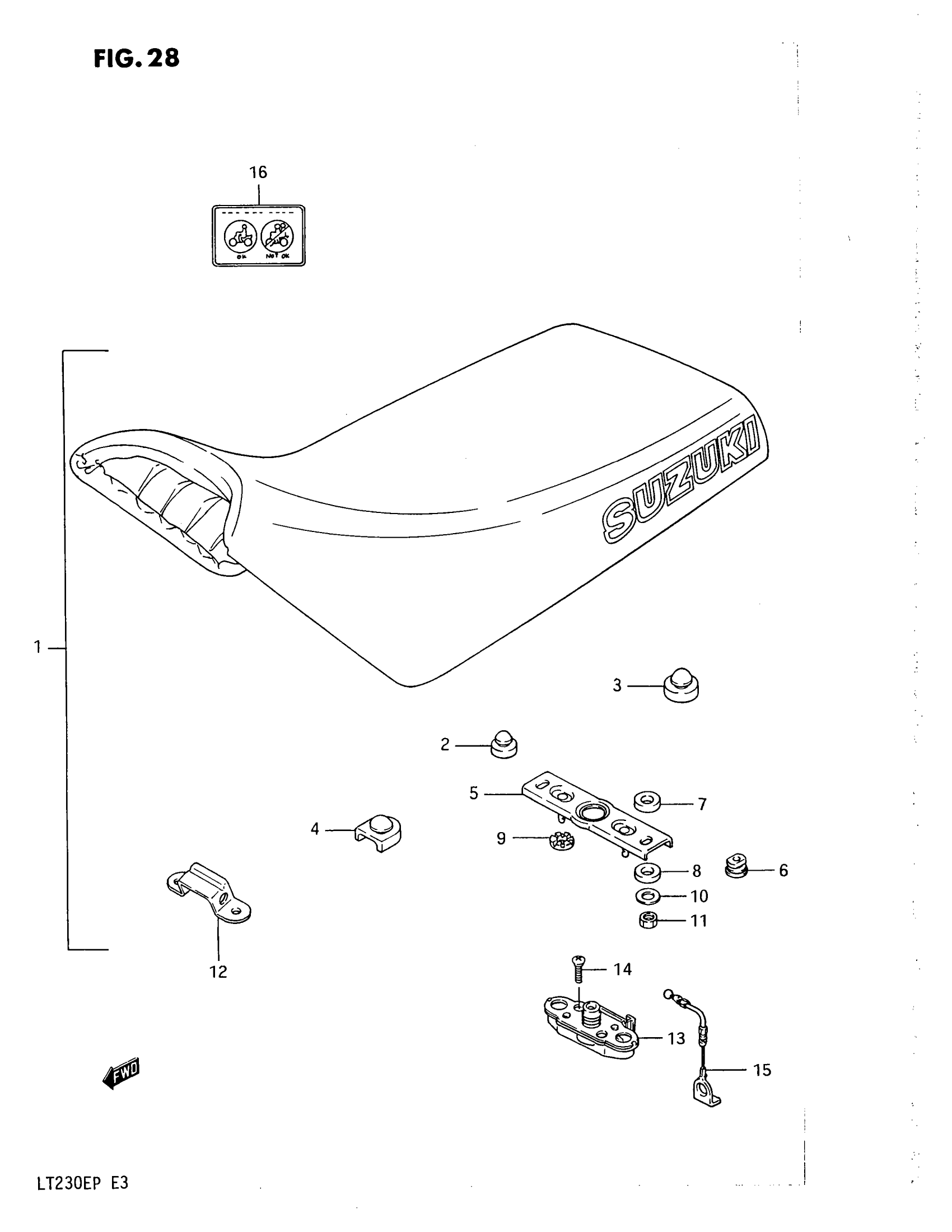

Suzuki LT230E (1993) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLUE) | MODEL H This part replaces 45100-22A10-4UZ.

45100-22A21-4UZ

Unavailable

1

SEAT ASSY (BLUE) | MODEL J This part replaces 45100-22A20-4UZ.

45100-22A21-4UZ

Unavailable

1

SEAT ASSY (BLUE) | MODEL K/L/M

45100-22A21-4UZ

Unavailable

1

SEAT ASSY (BLUE) | MODEL N This part replaces 45100-22A21-9DD.

45100-22A21-4UZ

Unavailable

1

SEAT ASSY (BLUE) | MODEL P; Includes Item(s) 2 - 11 This part replaces 45100-22A21-9MG.

45100-22A21-4UZ

Unavailable

2

CUSHION

09321-10012

$2.92

3

CUSHION

45149-24302

Unavailable

4

CUSHION

45149-19A00

Unavailable

5

STRIKER, SEAL LOCK This part replaces 45210-22A10.

45210-22A00

Unavailable

6

CUSHION | MODEL H

09320-08031

Unavailable

7

CUSHION, LOWER | MODEL J

45126-41B00

$2.38

8

CUSHION, UPPER | MODEL J

45127-41B00

$2.38

9

CUSHION

45213-43400

Unavailable

10

WASHER This part replaces 09160-06006.

09160-06084

$1.78

11

NUT This part replaces 08316-26066.

08316-1006B

$2.50

12

PLATE, SEAT FRONT HOOK

45119-22A00

Unavailable

13

BRACKET, SEAT SUPPORT

45220-22A10

$62.85

14

SCREW This part replaces 02122-06306.

02122-0630B

$2.06

15

CABLE, SEAT LOCK | MODEL H/J This part replaces 45280-35B00.

45280-35B10

Unavailable

15

CABLE, SEAT LOCK | MODEL K/L/M/N/P

45280-35B10

Unavailable

16

LABEL,WARNING This part replaces 68367-04610.

68367-04611

Unavailable
