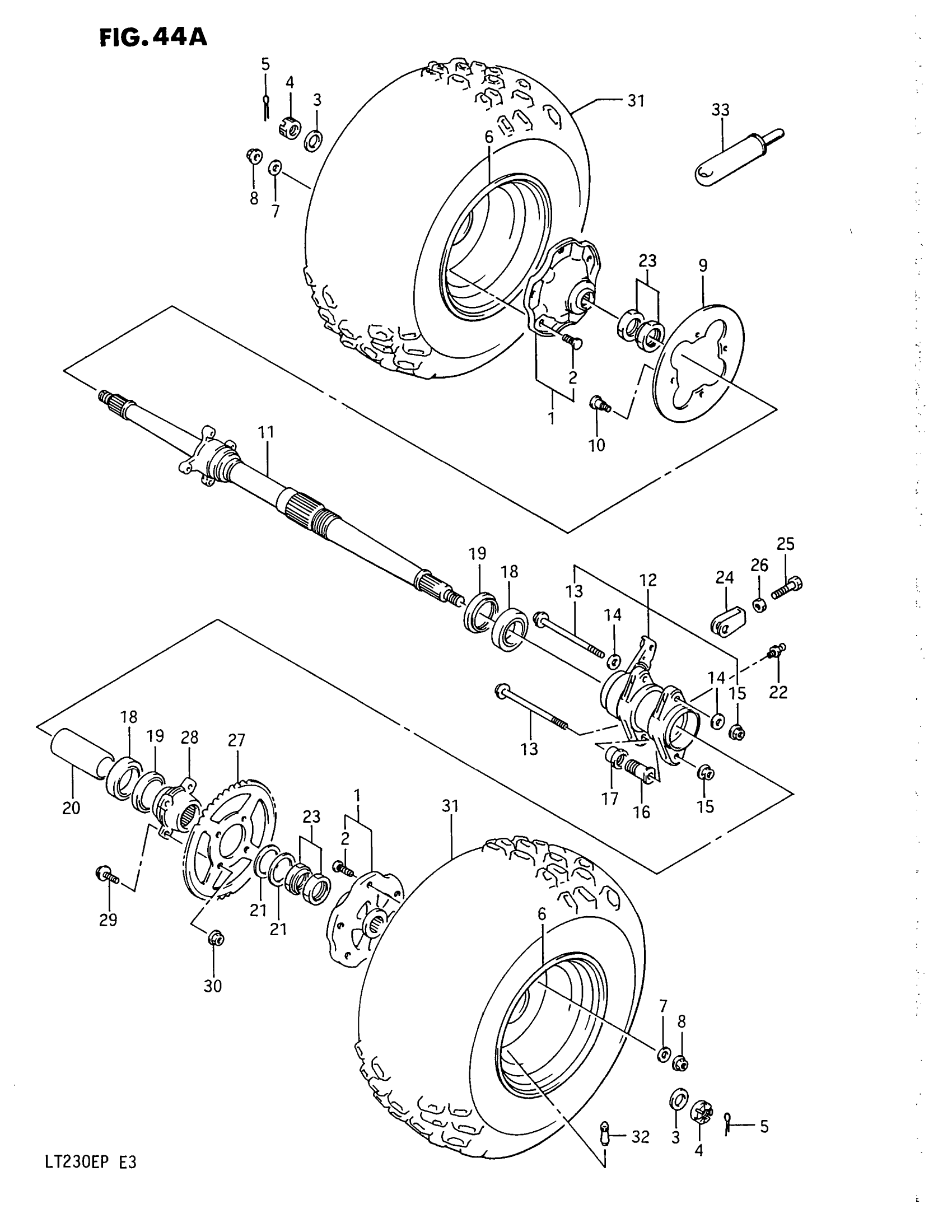

Suzuki LT230E (1993) REAR WHEEL (MODEL J/K) Diagram

#

Description
Price

1

HUB, REAR (WHITE) | MODEL J This part replaces 64110-41B00.

64110-41B10

Unavailable

1

HUB, REAR (WHITE) | MODEL K; Includes Item(s) 2

64110-41B10

Unavailable

2

BOLT

09119-10048

$3.72

3

WASHER

09164-18004

$3.76

4

NUT, HUB | MODEL J This part replaces 09141-18004.

09141-18008

$8.37

4

NUT (WHITE) | MODEL K

09141-18008

$8.37

5

PIN, COTTER | MODEL J This part replaces 04111-40356.

04111-4040A

$1.49

5

PIN, COTTER | MODEL K This part replaces 04111-40408.

04111-4040A

$1.49

6

RIM, REAR WHEEL (SILVER)

65310-41B00-13L

Unavailable

7

WASHER This part replaces 08322-21108.

08322-01107

$2.15

8

NUT This part replaces 08316-26107.

08316-2010B

$3.43

9

DISC, REAR BRAKE

69211-22A00

Unavailable

10

BOLT

09106-08076

$5.07

11

AXLE, REAR

64710-22A01

Unavailable

12

HOUSING, REAR AXLE | !64720-25C00; Includes Item(s) 13 - 17 This part replaces 64700-22821.

64720-25C00

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 09103-12032.

09103-12032-XC0

Unavailable

14

WASHER, FRONT AXLE This part replaces 09160-12012.

09160-12082

$3.29

15

NUT This part replaces 08319-31128.

08319-3112A

$3.76

16

SPACER

64741-22A00

Unavailable

17

SPACER

64742-22A00

Unavailable

18

BEARING

08123-60087

$44.10

19

DUST SEAL

09283-50006

$21.88

20

SPACER

64731-19A00

Unavailable

21

WASHER

09164-38001

$5.27

22

NIPPLE,GREASE This part replaces 08351-21008.

08351-2100A

$4.68

23

NUT

64870-19A00

$83.40

24

ADJUSTER, CHAIN

61410-35B00

$18.31

25

BOLT (8X50) This part replaces 09104-08006.

09104-08034

$3.04

26

NUT This part replaces 08310-22088.

08310-00087

$2.13

27

SPROCKET, REAR (NT:41)

64511-22A00

Unavailable

28

FLANGE

64611-22A00

Unavailable

29

BOLT

09103-10129

Unavailable

30

NUT

08319-31107

$2.73

31

TIRE, REAR (AT22X11-9) | DUNLOP This part replaces 65100-35B50.

65100-35B51

Unavailable

32

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

33

GAUGE ASSY,AIR PRESSUR | P This part replaces 96200-18A01.

96200-18A02

$58.92
