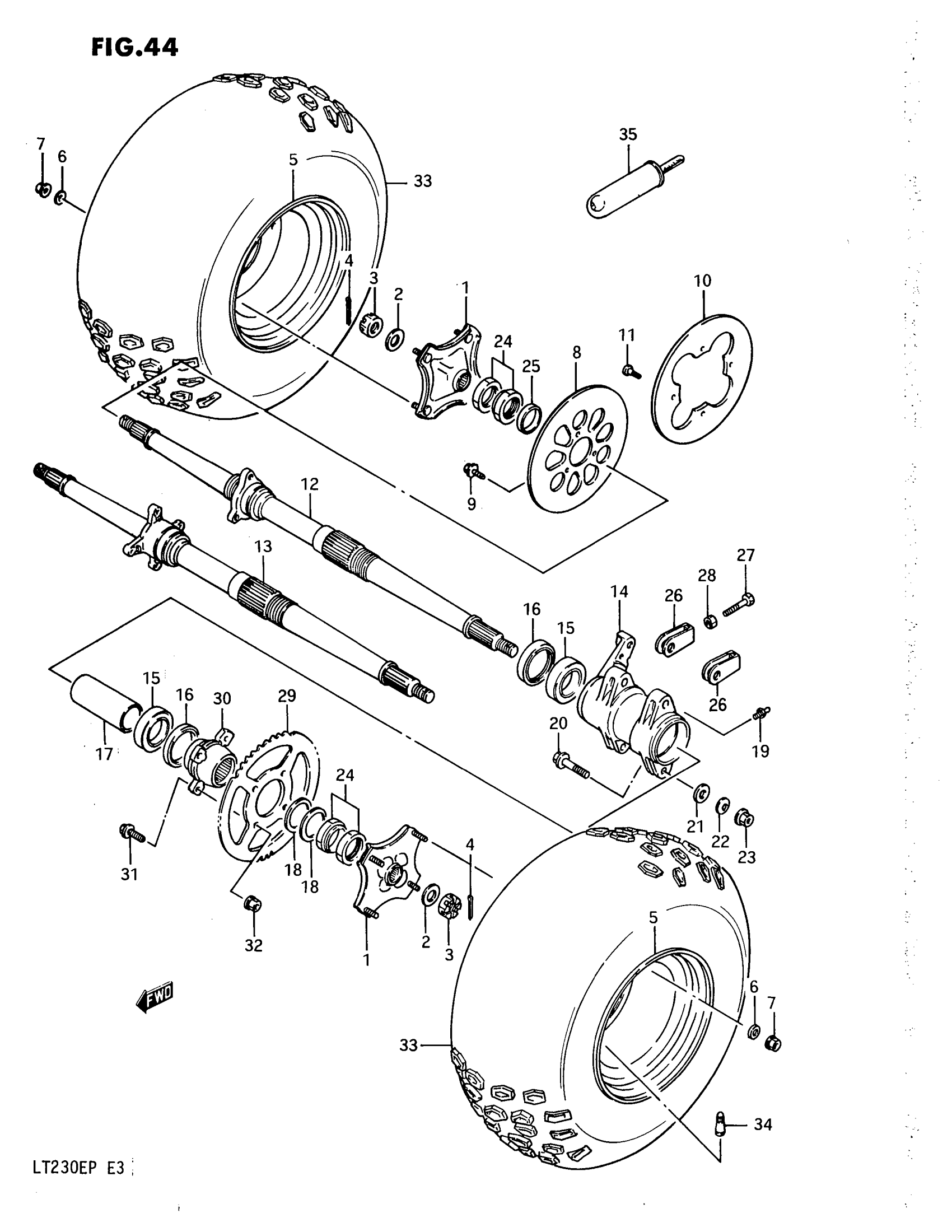

1993 Suzuki LT230E Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1993 Suzuki LT230E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki LT230E Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

64110-24511

2
Out of stock

2

WASHER

09164-18004

2
Out of stock

3

NUT, HUB This part replaces 09141-18004.

09141-18008

2
Out of stock

4

PIN, COTTER This part replaces 04111-40356.

04111-4040A

2
Out of stock

5

RIM, REAR WHEEL (SILVER)

65310-35B00-13L

2
Out of stock

6

WASHER This part replaces 08322-21108.

08322-01107

8
Out of stock

7

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

8
Out of stock

8

DISC, REAR BRAKE | FOR 64710-22A00

69211-19A01

1
Out of stock

9

BOLT | FOR 64710-22A00

09103-08147

3
Out of stock

10

DISC, REAR BRAKE | FOR 64710-22A01

69211-22A00

1
Out of stock

11

BOLT | FOR 64710-22A01

09106-08076

4
Out of stock

12

AXLE, REAR | !64710-22A01 W/69211-22A00 09106-08076 This part replaces 64710-22A00.

64710-22A01

1
Out of stock

13

AXLE, REAR

64710-22A01

1
Out of stock

14

HOUSING, REAR AXLE | !64700-22821 This part replaces 64715-35B00.

64720-25C00

1
Out of stock

15

BEARING

08123-60087

2
Out of stock

16

DUST SEAL

09283-50006

2
Out of stock

17

SPACER

64731-19A00

1
Out of stock

18

WASHER

09164-38001

2
Out of stock

19

NIPPLE,GREASE This part replaces 08351-21008.

08351-2100A

1
Out of stock

20

BOLT, HOUSING

09103-10158

4
Out of stock

21

WASHER This part replaces 09160-10028.

09160-10035

4
Out of stock

22

WASHER

09164-10008

4
Out of stock

23

NUT REFER TO FIG.44A(H-4) FOR MODE REFER TO FIG.44B(H-5) FOR MODE | P

08319-31107

4
Out of stock

24

NUT

64870-19A00

2
Out of stock

25

SPACER | FOR 64710-22A00

64214-19A00

1
Out of stock

26

ADJUSTER, CHAIN

61410-35B00

2
Out of stock

27

BOLT (8X50) This part replaces 09104-08006.

09104-08034

2
Out of stock

28

NUT This part replaces 08310-22088.

08310-00087

2
Out of stock

29

SPROCKET, REAR (NT:41)

64511-22A00

1
Out of stock

30

FLANGE

64611-22A00

1
Out of stock

31

BOLT

09103-10129

4
Out of stock

32

NUT

08319-31107

4
Out of stock

33

TIRE, REAR (AT22X11-9) | DUNLOP This part replaces 65100-35B00.

65100-35B51

2
Out of stock

34

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

2
Out of stock

35

GAUGE ASSY,AIR PRESSUR | P This part replaces 96200-18A01.

96200-18A02

1
Out of stock
