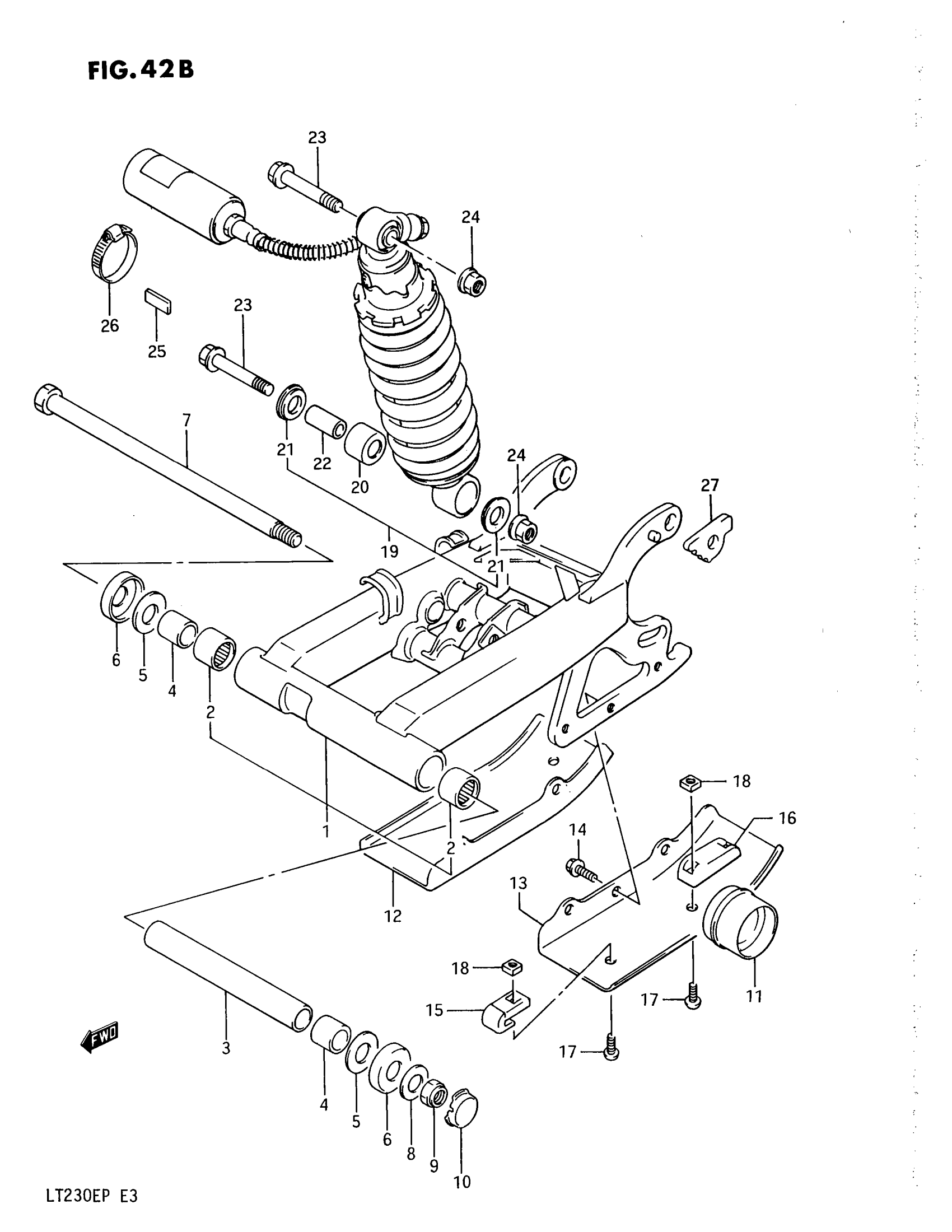

Suzuki LT230E (1993) REAR SWINGING ARM (MODEL M/N/P) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR (PEARL) | Includes Item(s) 2

61000-35B20-126

Unavailable

2

BEARING

09263-22022

$20.77

3

SPACER, CENTER

61282-22A00

Unavailable

4

SPACER

61251-22A01

Unavailable

5

THRUST WASHER

08211-15341

$2.80

6

COVER This part replaces 61262-22A00.

61262-22A01

$5.70

7

SHAFT

61211-35B00

Unavailable

8

WASHER

09160-14009

$2.80

9

NUT This part replaces 09159-14013.

09159-14019

$10.63

10

CAP (BLACK)

61222-13A00-019

Unavailable

11

BUFFER, DEFENCE

61273-22A00

$9.87

12

GUARD, DISC PLATE

61391-35B00

Unavailable

13

GUARD, SPROCKET

61392-35B01

Unavailable

14

BOLT (8X12) This part replaces 01517-08126.

01550-0812A

$2.31

15

BUFFER, GUARD

61396-19A01

$10.15

16

BUFFER, GUARD

61397-22A00

Unavailable

17

SCREW This part replaces 02142-05104.

02142-0510B

$1.77

18

NUT This part replaces 08318-11056.

08318-1105A

$0.98

19

ABSORBER ASSY, REAR SHOCK (WINNING ORANG | Includes Item(s) 20 - 22

62100-35B10-25G

Unavailable

20

BEARING

62188-01C00

Unavailable

21

SEAL, DUST

62189-01C00

$10.90

22

COLLAR

62187-35B10

Unavailable

23

BOLT (12X56)

09103-12024

Unavailable

24

NUT This part replaces 08316-16126.

08316-1012A

$2.24

25

CUSHION

62423-02B00

Unavailable

26

CLAMP This part replaces 09402-70501.

09402-70503

$20.02

27

ADJUSTER, CHAIN UPPER

61421-35B00

Unavailable
