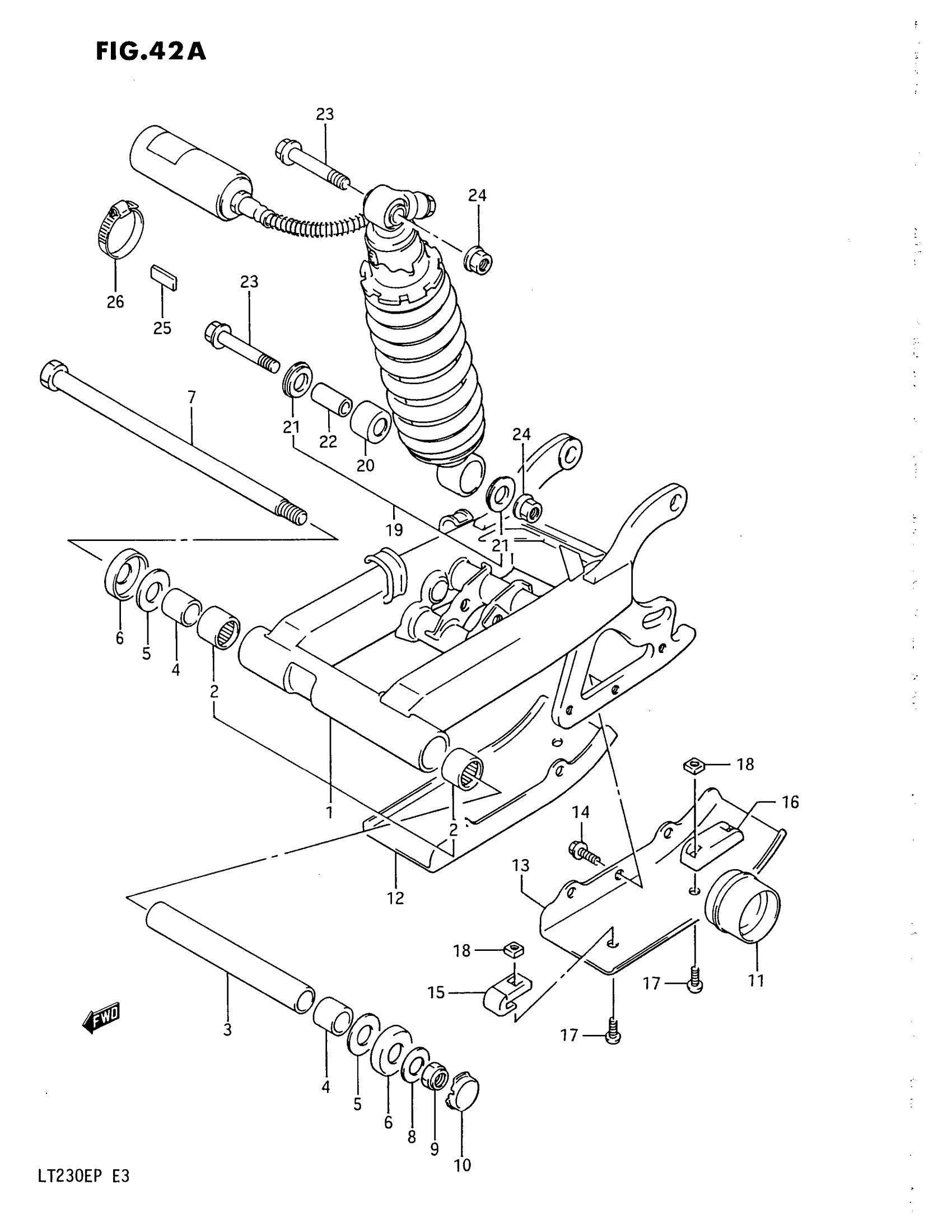

Suzuki LT230E (1993) REAR SWINGING ARM (MODEL J/K/L) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR (PEARL) | !61000-35B20-126 W/61421-35B00; Includes Item(s) 2 This part replaces 61000-35B10-126.

61000-35B20-126

Unavailable

2

BEARING

09263-22022

$22.69

3

SPACER, CENTER

61282-22A00

Unavailable

4

SPACER

61251-22A01

Unavailable

5

THRUST WASHER

08211-15341

$2.85

6

COVER This part replaces 61262-22A00.

61262-22A01

$6.05

7

SHAFT

61211-35B00

Unavailable

8

WASHER

09160-14009

$2.82

9

NUT This part replaces 09159-14013.

09159-14019

$11.61

10

CAP (BLACK)

61222-13A00-019

Unavailable

11

BUFFER, DEFENCE

61273-22A00

$10.48

12

GUARD, DISC PLATE

61391-35B00

Unavailable

13

GUARD, SPROCKET

61392-35B01

Unavailable

14

BOLT (8X12) This part replaces 01517-08126.

01550-0812A

$2.32

15

BUFFER, GUARD

61396-19A01

$8.98

16

BUFFER, GUARD

61397-22A00

Unavailable

17

SCREW This part replaces 02142-05104.

02142-0510B

$1.78

18

NUT This part replaces 08318-11056.

08318-1105A

$1.50

19

ABSORBER ASSY, REAR SHOCK (WINNING ORANG | Includes Item(s) 20 - 22

62100-35B10-25G

Unavailable

20

BEARING

62188-01C00

Unavailable

21

SEAL, DUST

62189-01C00

$9.65

22

COLLAR

62187-35B10

Unavailable

23

BOLT (12X56)

09103-12024

Unavailable

24

NUT This part replaces 08316-16126.

08316-1012A

$2.26

25

CUSHION

62423-02B00

Unavailable

26

CLAMP This part replaces 09402-70501.

09402-70503

$18.42
