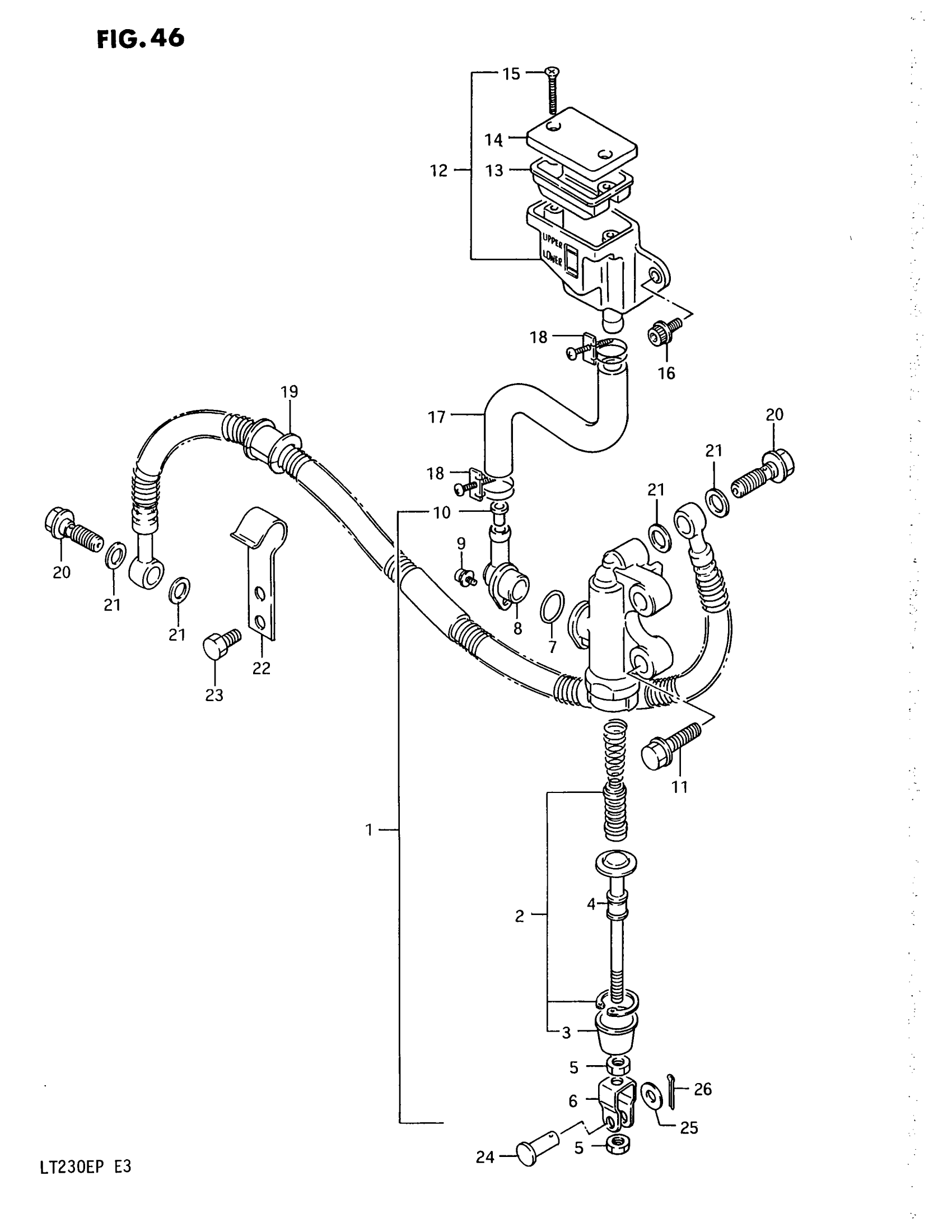

Suzuki LT230E (1993) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER (WHITE) | MODEL H/J !69600-22A01 This part replaces 69600-22A00.

69600-22A01

Unavailable

1

CYLINDER ASSY, REAR MASTER (WHITE) | MODEL K/L/M/N/P; Includes Item(s) 2 - 10

69600-22A01

Unavailable

2

.PISTON/CUP SET This part replaces 69600-16830.

69600-04821

$32.27

3

.BOOT

69691-00A00

$5.30

4

ROD, PUSH

69670-00A00

Unavailable

5

NUT | MODEL H/J

69693-05A00

$1.96

5

NUT | MODEL K/L/M/N/P This part replaces 69693-22A00.

69693-05A00

$1.96

6

YOKE | MODEL H/J

69692-19A00

$16.87

6

YOKE | MODEL K/L/M/N/P

69692-22A00

Unavailable

7

O RING

69686-34200

$2.93

8

CONNECTOR

69672-05A00

$5.56

9

.SCREW This part replaces 02112-74125.

02112-7412A

$2.12

10

CHOKE | MODEL K/L/M/N/P FOR 69600-22A01

69675-43B00

Unavailable

11

BOLT This part replaces 01517-08304.

01550-0830A

$3.04

12

TANK ASSY,RR RESERVOIR | MODEL H/J/K This part replaces 69740-27A31.

69740-01D02

$70.49

12

TANK ASSY,RR RESERVOIR | MODEL L This part replaces 69740-25C00.

69740-01D02

$70.49

12

TANK ASSY,RR RESERVOIR | MODEL M/N This part replaces 69740-01D01.

69740-01D02

$70.49

12

TANK ASSY,RR RESERVOIR | MODEL P; Includes Item(s) 13 - 15

69740-01D02

$70.49

13

DIAPHRAGM

59667-04700

$9.78

14

CAP | MODEL H/J/K This part replaces 59669-04710.

69669-24A01

$15.10

14

CAP | MODEL L/M/N

69669-24A01

$15.10

14

CAP | MODEL P

59669-05D00

$16.76

15

SCREW

69689-04A00

$1.78

16

BOLT, OIL GALLERY This part replaces 07120-06126.

07120-0612B

$3.04

17

HOSE

69731-22A10

Unavailable

18

CLAMP This part replaces 09400-16302.

09400-16304

$3.10

19

HOSE, REAR BRAKE

69480-35B01

Unavailable

20

BOLT

09360-10017

$3.42

21

WASHER (10X15X1.5)

09161-10009

$1.84

22

GUIDE, HOSE

69243-35B01

Unavailable

23

BOLT This part replaces 01107-06127.

01500-06127

$1.97

24

PIN

09200-06055

Unavailable

25

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

26

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
