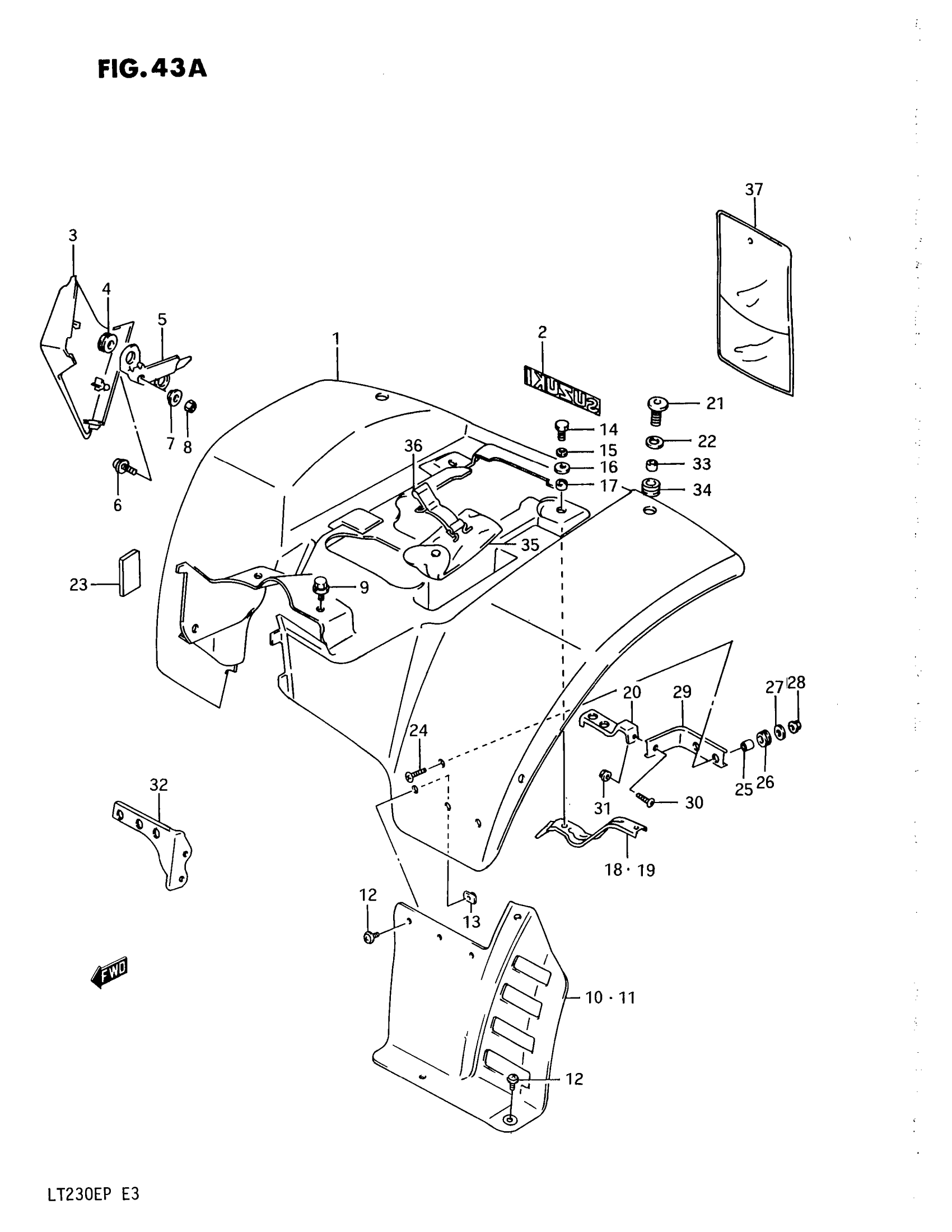

Suzuki LT230E (1993) REAR FENDER (MODEL M/N/P) Diagram

#

Description
Price

1

FENDER, REAR (WINNING ORANGE)

63111-22A20-25G

Unavailable

2

EMBLEM, SUZUKI | MODEL M/N

68174-35B00-7ZP

Unavailable

3

COVER, REAR RH(WINNING ORANGE)

63112-35B01-25G

Unavailable

4

CUSHION

09320-08018

$3.04

5

BRACKET, COUER

63113-35B01

Unavailable

6

SCREW This part replaces 02112-16168.

02142-06167

$1.49

7

WASHER This part replaces 09169-06034.

09169-06071

$2.50

8

NUT This part replaces 08310-22066.

08310-0006B

$2.34

9

BOLT, FRONT

09118-06017

$2.12

10

MUF GUARD, FRONT RH

63331-35B00

Unavailable

11

MUD GUARD, FRONT LH

63341-35B00

Unavailable

12

SCREW

09136-06004

$2.15

13

NUT This part replaces 09146-06001.

09146-06003

$2.12

14

BOLT, REAR | MODEL M This part replaces 01107-08207.

01500-08207

$2.53

14

NO DESCRIPTION AVAILABLE | MODEL N/P This part replaces 01174-08208.

01580-08207

Unavailable

15

.LOCK WASHER | MODEL M This part replaces 08321-21088.

08321-01087

$2.13

16

WASHER | MODEL M This part replaces 08322-21088.

08322-01087

$2.13

17

SPACER, REAR This part replaces 09180-08110.

09180-08184

$3.16

18

REINFORCEMENT, REAR RH

63120-22A10

Unavailable

19

REINFORCEMENT, REAR LH

63130-22A10

Unavailable

20

REINFORCEMENT, FRONT LH

63151-35B00

Unavailable

21

BOLT, REAR

09106-08086

Unavailable

22

WASHER This part replaces 09160-08067.

09160-08151

$1.99

23

CUSHION This part replaces 63411-35B00.

51827-01A00

$6.17

24

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

25

SPACER (6.5X9X10.5) This part replaces 09180-06090.

09180-06264

$2.23

26

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

27

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

$1.91

28

NUT This part replaces 08316-26066.

08316-1006B

$2.50

29

REINFORCEMENT, FRONT LH

63152-22A00

Unavailable

30

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

31

NUT This part replaces 08316-26066.

08316-1006B

$2.50

32

REINFORCEMENT, FRONT RH

63141-22A00

Unavailable

33

SPACER

09180-08141

$3.12

34

CUSHION, PILLION SEAT This part replaces 09320-15007.

09320-15008

$3.89

35

TOOL ASSY This part replaces 09800-20004.

09800-21075

$44.50

36

BAND

09462-00084

Unavailable

37

BAG, MANUAL

94980-25C00

Unavailable
