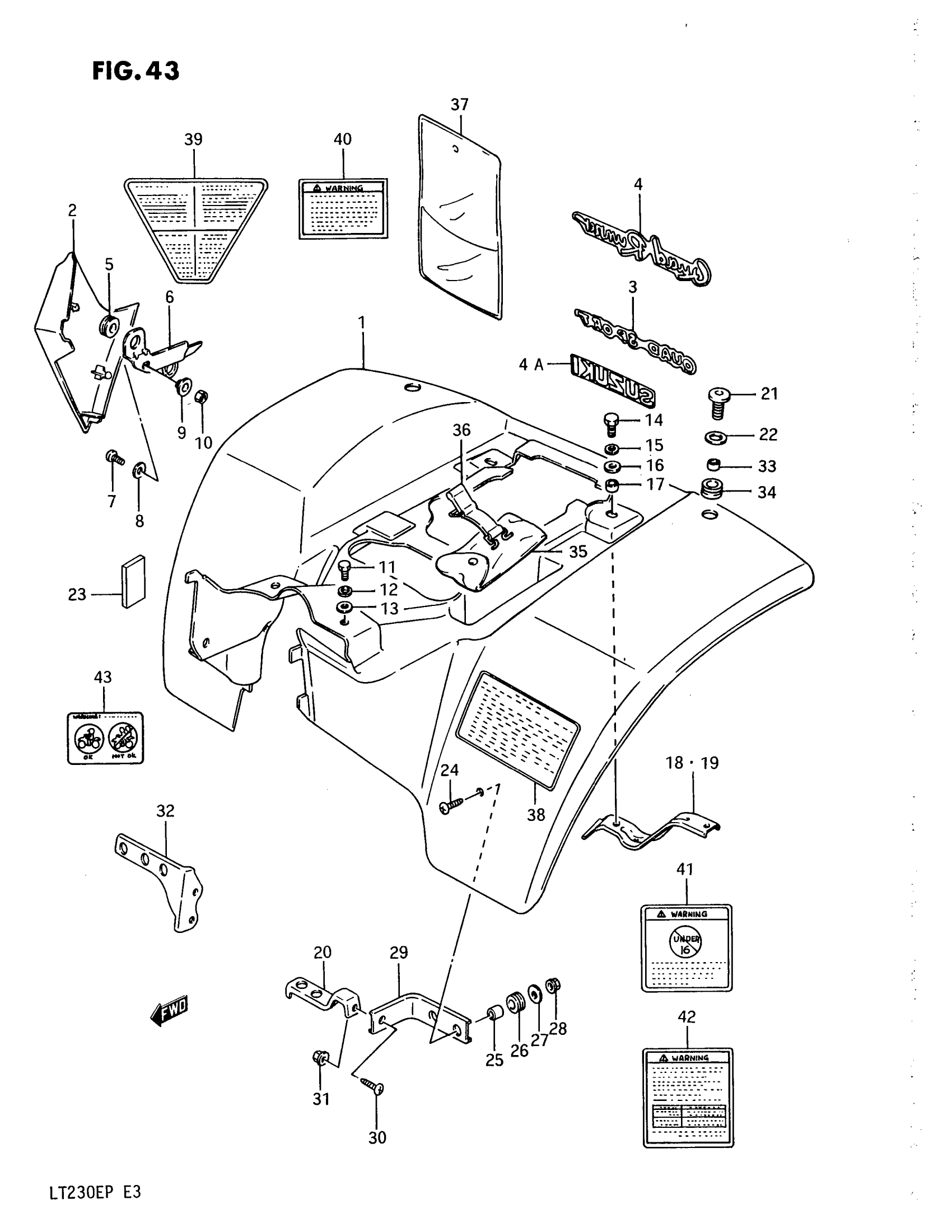

Suzuki LT230E (1993) REAR FENDER (MODEL H/J/K/L) Diagram

#

Description
Price

1

FENDER, REAR (WINNING ORANGE)

63111-22A11-25G

Unavailable

2

COVER, REAR RH(WINNING ORANGE)

63112-35B01-25G

Unavailable

3

EMBLEM, QUAD RUNNER | MODEL H

68233-35B00-9AJ

Unavailable

4

EMBLEM, QUAD RUNNER | MODEL J

68171-35B00-9AJ

Unavailable

4A

EMBLEM, SUZUKI | MODEL L

68174-35B00-7ZP

Unavailable

5

CUSHION

09320-08018

$3.04

6

BRACKET, COUER

63113-35B01

Unavailable

7

SCREW

02112-06167

$1.49

8

WASHER This part replaces 08322-21067.

08322-01067

$2.13

9

WASHER This part replaces 09169-06034.

09169-06071

$2.50

10

NUT This part replaces 08310-22066.

08310-0006B

$2.34

11

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

12

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

13

WASHER This part replaces 09160-06006.

09160-06084

$1.78

14

BOLT, REAR This part replaces 01107-08207.

01500-08207

$2.53

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

16

WASHER This part replaces 08322-21088.

08322-01087

$2.13

17

SPACER, REAR This part replaces 09180-08110.

09180-08184

$3.16

18

REINFORCEMENT, REAR RH

63120-22A10

Unavailable

19

REINFORCEMENT, REAR LH

63130-22A10

Unavailable

20

REINFORCEMENT, FRONT LH

63151-35B00

Unavailable

21

BOLT, REAR | MODEL K/L

09106-08086

Unavailable

22

WASHER | MODEL K/L This part replaces 09160-08067.

09160-08151

$1.99

23

CUSHION | MODEL J/K/L This part replaces 63411-35B00.

51827-01A00

$6.17

24

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

25

SPACER (6.5X9X10.5) This part replaces 09180-06090.

09180-06264

$2.23

26

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

27

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

$1.91

28

NUT This part replaces 08316-26066.

08316-1006B

$2.50

29

REINFORCEMENT, FRONT LH

63152-22A00

Unavailable

30

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

31

NUT This part replaces 08316-26066.

08316-1006B

$2.50

32

REINFORCEMENT, FRONT RH

63141-22A00

Unavailable

33

SPACER

09180-08141

$3.12

34

CUSHION, PILLION SEAT This part replaces 09320-15007.

09320-15008

$3.89

35

TOOL ASSY | MODEL H This part replaces 09800-00350.

09800-21075

$44.50

35

TOOL ASSY | MODEL J/K/L This part replaces 09800-20004.

09800-21075

$44.50

36

BAND

09462-00084

Unavailable

37

BAG,OWNER'S MAN | MODEL H/J/K This part replaces 94980-19002.

94980-19022

$5.62

37

BAG, MANUAL | MODEL L

94980-25C00

Unavailable

38

LABEL, WARNING | MODEL H/J

68366-35B10-7ZS

Unavailable

38

LABEL, WARNING MAIN | MODEL K/L This part replaces 68366-25C00.

68366-20B50

Unavailable

39

LABEL, NOTICE CHOKE LIMITER This part replaces 68366-35B00-7ZS.

68341-02C00

$8.18

40

LABEL, WARNING | MODEL L

68367-04620

Unavailable

41

LABEL, WARNING | MODEL L

68367-25C00

Unavailable

42

LABEL, TIRE AIR PRESSURE

68332-35B20

Unavailable

43

LABEL,WARNING | MODEL H/J/K This part replaces 68367-04610.

68367-04611

Unavailable
