1993 Suzuki LT230E Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 1993 Suzuki LT230E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

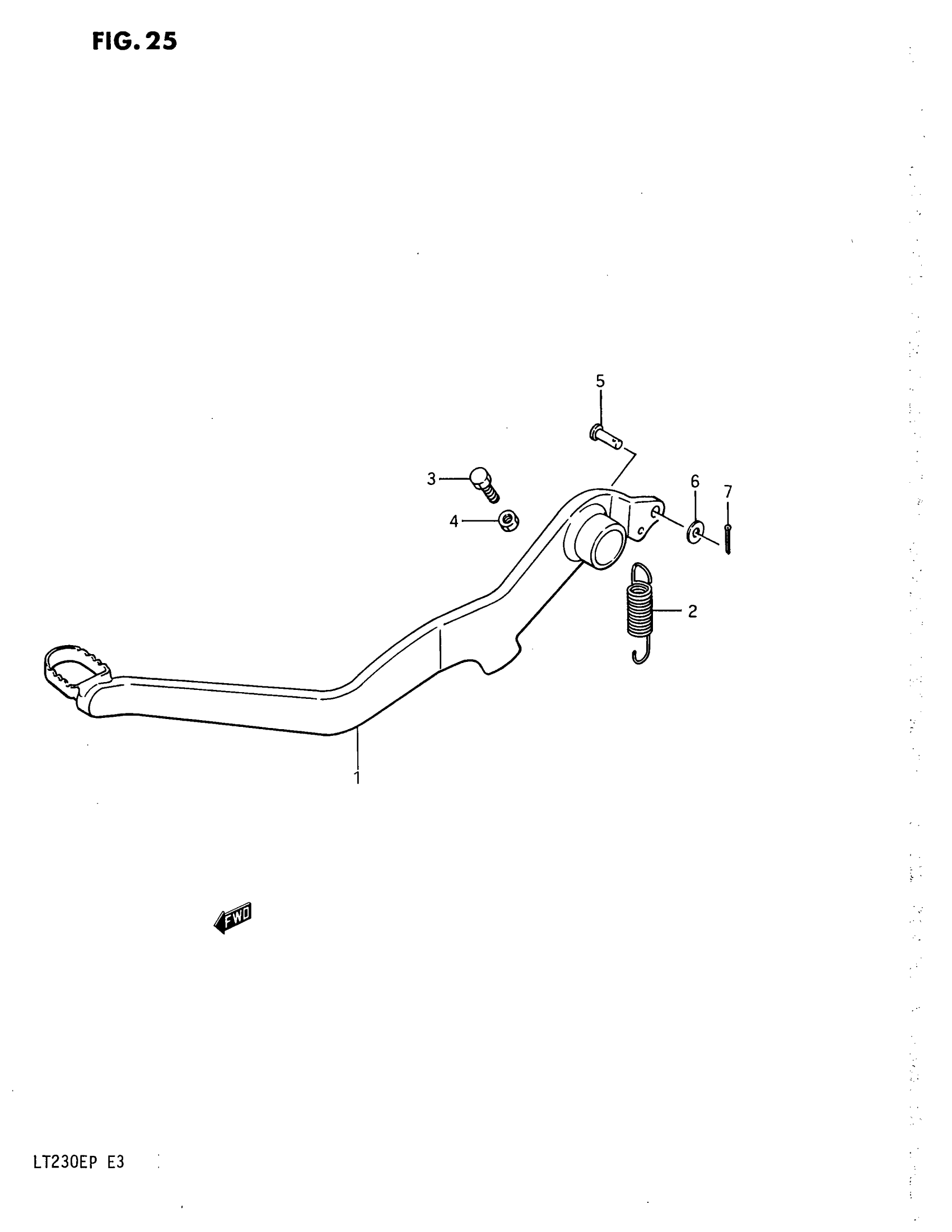

1993 Suzuki LT230E Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 43110-35B00.

43110-35B10

1
Out of stock

2

SPRING

09443-14025

1
Out of stock

3

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

1
Out of stock

4

NUT This part replaces 08310-11065.

08310-0006A

1
Out of stock

5

PIN

09200-06055

1
Out of stock

6

.WASHER This part replaces 08322-21066.

08322-0106B

1
Out of stock

7

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock
