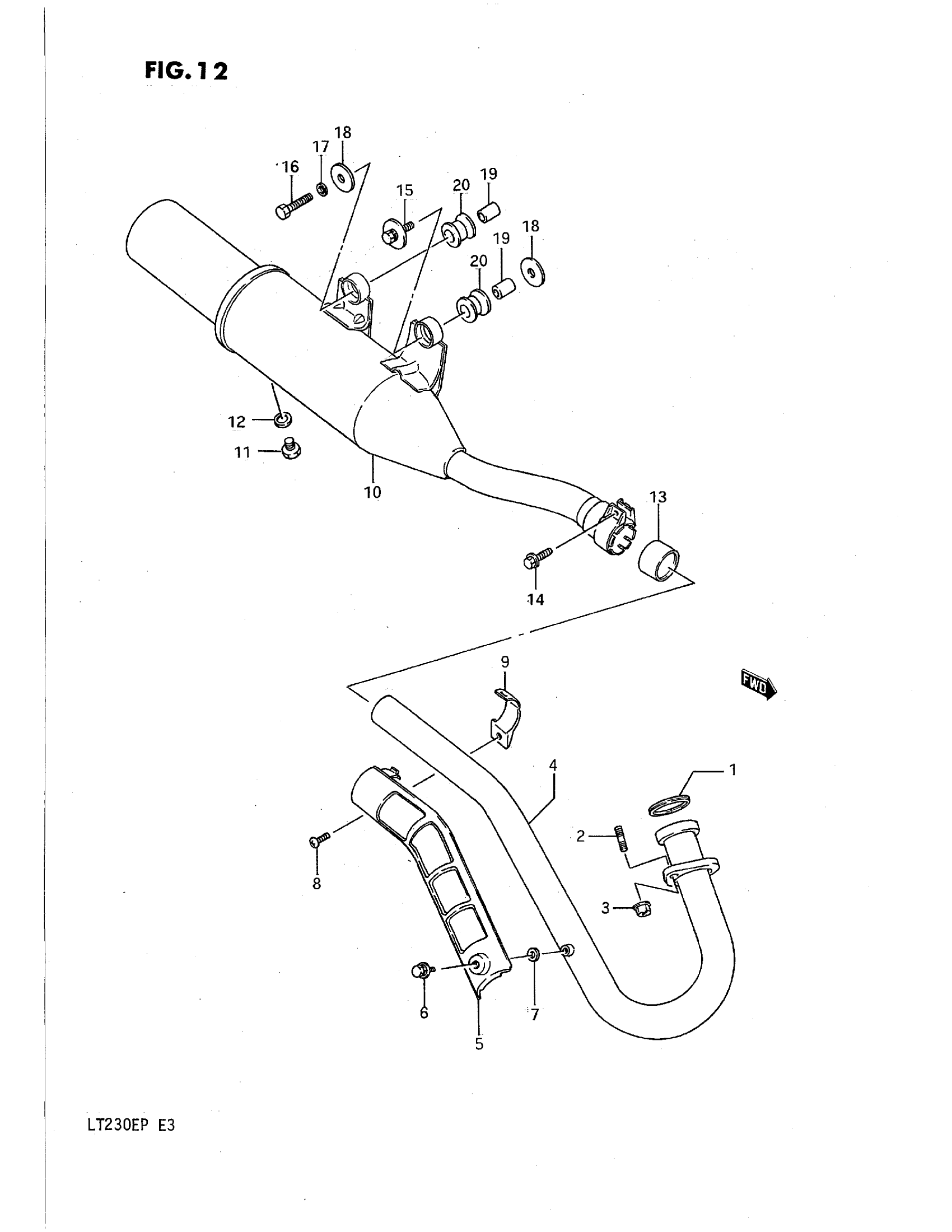

Suzuki LT230E (1993) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE | MODEL J/K/L/M/N This part replaces 14181-12010.

14181-42A00

$10.93

1

GASKET, EXHAUST PIPE | MODEL P This part replaces 14181-19B00.

14181-42A00

$10.93

2

STUD BOLT This part replaces 01421-08205.

01421-0820A

$1.91

3

NUT This part replaces 08361-15085.

08361-1508A

$2.02

4

PIPE, EXHAUST

14150-35B01

Unavailable

5

COVER, EXHAUST PIPE

14180-35B00

Unavailable

6

BOLT This part replaces 01177-06105.

01580-0610A

$2.90

7

GASKET, MUFFLER COVER This part replaces 09168-06020.

09168-06120

$2.92

8

SCREW This part replaces 02112-06205.

02112-0620A

$1.49

9

CLAMP

14185-18A01

Unavailable

10

MUFFLER | FOR 01517-06205 This part replaces 14310-35B01.

14310-35B02

Unavailable

10

MUFFLER | FOR 01517-08205

14310-35B02

Unavailable

11

PLUG, DRAIN

09247-12103

$2.84

12

GASKET

09168-12002

$1.59

13

GASKET | MODEL J/K/L/M/N This part replaces 14773-14201.

14773-14202

$23.17

13

GASKET | MODEL P

14773-14202

$23.17

14

BOLT | FOR 14310-35B01 This part replaces 01517-06204.

01550-0620A

$1.97

14

BOLT | FOR 14310-35B02 This part replaces 01517-08205.

01550-0820A

$2.23

15

NO DESCRIPTION AVAILABLE This part replaces 09118-08072.

09118-08154

Unavailable

16

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

17

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

18

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

19

SPACER (8.5X12X18.5) This part replaces 09180-08127.

09180-08195

$3.87

20

CUSHION

09320-12043

$7.98
