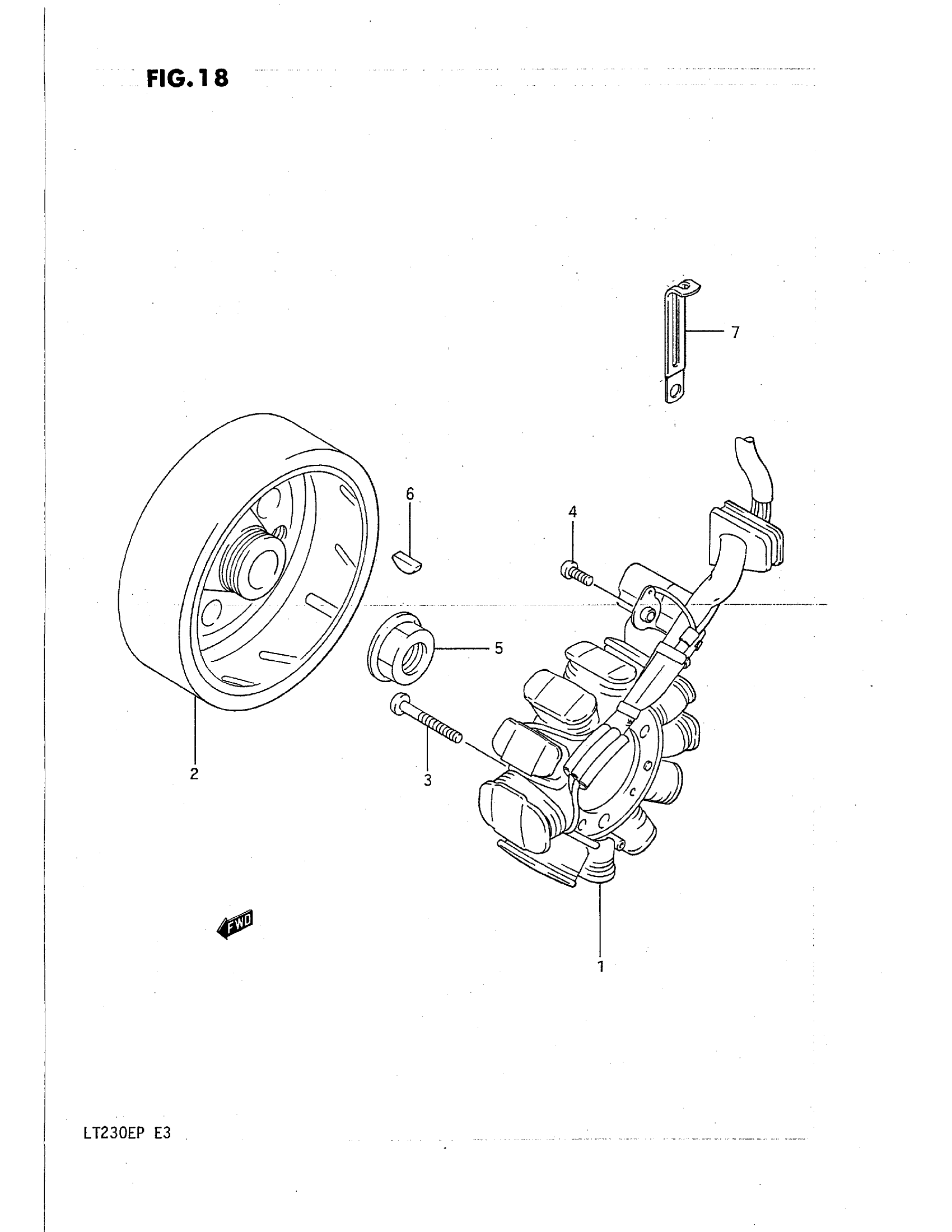

Suzuki LT230E (1993) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY

32101-18A00

Unavailable

2

ROTOR | MODEL H

32102-18A00

Unavailable

2

ROTOR | MODEL J/K/L/M/N/P

32102-35B00

Unavailable

3

SCREW This part replaces 32395-18A00.

09125-05130

Unavailable

4

SCREW

02112-04107

$1.55

5

NUT

31792-18A00

$11.87

6

KEY

08341-31039

$1.89

7

CLAMP This part replaces 09404-06413.

09404-06039

$1.74
