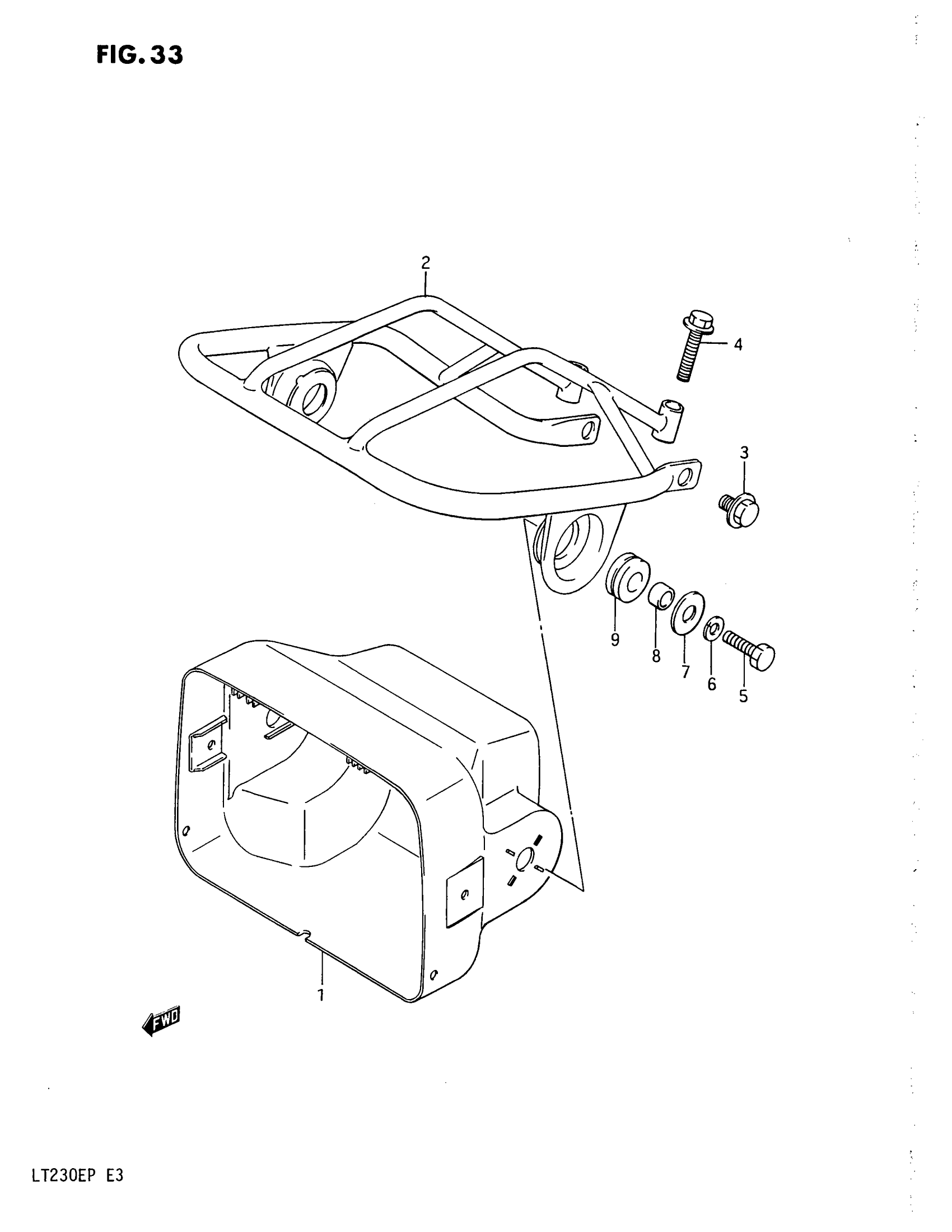

Suzuki LT230E (1993) HEADLAMP HOUSING Diagram

#

Description
Price

1

HOUSING, HEADLAMP (BLACK)

51810-18A01-291

Unavailable

2

BRACKET, HEADLAMP

51530-22A00

Unavailable

3

BOLT (8X12) This part replaces 01517-08125.

01550-0812A

$2.32

4

BOLT This part replaces 01517-08304.

01550-0830A

$3.04

5

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.78

6

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

7

WASHER This part replaces 09160-06063.

09160-06054

$1.62

8

SPACER | MODEL H/J/K

09180-06103

Unavailable

8

SPACER (6.5X9X9) | MODEL L/M/N/P This part replaces 09180-06011.

09180-06263

$2.03

9

CUSHION (8.5X20X8) | MODEL H/J/K This part replaces 09320-08007.

09320-08510

$1.97

9

CUSHION | MODEL L/M/N/P

09320-09002

$1.98
