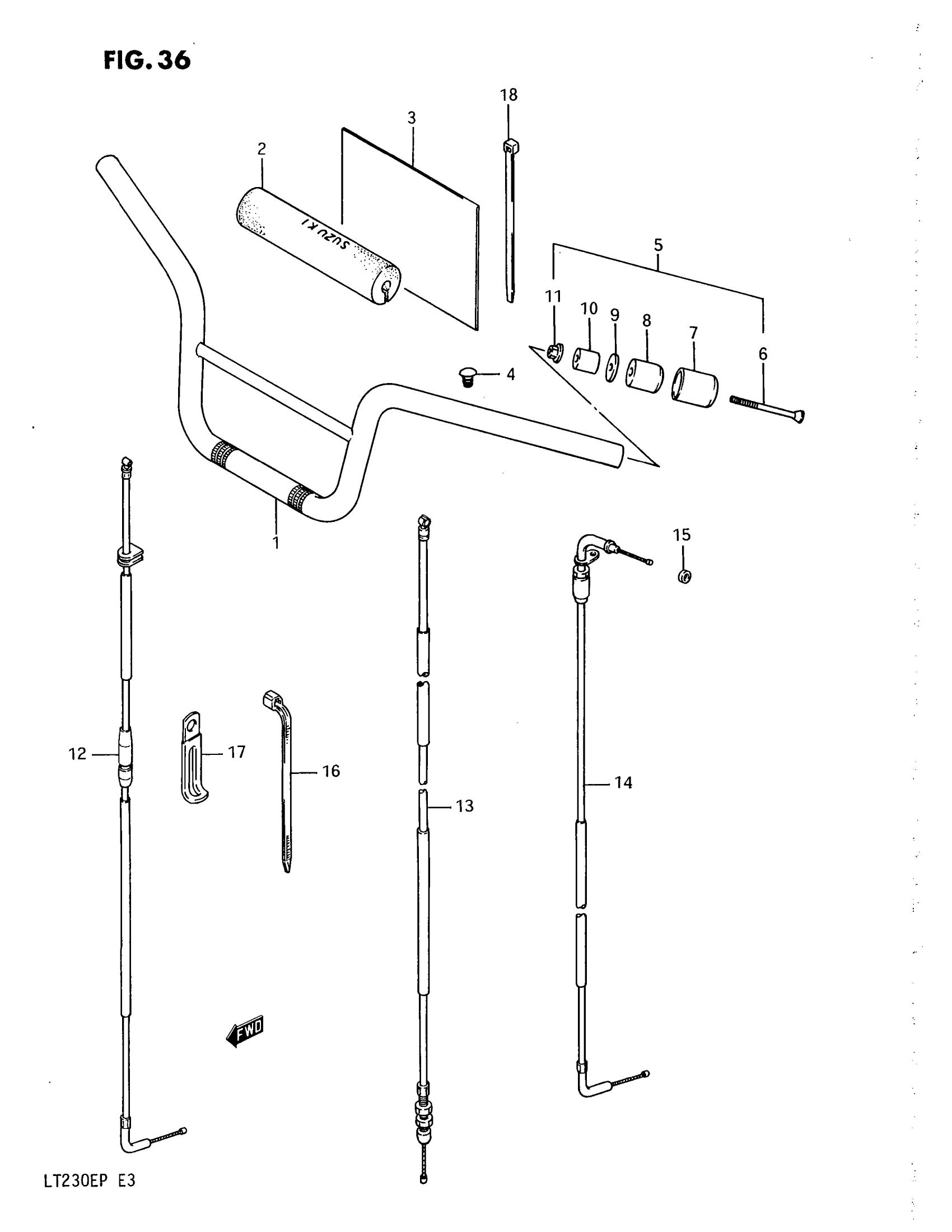

Suzuki LT230E (1993) HANDLEBAR - CONTROL CABLE Diagram

#

Description
Price

1

HANDLEBAR (BLACK)

56110-35B00-291

Unavailable

2

PAD, CROSS | MODEL H This part replaces 56172-24510.

56172-24500

$16.35

2

PAD, CROSS BAR (OD:30) | MODEL J/K/L/M/N/P

56172-35B00

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 56180-24500-4UZ.

56180-03420-4UZ

Unavailable

4

CAP This part replaces 09250-09001.

09250-09008

$1.54

5

BALANCER SET, HANDLEBAR | Includes Item(s) 6 - 11 This part replaces 56200-35820.

56200-26850

Unavailable

6

SCREW This part replaces 02132-06655.

02122-0665B

$2.76

7

CAP This part replaces 56274-05350.

56274-31300

Unavailable

8

BALANCER

56271-49400

Unavailable

9

SPACER This part replaces 56275-34400.

56275-34401

$4.02

10

EXPANDER

56272-04700

$5.40

11

NUT

09159-06024

$2.11

12

CABLE ASSY, THROTTLE

58300-35B01

Unavailable

13

CABLE, REAR BRAKE

58510-35B00

Unavailable

14

CABLE, STARTER This part replaces 58410-35B00.

58410-35B01

Unavailable

15

WASHER This part replaces 09161-05015.

09320-06503

$2.63

16

CLAMP (L:125) | MODEL H

09407-14403

$2.26

16

CLAMP (L:125) | MODEL J/K

09407-14403

$2.26

16

CLAMP (L:165) BLACK | MODEL L/M/N/P

09407-18402

$2.19

16

CLAMP | MODEL J/K/L This part replaces 09407-18403.

09407-18402

$2.19

17

CLAMP This part replaces 09404-08402.

09404-08420

$3.16

18

CLAMP (L:145)

09407-14407

$3.57
