1993 Suzuki LT230E Fuel Tank Diagram

← All diagrams

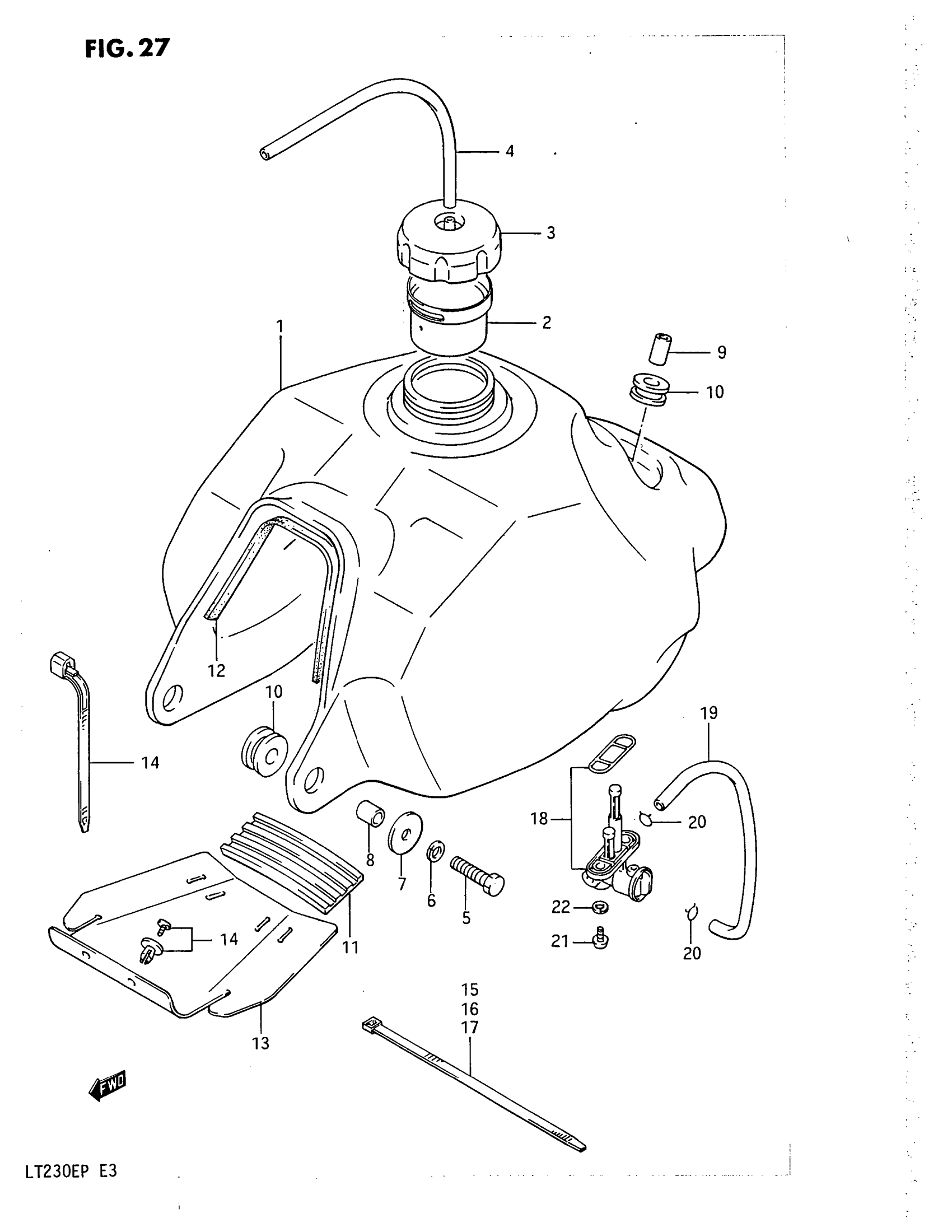

Find the part on the Fuel Tank diagram for your 1993 Suzuki LT230E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki LT230E Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL

44110-22A00

1
Out of stock

2

TUBE, FILLER INLET

44199-19A00

1
Out of stock

3

CAP, FUEL TANK

44200-19A01

1
Out of stock

4

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

5

BOLT | MODEL H/J/K/L/M This part replaces 01107-08358.

01500-0835B

2
Out of stock

5

BOLT | MODEL N/P

09118-08121

2
Out of stock

6

2

$2.28

In stock

7

WASHER, MUFFLER SUPPORT This part replaces 09160-08001.

09160-08503

2
Out of stock

8

SPACER 8.2X12X1 This part replaces 09180-08032.

09180-08143

2
Out of stock

9

SPACER,6.5X10X2 This part replaces 09180-06115.

09180-06297

2
Out of stock

10

CUSHION

09320-12016

4
Out of stock

11

CUSHION

44541-14500

1
Out of stock

12

.RUBBER, FUEL TANK FR

44261-22A00

1
Out of stock

13

MUD GUARD, CLEANER INLET | MODEL H/J/K This part replaces 47157-22A00.

47157-22A01

1
Out of stock

13

MUD GUARD, CLEANER INLET | MODEL L/M/N/P

47157-22A01

1
Out of stock

14

CLIP This part replaces 09409-07305.

09409-07305-5PK

2
Out of stock

15

CLAMP

09407-14403

2
Out of stock

16

CLAMP This part replaces 09407-20402.

09407-25402

1
Out of stock

17

CLAMP

09407-30401

1
Out of stock

18

COCK ASSY, FUEL | MODEL H/J This part replaces 44300-22A00.

44300-22A01

1
Out of stock

18

COCK ASSY, FUEL | MODEL K/L/M/N/P

44300-22A01

1
Out of stock

19

HOSE,5X10X600 This part replaces 09352-50823-300.

44421-13ER0

1
Out of stock

20

CLIP

09401-08401

2
Out of stock

21

SCREW | MODEL H/J/K

02112-06167

2
Out of stock

21

SCREW | MODEL L/M/N/P This part replaces 02112-36168.

02112-36167

2
Out of stock
