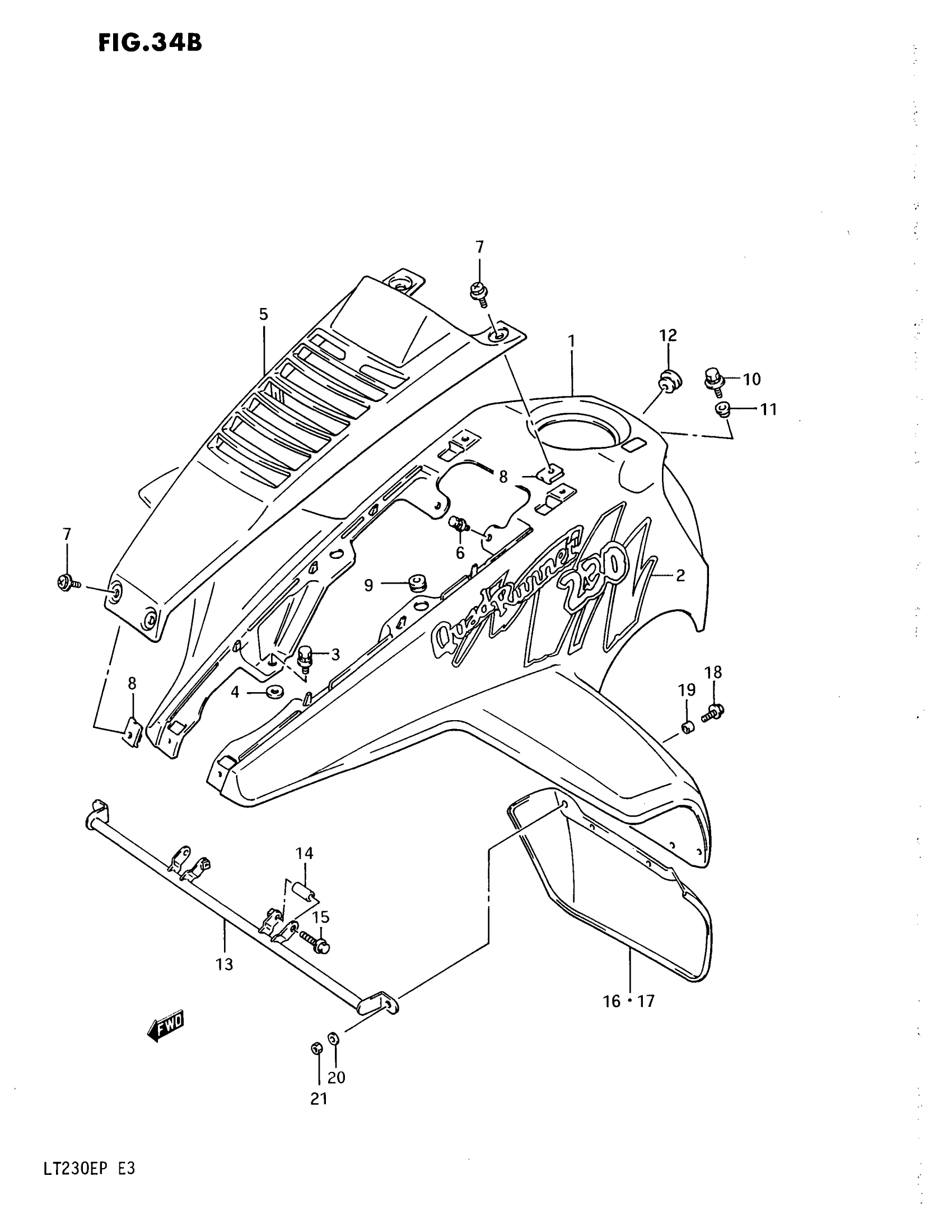

Suzuki LT230E (1993) FRONT FENDER (MODEL N/P) Diagram

#

Description
Price

1

FENDER, FRONT (ORANGE)

53111-22A01-25G

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL N !68155-35B11-1JJ This part replaces 68155-35B10-1JJ.

68155-35B11-1JJ

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL N !68156-35B11-1JJ This part replaces 68156-35B10-1JJ.

68156-35B11-1JJ

Unavailable

2

TAPE, FRONT FENDER RH | MODEL P

68155-35B11-1TG

Unavailable

2

TAPE, FRONT FENDER LH | MODEL P

68156-35B11-1TG

Unavailable

3

BOLT, FRONT FENDER, FRONT

09118-08128

Unavailable

4

WASHER This part replaces 09160-08087.

09160-08128

$2.80

5

FENDER, FRONT CENTER (BLUE) | MODEL N

53118-22A00-19F

Unavailable

5

FENDER, FRONT CENTER (BLACK) | MODEL P

53118-22A00-291

Unavailable

6

BOLT

09118-06017

$2.12

7

SCREW

09138-06030

Unavailable

8

NUT

53141-19A00

$4.34

9

CUSHION

09320-08018

$3.04

10

BOLT, FENDER REAR

09118-06049

Unavailable

11

CUSHION

09320-10012

Unavailable

12

CUSHION

09320-20004

$2.92

13

BRACE, FRONT FENDER

53210-35B00

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 09180-06147.

09180-06147-XC0

Unavailable

15

BOLT This part replaces 01517-06404.

01550-0640A

$2.42

16

MUD FLAP, RH

53311-22A00

Unavailable

17

MUD FLAP, LH

53312-22A00

Unavailable

18

SCREW This part replaces 09136-06062.

09136-06017

$2.59

19

SPACER This part replaces 09180-06032.

09180-06246

$2.12

20

WASHER This part replaces 09160-06006.

09160-06084

$1.78

21

.NUT This part replaces 08319-21066.

08319-2106A

$1.91
