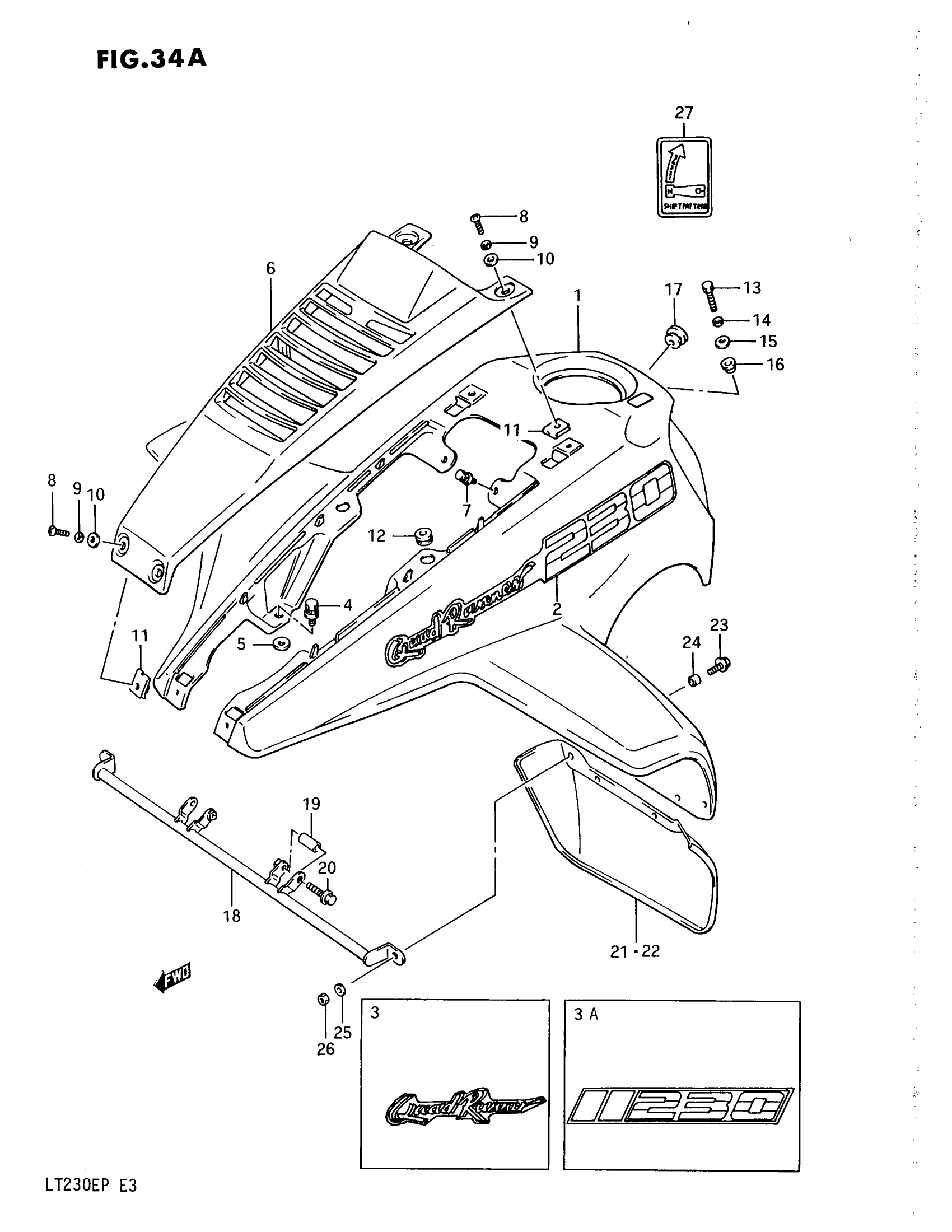

Suzuki LT230E (1993) FRONT FENDER (MODEL L/M) Diagram

#

Description
Price

1

FENDER, FRONT (ORANGE)

53111-22A01-25G

Unavailable

2

EMBLEM, FRONT FENDER RH | MODEL L

68151-35B40-3MA

Unavailable

2

EMBLEM, FRONT FENDER LH | MODEL L

68151-35B50-3MA

Unavailable

3

EMBLEM, FRONT FENDER,Q,R | MODEL M

68151-35B70-0UV

Unavailable

3A

EMBLEM, FRONT FENDER,RH | MODEL M

68155-35B00-3MA

Unavailable

3A

EMBLEM, FRONT FENDER,LH | MODEL M

68156-35B00-3MA

Unavailable

4

BOLT, FRONT FENDER, FRONT

09118-08128

Unavailable

5

WASHER This part replaces 09160-08087.

09160-08128

$2.80

6

FENDER, FRONT CENTER (ORANGE) | MODEL L

53118-22A00-25G

Unavailable

6

FENDER, FRONT CENTER (BLUE) | MODEL M

53118-22A00-19F

Unavailable

7

BOLT

09118-06017

$2.12

8

SCREW This part replaces 02112-06164.

02112-0616A

$1.49

9

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

10

WASHER This part replaces 09160-06006.

09160-06084

$1.78

11

NUT

53141-19A00

$4.34

12

CUSHION

09320-08018

$3.04

13

BOLT This part replaces 01107-06408.

01500-0640B

$2.62

14

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

15

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

16

CUSHION

09320-10012

Unavailable

17

CUSHION

09320-20004

$2.92

18

BRACE, FRONT FENDER

53210-35B00

Unavailable

19

NO DESCRIPTION AVAILABLE This part replaces 09180-06147.

09180-06147-XC0

Unavailable

20

BOLT This part replaces 01517-06404.

01550-0640A

$2.42

21

MUD FLAP, RH

53311-22A00

Unavailable

22

MUD FLAP, LH

53312-22A00

Unavailable

23

SCREW This part replaces 09136-06062.

09136-06017

$2.59

24

SPACER This part replaces 09180-06032.

09180-06246

$2.12

25

WASHER This part replaces 09160-06006.

09160-06084

$1.78

26

.NUT This part replaces 08319-21066.

08319-2106A

$1.91

27

LABEL, GEAR SHIFT REFER TO FIG.34B(F-9) FOR MODE

68392-24210

$2.92
