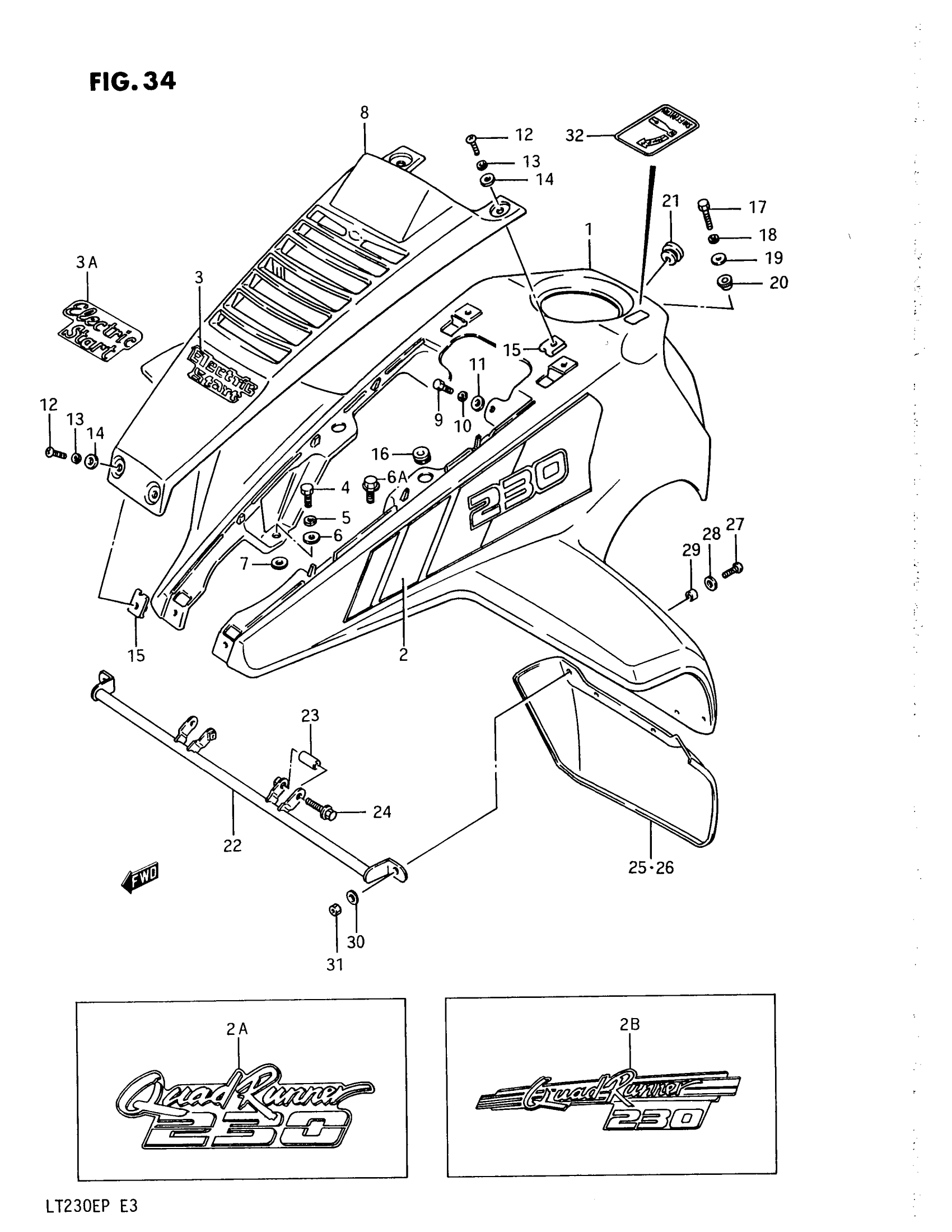

Suzuki LT230E (1993) FRONT FENDER (MODEL H/J/K) Diagram

#

Description
Price

1

FENDER, FRONT (ORANGE)

53111-22A01-25G

Unavailable

2

TAPE SET | MODEL H

68150-35B00-32E

Unavailable

2A

TAPE SET | MODEL J

68151-35B10-9SC

Unavailable

2B

EMBLEM, FRONT FENDER RH | MODEL K

68151-35B20-0DR

Unavailable

2B

EMBLEM, FRONT FENDER LH | MODEL K

68151-35B30-0DR

Unavailable

3

EMBLEM, FRONT | MODEL H This part replaces 68131-35B00-60D.

68131-35B00-73J

Unavailable

3

EMBLEM | MODEL J

68131-35B00-73J

Unavailable

3A

EMBLEM | MODEL K

68151-41B40-0DS

Unavailable

4

PLUG, DRAIN | MODEL H/J This part replaces 01107-08163.

01500-0816B

$2.50

5

LOCK WASHER | MODEL H/J This part replaces 08321-21083.

08321-0108A

$1.84

6

WASHER (8.5X20X1.6) | MODEL H/J This part replaces 09160-08094.

09160-08054

$1.49

6A

BOLT, FRONT FENDER, FRONT | MODEL K

09118-08128

Unavailable

7

WASHER This part replaces 09160-08087.

09160-08128

$2.80

8

FENDER, FRONT CENTER (BLACK) | MODEL H/J

53118-22A00-291

Unavailable

8

FENDER, FRONT CENTER (ORANGE) | MODEL K

53118-22A00-25G

Unavailable

9

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

10

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

11

WASHER This part replaces 09160-06006.

09160-06084

$1.78

12

SCREW This part replaces 02112-06164.

02112-0616A

$1.49

13

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

14

WASHER This part replaces 09160-06006.

09160-06084

$1.78

15

NUT

53141-19A00

$4.34

16

CUSHION

09320-08018

$3.04

17

BOLT This part replaces 01107-06408.

01500-0640B

$2.62

18

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

19

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

20

CUSHION

09320-10012

Unavailable

21

CUSHION

09320-20004

$2.92

22

BRACE, FRONT FENDER

53210-35B00

Unavailable

23

NO DESCRIPTION AVAILABLE This part replaces 09180-06147.

09180-06147-XC0

Unavailable

24

BOLT This part replaces 01517-06404.

01550-0640A

$2.42

25

MUD FLAP, RH

53311-22A00

Unavailable

26

MUD FLAP, LH

53312-22A00

Unavailable

27

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

28

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

29

SPACER This part replaces 09180-06032.

09180-06246

$2.12

30

WASHER This part replaces 09160-06006.

09160-06084

$1.78

31

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

32

LABEL, GEAR SHIFT REFER TO FIG.34A(F-8) FOR MODE REFER TO FIG.34B(F-9) FOR MODE

68392-24210

$2.92
