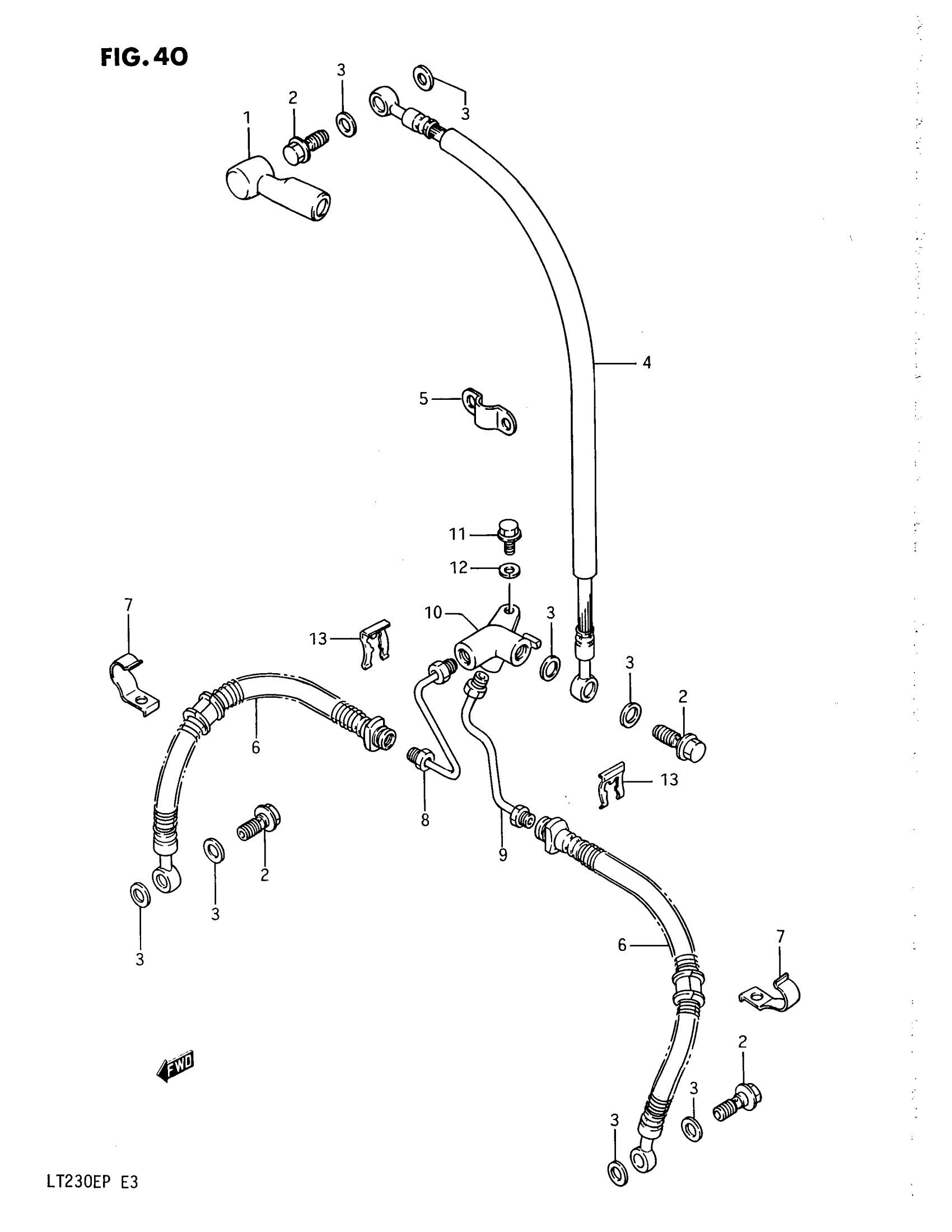

Suzuki LT230E (1993) FRONT BRAKE HOSE Diagram

#

Description
Price

1

BOOT,MASTER CYL This part replaces 59711-04700.

59711-04701

$20.62

2

BOLT

09360-10017

$3.42

3

WASHER (10X15X1.5)

09161-10009

$1.84

4

HOSE, FRONT BRAKE NO.1

59480-35B01

Unavailable

5

CLAMP

59243-22A00

Unavailable

6

HOSE, FRONT BRAKE NO.2

59240-22A04

Unavailable

7

CLAMP

59261-22A00

Unavailable

8

PIPE, RH

59250-22A00

Unavailable

9

PIPE, LH

59450-22A00

Unavailable

10

JOINT (WHITE) | MODEL H/J !59490-24502 This part replaces 59490-24501.

59490-24502

Unavailable

10

JOINT (WHITE) | MODEL K/L/M/N/P

59490-24502

Unavailable

11

BOLT | MODEL H/J/K/L This part replaces 01107-06166.

01500-0616A

$1.78

11

BOLT | MODEL M/N/P This part replaces 01134-06166.

01570-0616A

$2.23

12

LOCK WASHER | MODEL H/J/K/L This part replaces 08321-21066.

08321-0106A

$1.84

13

E RING This part replaces 09383-13001.

09383-13003

$2.30
