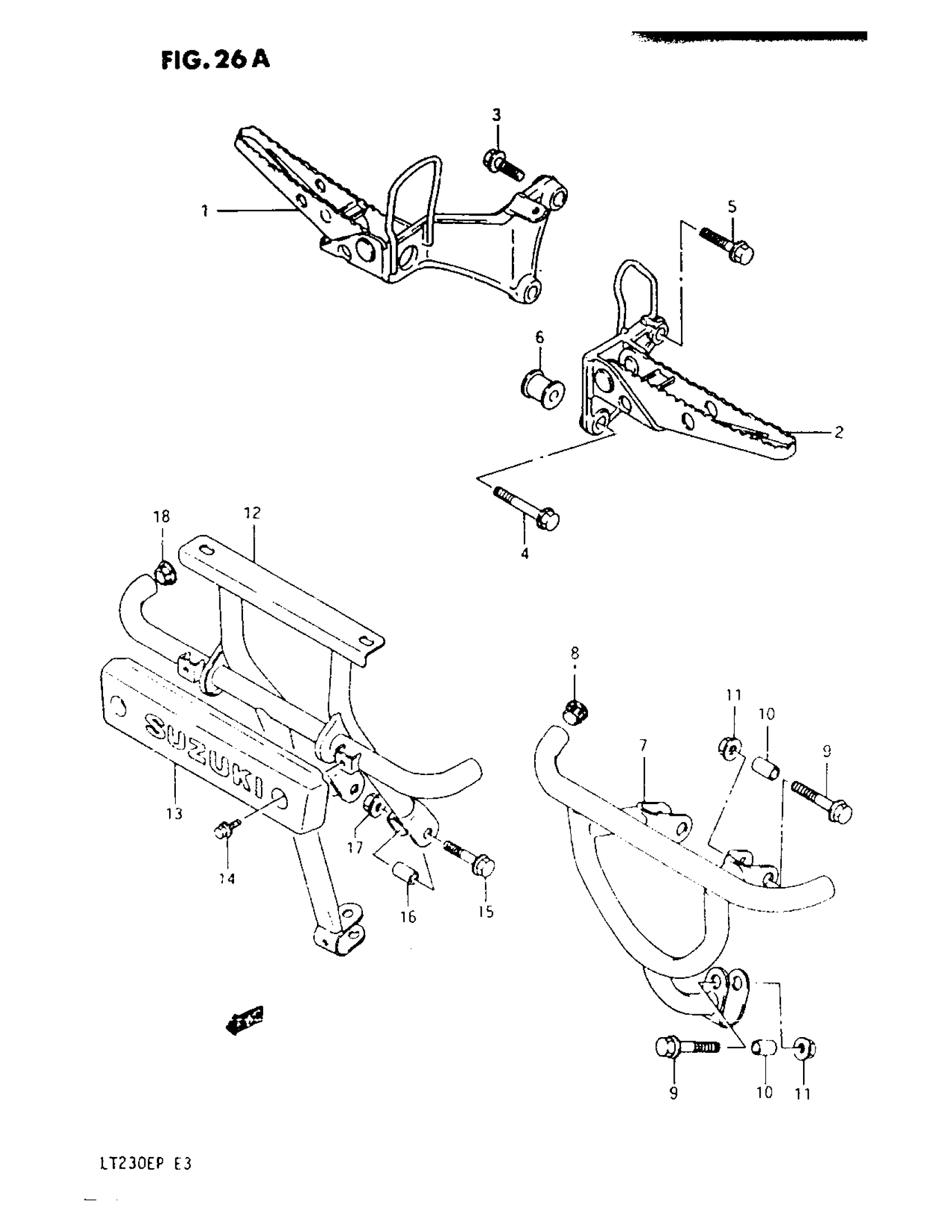

Suzuki LT230E (1993) FOOTREST (MODEL K/L/M/N/P) Diagram

#

Description
Price

1

BAR, FRONT FOOTREST RH | MODEL K This part replaces 43510-35B11.

43510-35B12

Unavailable

1

BAR, FRONT FOOTREST RH | MODEL L

43510-35B12

Unavailable

1

BAR, FRONT FOOTREST RH | MODEL M/N/P

43510-35B20

Unavailable

2

BAR, FRONT FOOTREST LH | MODEL K This part replaces 43520-35B10.

43520-35B11

Unavailable

2

BAR, FRONT FOOTREST LH | MODEL L

43520-35B11

Unavailable

2

BAR, FRONT FOOTREST LH | MODEL M/N/P

43520-35B20

Unavailable

3

.BOLT | MODEL K/L/M This part replaces 01517-10355.

01550-1035A

$3.25

3

BOLT, RH | MODEL N/P

09118-10059

Unavailable

4

BOLT This part replaces 01517-10555.

01550-1055B

$5.17

5

BOLT (10X20) This part replaces 01517-10255.

01550-1025A

$2.80

6

SPACER, FRONT FOOTREST

11610-35B00

Unavailable

7

GRIP, FRONT (ORANGE)

43990-35B10-25G

Unavailable

8

CAP

43978-18900

Unavailable

9

BOLT This part replaces 01517-08455.

01550-0845A

$2.88

10

SPACER (8.2X12.5X23.5) This part replaces 09180-08129.

09180-08227

$2.07

11

NUT This part replaces 08319-31085.

08319-3108A

$2.31

12

GRIP, FRONT | OPT

43990-35B00

Unavailable

13

RUBBER, FRONT GRIP | OPT

43976-18A00

Unavailable

14

BOLT | OPT This part replaces 01517-05125.

01550-0512B

$3.12

15

BOLT | OPT This part replaces 01517-08405.

01550-08407

$2.63

16

SPACER (8.2X12.5X23.5) | OPT This part replaces 09180-08129.

09180-08227

$2.07

17

NUT | OPT This part replaces 08319-31085.

08319-3108A

$2.31

18

CAP | OPT

43978-24500

$9.50
