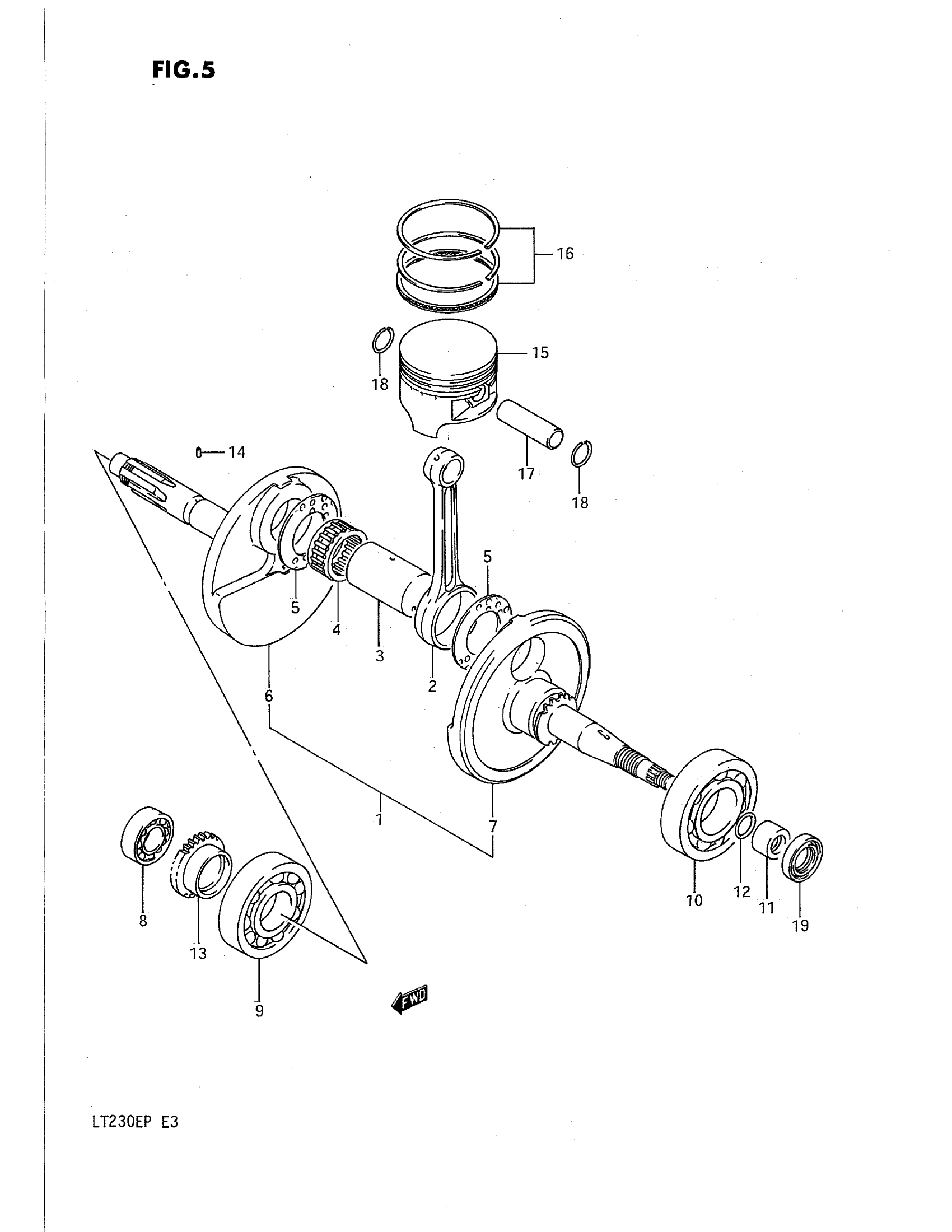

Suzuki LT230E (1993) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | MODEL H/J %E.NO.115304 This part replaces 12200-35B02.

12200-35B03

Unavailable

1

CRANKSHAFT ASSY | MODEL H/J E.NO.115305%

12200-35B03

Unavailable

1

CRANKSHAFT ASSY | MODEL K/L/M/N/P; Includes Item(s) 2 - 7

12200-35B20

Unavailable

2

ROD, CONNECTING

12161-22A02

Unavailable

3

PIN, CRANK This part replaces 12210-22A02.

12210-22A03

$50.10

4

BEARING | MODEL H/J %E.NO.115304 This part replaces 09263-30026-0B0.

09263-30028-0B0

Unavailable

4

BEARING | MODEL H/J E.NO.115305%

09263-30028-0B0

Unavailable

4

BEARING | MODEL K/L/M/N

09263-30033-0B0

$76.77

5

WASHER

09160-30034

Unavailable

6

CRANKSHAFT, RH | MODEL H/J

12220-35B00

Unavailable

6

CRANKSHAFT, RH | MODEL K/L/M/N/P

12221-35B20

Unavailable

7

CRANKSHAFT, LH

12261-35B00

Unavailable

8

BEARING, RH

09262-15014

$26.60

9

BEARING, MDL | MODEL H/J

09262-28014

$57.95

9

BEARING, MDL | MODEL K/L/M/N/P

09262-28017

Unavailable

10

BEARING, LH | MODEL H/J

09262-35038

$46.10

10

BEARING, LH | MODEL K/L/M/N/P

09262-35045

Unavailable

11

SPACER, LH | INCLUDED RECOIL STARTER SET

12359-18A02

$20.45

12

O RING (D:1.9,ID:12.6) | INCLUDED RECOIL STARTER SET This part replaces 09280-13007.

09280-12009

$3.18

13

GEAR, OIL PUMP DRIVE (NT:30) | MODEL H/J

16321-18A00

Unavailable

13

GEAR, OIL PUMP DRIVE (NT:30) | MODEL K/L/M/N/P

16321-19B00

Unavailable

14

PIN | MODEL H/J This part replaces 06211-03052.

04221-03059

$1.72

14

PIN (4X13.8) | MODEL K/L/M/N/P

04221-04089

$1.49

15

PISTON

12111-18A04

Unavailable

15

PISTON SET O.5 | OPT This part replaces 12111-18A04-050.

12103-18830-050

Unavailable

15

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-18A04-100.

12103-18830-100

Unavailable

16

RING SET, PISTON This part replaces 12140-22A10.

12140-19B10

$41.60

16

RING SET, PISTON (OS:0.5) | OPT This part replaces 12140-22A10-050.

12140-19B10-050

$50.83

16

RING SET, PISTON (OS:1.0) | OPT This part replaces 12140-22A10-100.

12140-19B10-100

$50.83

17

PIN, PISTON

12151-22A02

$12.15

18

SNAP RING This part replaces 09381-16002.

09381-16001

$1.67

19

OIL SEAL (22X35X7) | %E.NO.121840 This part replaces 09282-22002.

09289-22008

$22.86

19

OIL SEAL (22X35X7) | E.NO.121841% INCLUDED RECOIL STARTER SET

09289-22008

$22.86
