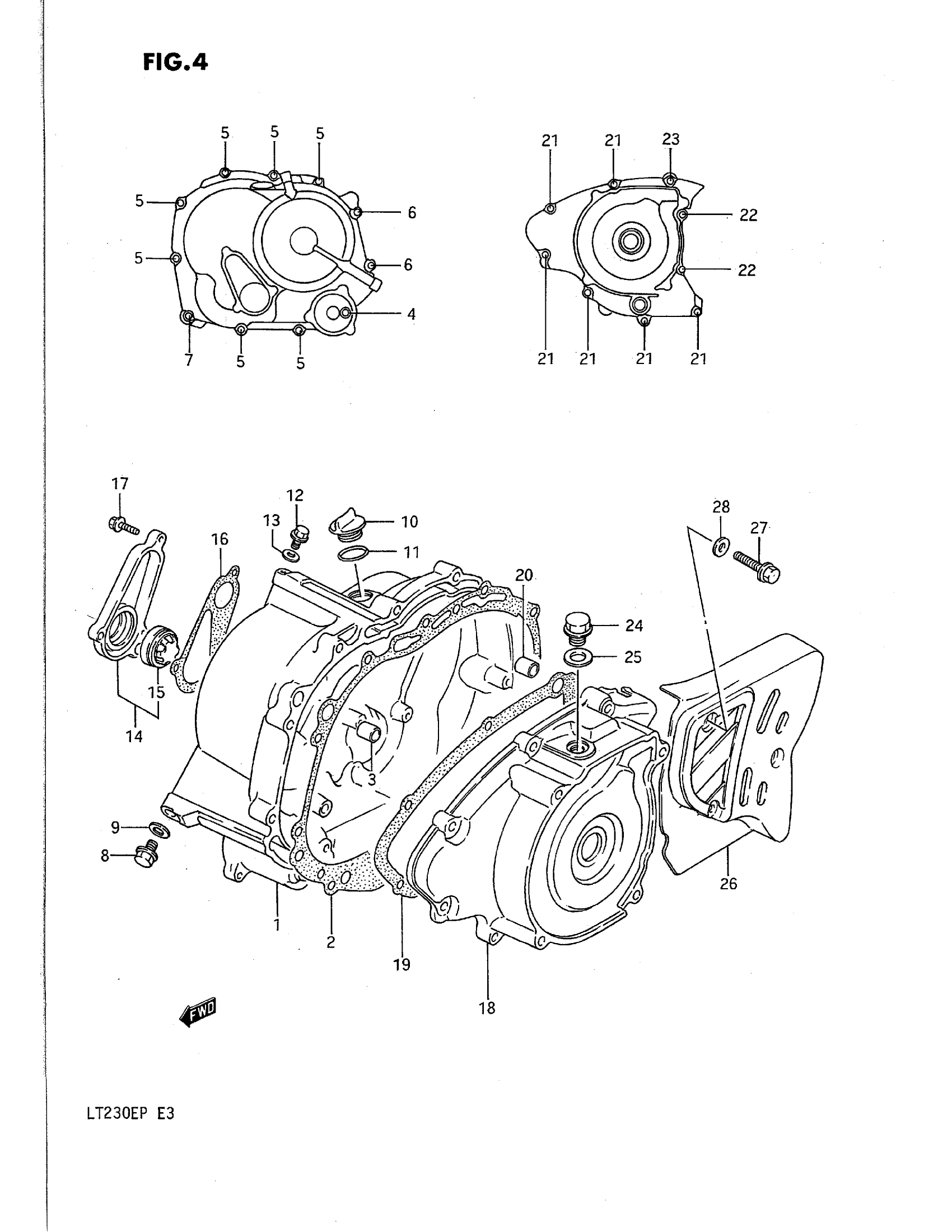

Suzuki LT230E (1993) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-35B00

Unavailable

2

GASKET, CLUTCH COVER (NA) | MODEL H/J/K/L/M This part replaces 11482-18A01.

11482-02C10

$19.03

2

GASKET, CLUTCH COVER (NA) | MDOEL N/P

11482-02C10

$19.03

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06254.

01547-0625B

$2.45

5

BOLT, WATER PUMP This part replaces 01547-06354.

01547-0635B

$2.73

6

BOLT (6X45) | MODEL H/J/K/L/M

01547-06457

$2.32

6

BOLT (6X45) | MODEL N/P This part replaces 09103-06013.

09103-06165

$3.03

7

BOLT This part replaces 01547-06555.

01547-0655B

$2.75

8

BOLT (8X12) This part replaces 01517-08125.

01550-0812A

$2.32

9

GASKET

09168-08015

$2.79

10

PLUG (20X10) This part replaces 09259-20013.

09259-20019

$11.52

11

O RING

09280-17003

$1.65

12

BOLT This part replaces 01517-06105.

01550-0610A

$1.97

13

GASKET

09168-06023

$2.35

14

CAP, CLUTCH RELEASE ADJUST | Includes Item(s) 15

11410-18A10

$58.57

15

LENS, OIL LEVEL

11971-33210

$18.20

16

GASKET,CL RLSE | MODEL H/J/K/L/M This part replaces 11495-18A00.

11495-02C11

$6.80

16

GASKET,CL RLSE | MODEL N/P This part replaces 11495-02C10.

11495-02C11

$6.80

17

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06254.

01547-0625B

$2.45

18

COVER, MAGNETO

11351-35B01

Unavailable

19

GASKET, MAGNETO COVER (NA) | MODEL H/J/K/L/M This part replaces 11483-18A00.

11483-02C10

$11.13

19

GASKET, MAGNETO COVER (NA) | MODEL N/P

11483-02C10

$11.13

20

PIN This part replaces 09206-13001.

04211-13189

$2.19

21

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06254.

01547-0625B

$2.45

22

BOLT, WATER PUMP This part replaces 01547-06354.

01547-0635B

$2.73

23

BOLT This part replaces 01547-06454.

01547-0645B

$2.73

24

PLUG, T.D.C

09247-14015

$4.45

25

GASKET

09168-14004

$1.83

26

COVER,ENG SPRKT This part replaces 11360-35B01.

11360-35BV0-13L

Unavailable

27

BOLT This part replaces 01547-06304.

01547-06307

$2.03

28

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26
