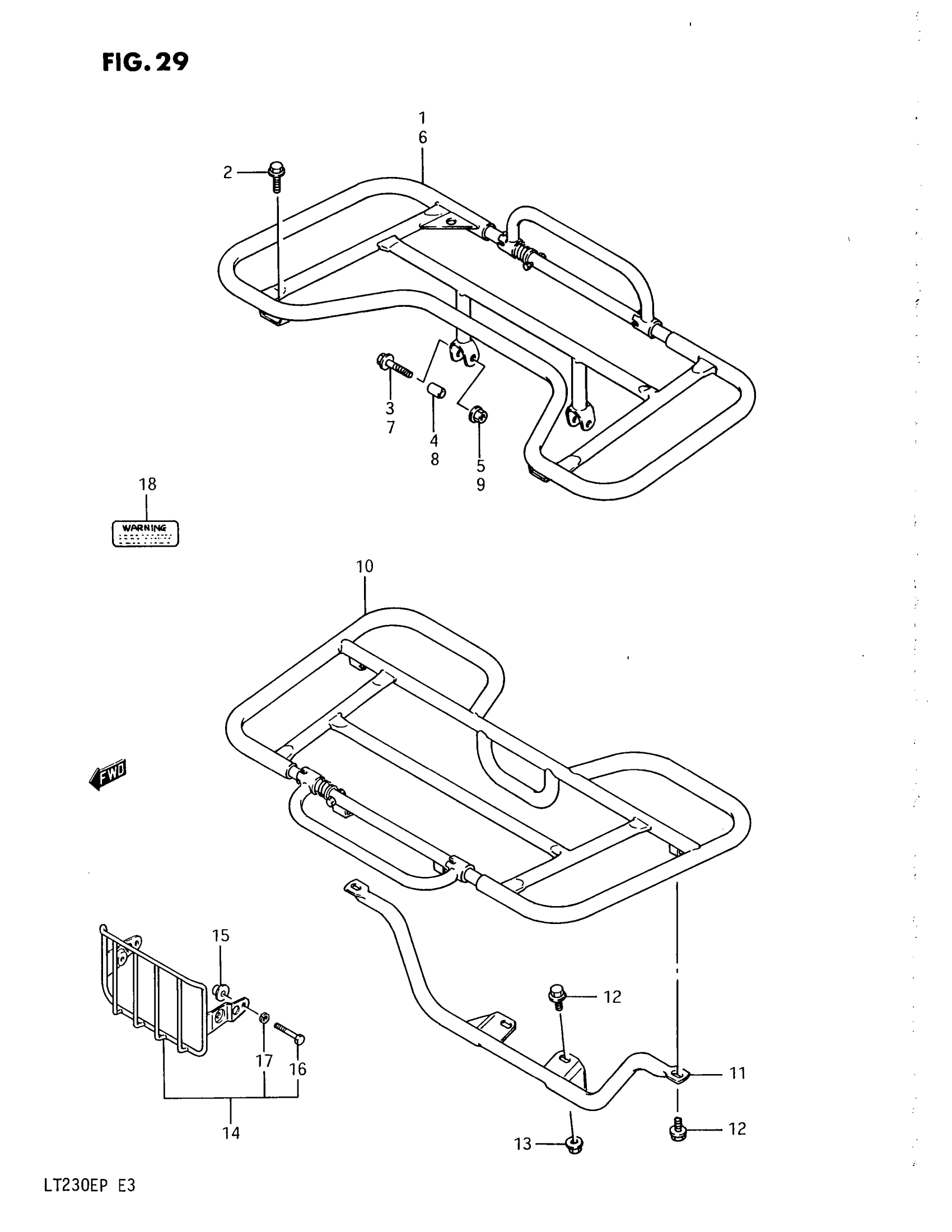

Suzuki LT230E (1993) CARRIER Diagram

#

Description
Price

1

CARRIER, REAR | MODEL H This part replaces 46310-35B00.

46300-35B00

Unavailable

1

CARRIER, REAR | MODEL J

46300-35B00

Unavailable

2

BOLT | MODEL H/J This part replaces 01517-08254.

01550-0825A

$2.32

3

BOLT | MODEL H/J This part replaces 01517-08405.

01550-08407

$3.42

4

SPACER (8.2X12.5X23.5) | MODEL H/J This part replaces 09180-08129.

09180-08227

$2.06

5

NUT | MODEL H/J This part replaces 08319-31085.

08319-3108A

$2.32

6

CARRIER SET, REAR | MODEL K/L/M/N/P,OPT; Includes Item(s) 7 - 9

46300-35820

Unavailable

7

BOLT | MODEL K/L/M/N/P,OPT This part replaces 01517-08405.

01550-08407

$3.42

8

SPACER (8.2X12.5X23.5) | MODEL K/L/M/N/P,OPT This part replaces 09180-08129.

09180-08227

$2.06

9

NUT | MODEL K/L/M/N/P,OPT This part replaces 08319-31085.

08319-3108A

$2.32

10

CARRIER SET, FRONT | OPT; Includes Item(s) 11 - 13

46400-35822

Unavailable

11

BRACKET, FRONT CARRIER | OPT

46440-35B00

Unavailable

12

BOLT (8X12) | OPT This part replaces 01517-08125.

01550-0812A

$2.32

13

NUT | OPT This part replaces 08316-16085.

08316-1008B

$2.66

14

GUARD SET, HEADLAMP | OPT; Includes Item(s) 15 - 17

48500-22820

Unavailable

15

SPACER | OPT

48570-22A00

Unavailable

16

BOLT | OPT This part replaces 01107-06408.

01500-0640B

$2.62

17

LOCK WASHER | OPT This part replaces 08321-21067.

08321-01067

$2.13

18

LABEL

68381-35B20

Unavailable
