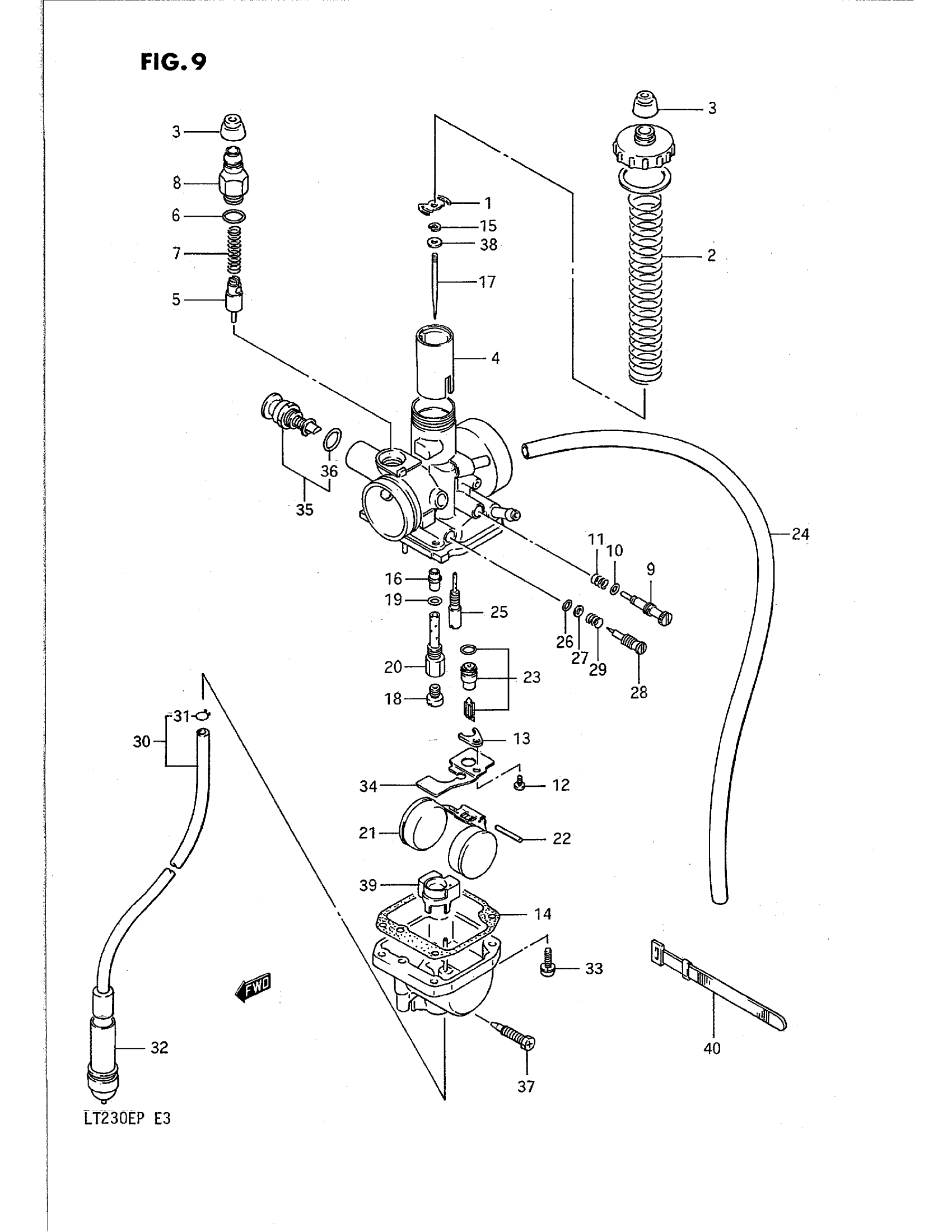

Suzuki LT230E (1993) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | MODEL H/J

13200-35B01

Unavailable

CARBURETOR ASSY | MODEL K/L/M/N/P; Includes Item(s) 1 - 39

13200-35B10

Unavailable

1

SEAT, SPRING

13581-09210

$6.55

2

SPRING

13573-05320

Unavailable

3

.CAP This part replaces 13681-04010.

13681-04011

$4.93

4

VALVE, PISTON (CA:1.5) This part replaces 13551-18A00.

13551-19B01

Unavailable

5

PLUNGER

13411-24500

$22.41

6

O RING

13278-02330

$2.82

7

SPRING

13417-01010

$4.62

8

CAP, PLUNGER

13418-43200

$10.48

9

SCREW

13267-24500

$10.55

10

O RING

13295-33010

$4.48

11

SPRING

13268-35010

$4.48

12

SCREW This part replaces 02112-03066.

02112-0306B

$1.59

13

PLATE

13373-46710

$6.17

14

GASKET

13251-05320

$7.69

15

E RING

13394-10010

$5.45

16

JET, NEEDLE (O-2) | MODEL H/J

09494-00436

$30.38

16

JET, NEEDLE (O-4) | MODEL K/L/M/N/P

09494-00388

Unavailable

17

NEEDLE, JET (4JR45-4)

13383-18A01

Unavailable

18

JET, MAIN (115)

09491-23011

$9.63

19

.O RING This part replaces 13246-43010.

13246-43011

$4.34

20

PIPE, BLEEDER

13385-47030

Unavailable

21

FLOAT

13250-05230

$26.91

22

.PIN, FLOAT

13254-01010

$3.62

23

VALVE ASSY, NEEDLE

13370-24400

Unavailable

24

HOSE,5X10X600 | L:550!500 This part replaces 13684-22A00.

44421-13ER0

$10.06

25

JET, PILOT (17.5) | MODEL H/J

09492-17009

Unavailable

25

JET, PILOT (20) | MODEL K/L/M/N/P

09492-20009

$14.85

26

O-RING This part replaces 13295-29900.

13295-29901

$4.34

27

GASKET

13291-29900

$1.98

28

SCREW, PILOT (2 7/8) | MODEL H/J This part replaces 13279-47080.

13279-47070

$13.36

28

SCREW, PILOT (2 7/8) | MODEL K/L/M/N/P This part replaces 13279-47080.

13279-47070

$13.36

29

.SPRING (NT:45)

13268-47070

$4.34

30

VALVE ASSY, CHECK | L:275!225

13520-02C01

$50.10

31

CLIP

13671-05A40

$3.71

32

CAP,OVER FLOW This part replaces 13680-19B01.

13680-19B02

$13.57

33

SCREW

13601-04148

$2.81

34

PLATE

13259-18900

$7.53

35

PLUNGER ASSY, STARTER

13439-18911

$51.93

36

O RING

13278-02330

$2.82

37

SCREW

13247-24500

Unavailable

38

WASHER

13382-47010

$3.56

39

RING

13331-18B00

Unavailable

40

CLAMP, AIR VENT HOSE

09407-12402

$3.04
