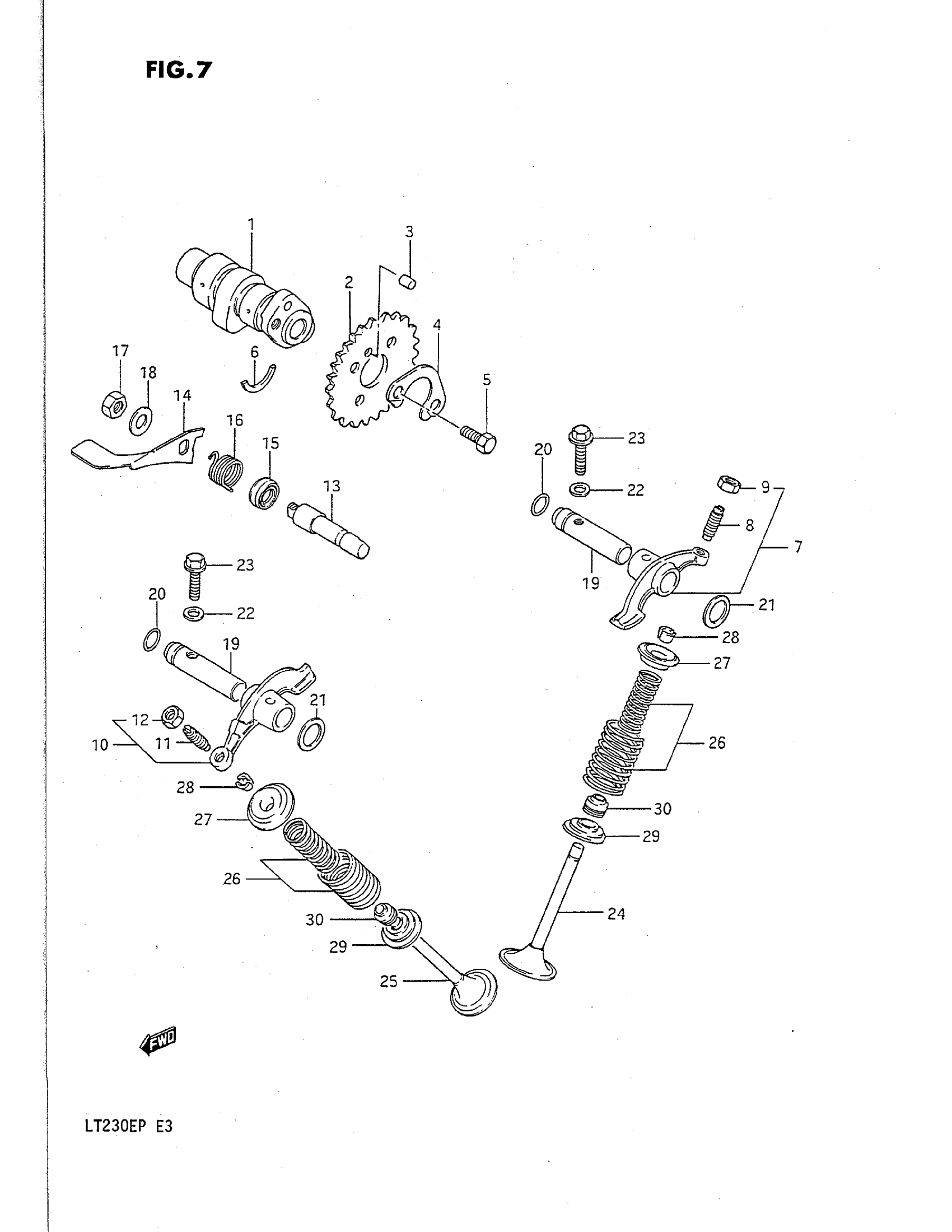

Suzuki LT230E (1993) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT

12711-18A00

$182.90

2

SPROCKET, CAMSHAFT (NT:32)

12741-05201

$22.98

3

PIN

09261-05005

$1.49

4

WASHER, SPROCKET This part replaces 12747-05201.

12747-05202

$2.51

5

BOLT

09111-06032

$2.21

6

C-RING

09390-22002

$2.27

7

ARM ASSY, VALVE ROCKER | %E.NO.131551 This part replaces 12840-05200.

12850-25C00

$43.16

7

ARM ASSY, VALVE ROCKER | E.NO.131552%; Includes Item(s) 8 - 9 This part replaces 12850-24400.

12850-25C00

$43.16

8

.SCREW, TAPPET ADJUSTING

12842-32411

$5.24

9

.NUT, ADJUSTING SCREW

12843-32400

$2.79

10

ARM ASSY, VALVE ROCKER | Includes Item(s) 11 - 12 This part replaces 12850-24400.

12850-25C00

$43.16

11

.SCREW, TAPPET ADJUSTING

12842-32411

$5.24

12

.NUT, ADJUSTING SCREW

12843-32400

$2.79

13

SHAFT, DECOMP | MODEL H/J This part replaces 12941-24402.

12941-19B00

$29.25

13

SHAFT, DECOMP | MODEL K/L/M/N/P

12941-19B00

$29.25

14

LEVER, DECOMP SHAFT

12942-35B00

Unavailable

15

OIL SEAL

09282-10014

$6.70

16

SPRING This part replaces 09448-17015.

09448-17014

$4.07

17

NUT This part replaces 08310-22088.

08310-00087

$2.13

18

WASHER This part replaces 08322-11088.

08322-01087

$2.13

19

SHAFT, VALVE ROCKER ARM

12861-05201

$19.72

20

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

21

WASHER

09164-12021

$2.03

22

GASKET

09168-06023

$2.35

23

BOLT This part replaces 01517-06257.

01550-06257

$2.30

24

VALVE, INTAKE

12911-18A00

Unavailable

25

VALVE, EXHAUST

12912-18A00

$62.11

26

SPRING SET, VALVE

12920-05210

$13.75

27

RETAINER, VALVE SPRING This part replaces 12931-49200.

12931-49201

$6.91

28

COTTER, VALVE

12932-24400

$1.94

29

SEAT, VALVE SPRING This part replaces 12933-49200.

12933-49201

$5.84

30

OIL SEAL (5.5X11X8.2) This part replaces 09289-05003.

09289-05015

$6.70
