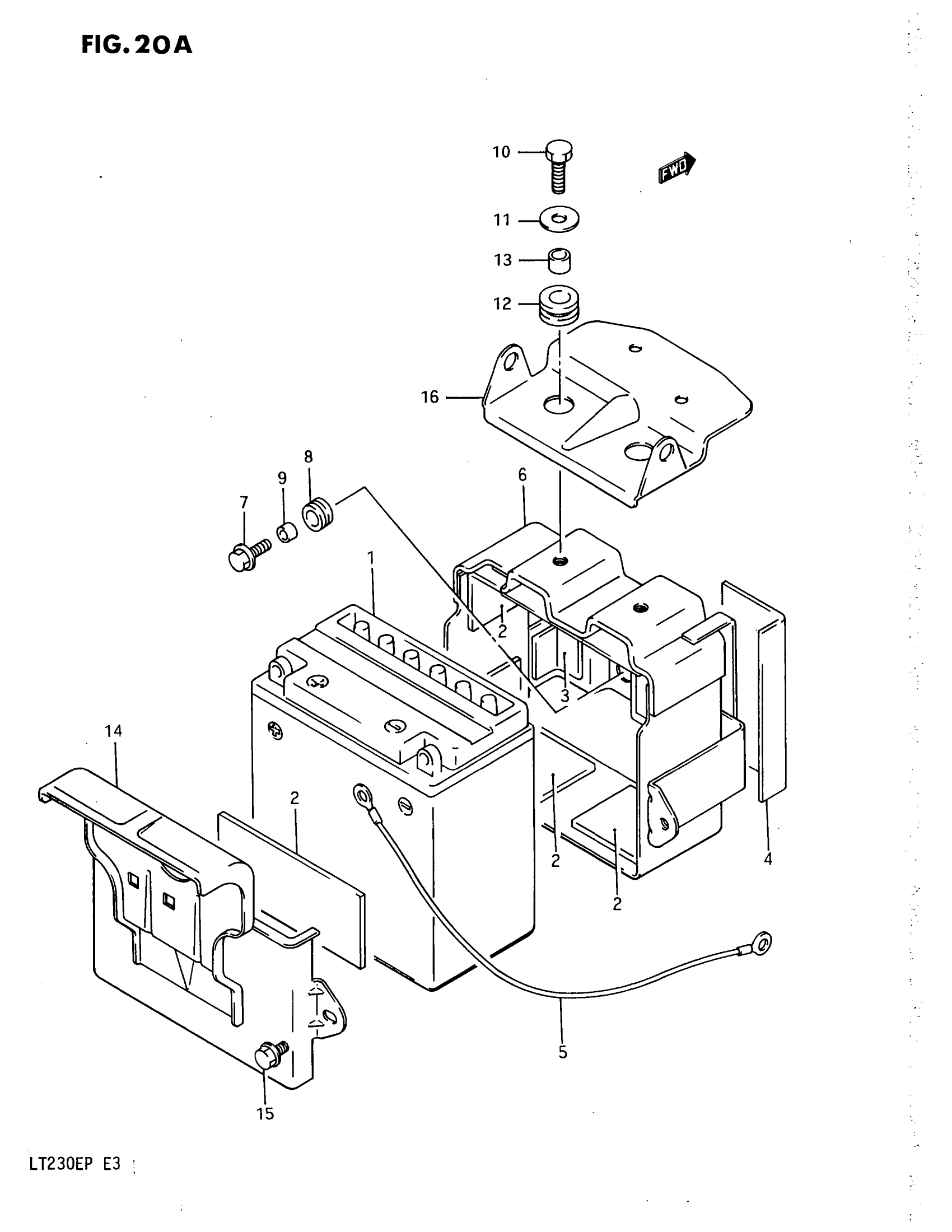

Suzuki LT230E (1993) BATTERY (MODEL K/L/M/N/P) Diagram

#

Description
Price

1

BATTERY (FTX12-BS,12V,10AH) This part replaces 33610-35B70.

33610-48E20

$98.67

2

PROTECTOR | CUT AS REQUIRED PROFILE (50X115X3)

33651-37000

$4.48

3

PROTECTOR | CUT AS REQUIRED PROFILE (30X40X3)

33651-37000

$4.48

4

NO DESCRIPTION AVAILABLE This part replaces 33652-20A00-H17.

33652-12D00

Unavailable

5

LEAD WIRE, (-) This part replaces 33860-35B10.

33860-35B00

Unavailable

6

HOLDER, BATTERY

41540-35B10

Unavailable

7

BOLT

09116-06006

$1.86

8

CUSHION (8.5X20X8) This part replaces 09320-08032.

09320-08510

$1.97

9

SPACER (6.2X9X7.5)

09180-06103

Unavailable

10

BOLT This part replaces 01107-08206.

01500-0820A

$2.28

11

WASHER This part replaces 09160-08021.

09160-08130

$2.03

12

CUSHION This part replaces 09320-12029.

09320-12036

$2.38

13

SPACER

09180-08145

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 41560-35B10.

41560-35B20

Unavailable

15

BOLT This part replaces 01517-06105.

01550-0610A

$1.97

16

BRACKET, BATTERY HOLDER | ***

41551-35B10

Unavailable
