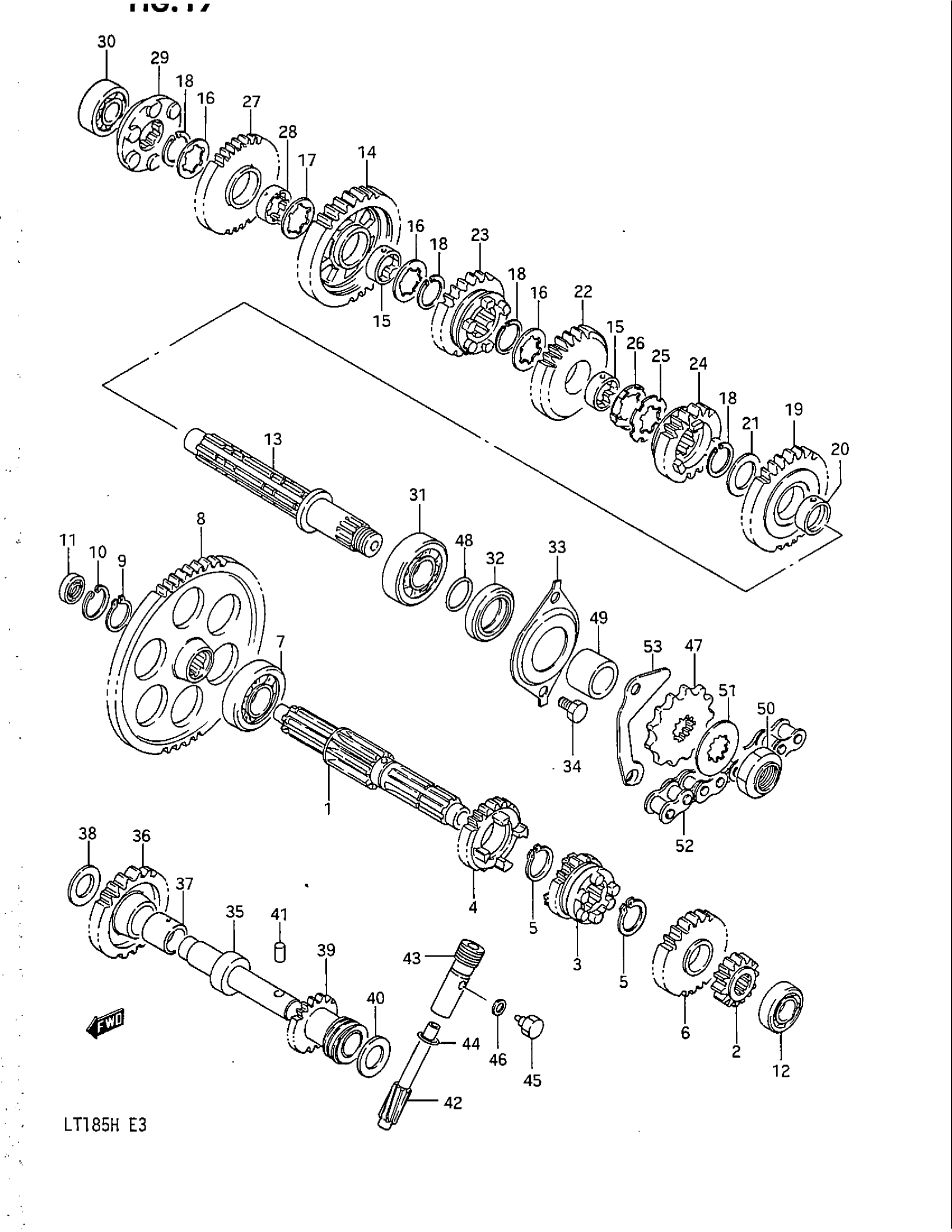

Suzuki LT185 (1987) TRANSMISSION (MODEL G/H) Diagram

#

Description
Price

1

COUNTER SHAFT (NT:11)

24120-24412

Unavailable

2

GEAR, 2ND DRIVE (NT:11)

24221-24410

Unavailable

3

GEAR, 3RD DRIVE (NT:16)

24231-24410

Unavailable

4

GEAR, 4TH DRIVE (NT:19)

24241-24412

Unavailable

5

CIRCLIP

09380-20007

$2.43

6

GEAR, 5TH DRIVE (NT:22)

24251-24411

Unavailable

7

BEARING, DRIVE SHAFT LH This part replaces 09262-20062.

09262-20069

$23.28

8

GEAR, PRIMARY DRIVEN (NT:71)

21211-24301

Unavailable

9

CIRCLIP, KICK START DRIVE GEAR This part replaces 08331-11209.

08331-3120A

$2.03

10

CIRCLIP This part replaces 08331-41209.

08331-41206

Unavailable

11

OIL SEAL (10X20X5)

09282-10005

Unavailable

12

BEARING, LH

08113-60020

$16.01

13

DRIVE SHAFT

24131-24411

Unavailable

14

GEAR, 1ST DRIVEN (NT:38)

24311-24402

Unavailable

15

BUSH

24332-24401

Unavailable

16

LOCK WASHER

09167-22017

Unavailable

17

LOCK WASHER

09167-22019

Unavailable

18

CIRCLIP

09380-22006

$3.10

19

GEAR, 2ND DRIVEN (NT:28)

24321-24410

Unavailable

20

BUSH

09300-22008

$14.82

21

WASHER

08211-22321

$3.85

22

GEAR, 3RD DRIVEN (NT:27)

24331-24410

Unavailable

23

GEAR, 4TH DRIVEN (NT:24)

24341-24411

Unavailable

24

GEAR, 5TH DRIVEN (NT:21)

24351-24411

Unavailable

25

LOCK WASHER

09167-22018

Unavailable

26

LOCK WASHER

09169-22004

Unavailable

27

GEAR, REVERSE DRIVEN (NT:33)

24571-24410

Unavailable

28

BUSH

24333-24410

Unavailable

29

DOG, REVERSE

24581-24410

Unavailable

30

BEARING, RH

08123-62027

$18.57

31

BEARING, LH

09262-22018

$25.60

32

OIL SEAL (29X42X6)

09283-29003

Unavailable

33

RETAINER

24751-18900

Unavailable

34

BOLT This part replaces 01107-06106.

01500-0610B

$1.81

35

SHAFT, REVERSE IDLER

24550-24400

Unavailable

36

GEAR, REVERSE IDLER (NT:30)

24561-24410

Unavailable

37

BUSH

09300-17010

Unavailable

38

WASHER, GOVERNOR THRUST This part replaces 08211-15281.

09181-15223

$2.53

39

GEAR, ODOMETER DRIVE

26460-24420

Unavailable

40

SHIM, CAM CHAIN IDLER,T:1.0 This part replaces 08211-15241.

09181-15166

$2.85

41

PIN This part replaces 06211-04103.

04221-04109

Unavailable

42

GEAR, ODOMETER DRIVEN (NT:10)

26471-24410

Unavailable

43

SLEEVE

26481-24200

Unavailable

44

O RING (D:1.3,ID:9.6)

09280-10001

$2.02

45

BOLT (6X10) This part replaces 09135-06002.

09135-06501

$3.04

46

WASHER

09168-06004

$1.49

47

SPROCKET, ENGINE (NT:12)

27511-24400

Unavailable

48

O RING (D:1.7,ID:22)

09280-22003

$1.72

49

SPACER (22X29X20.1)

09180-22029

Unavailable

50

NUT

09159-18005

Unavailable

51

LOCK WASHER

09167-22012

$1.54

52

NO DESCRIPTION AVAILABLE This part replaces 27600-38250-072.

27600-01C10-072

Unavailable

53

PLATE

27641-24400

Unavailable
