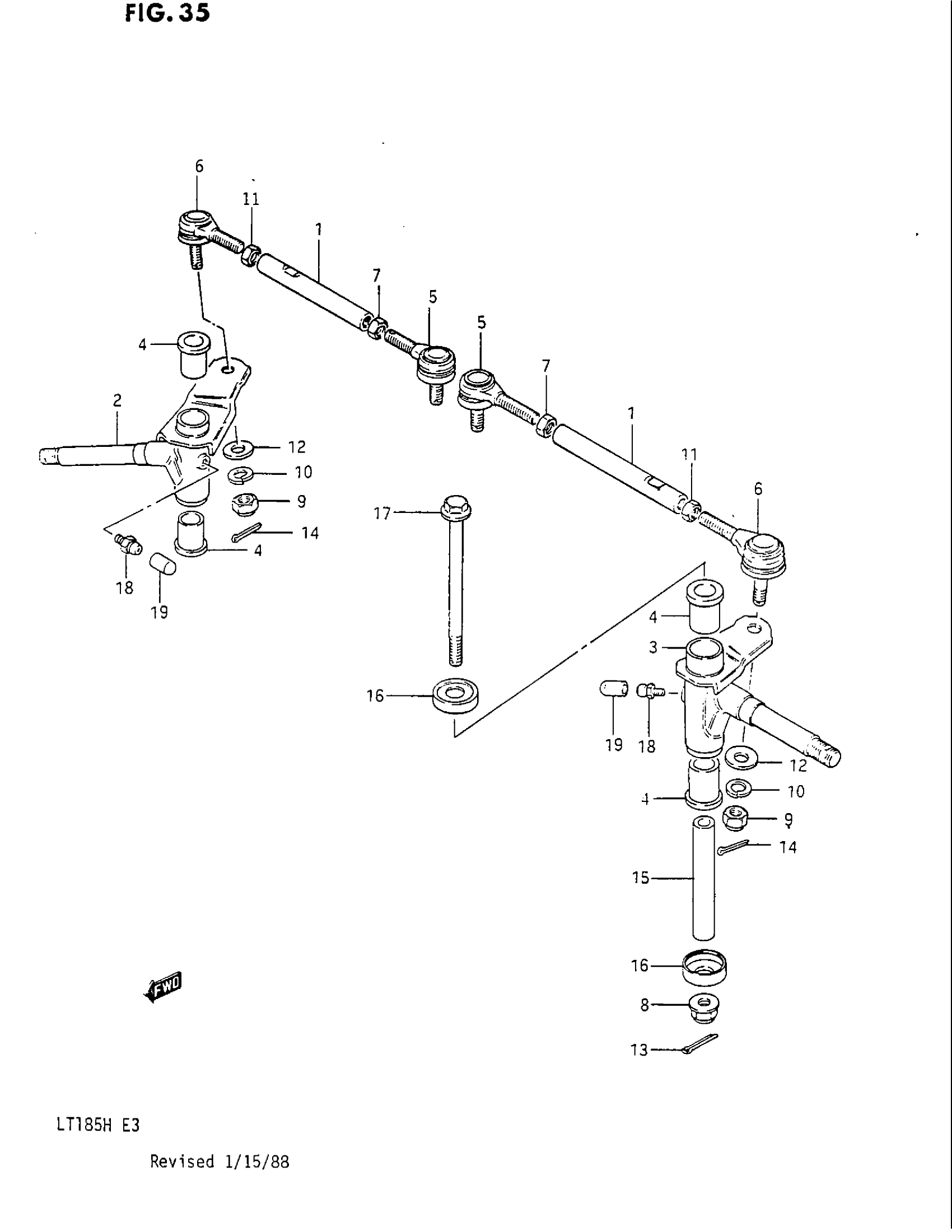

Suzuki LT185 (1987) TIE ROD Diagram

#

Description
Price

1

TIE ROD, STEERING This part replaces 51281-18901.

51281-18A00

Unavailable

2

KNUCKLE ARM, RH | MODEL E This part replaces 51230-24401.

51230-24402

Unavailable

2

KNUCKLE ARM, RH | MODEL F/G/H

51230-24402

Unavailable

3

KNUCKLE ARM, LH | MODEL E This part replaces 51240-24401.

51240-24402

Unavailable

3

KNUCKLE ARM, LH | MODEL F/G/H; Includes Item(s) 4

51240-24402

Unavailable

4

BUSH This part replaces 51236-24402.

51236-40B00

$19.07

5

ROD, END RH This part replaces 51260-24400.

51260-38F10

$81.22

6

ROD, END LH This part replaces 51270-24400.

51270-38F10

$81.22

7

NUT This part replaces 08310-22105.

09140-10043

$2.68

8

NUT This part replaces 08319-31105.

08319-3110A

$2.73

9

NUT This part replaces 09159-10036.

09159-10027

$3.10

10

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.84

11

NUT, TIE ROD, LH

09140-10027

$1.49

12

WASHER This part replaces 09160-10068.

09160-10128-XC0

$2.62

13

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

15

SPACER, RR SPNSN ARM UPPER This part replaces 51251-18901.

61554-31G00

$19.66

16

DUST SEAL

51255-18900

$4.48

17

NO DESCRIPTION AVAILABLE This part replaces 09103-10059.

09103-10059-XC0

Unavailable

18

NIPPLE,GREASE This part replaces 08351-21008.

08351-2100A

$4.68

19

CAP, GREASE NIPPLE

61442-33310

$3.37
