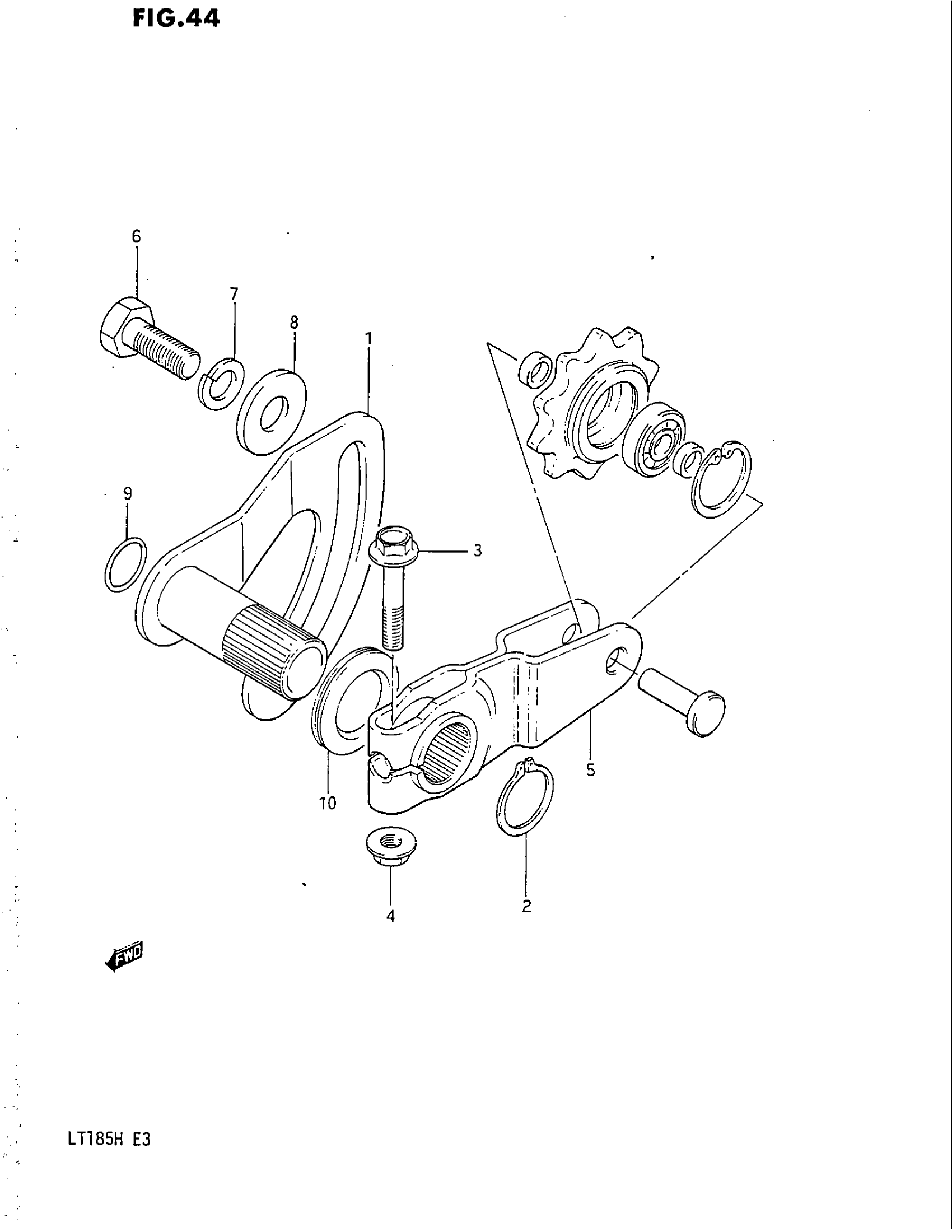

Suzuki LT185 (1987) TENSIONER Diagram

#

Description
Price

1

ARM, TENSIONER | MODEL E This part replaces 61340-24302.

61340-24303

Unavailable

1

ARM, TENSIONER | MODEL F/G/H

61340-24303

Unavailable

2

CIRCLIP This part replaces 08331-31226.

08331-31229

$2.48

3

BOLT

09103-08043

$3.18

4

NUT (CHROME) This part replaces 08316-16086.

08316-10087

$2.26

5

TENSIONER SET, CHAIN (NT:14) | MODEL E This part replaces 61300-24831.

61300-24832

Unavailable

5

TENSIONER SET, CHAIN (NT:14) | MODEL F/G/H

61300-24832

Unavailable

6

BOLT This part replaces 01107-12306.

01500-1230A

Unavailable

7

WASHER,LOCK This part replaces 08321-31126.

08321-0112A

$2.10

8

WASHER (12.5X32X4.5) This part replaces 09160-12043.

09160-12094

$3.72

9

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

10

GROMMET

09308-21001

Unavailable
