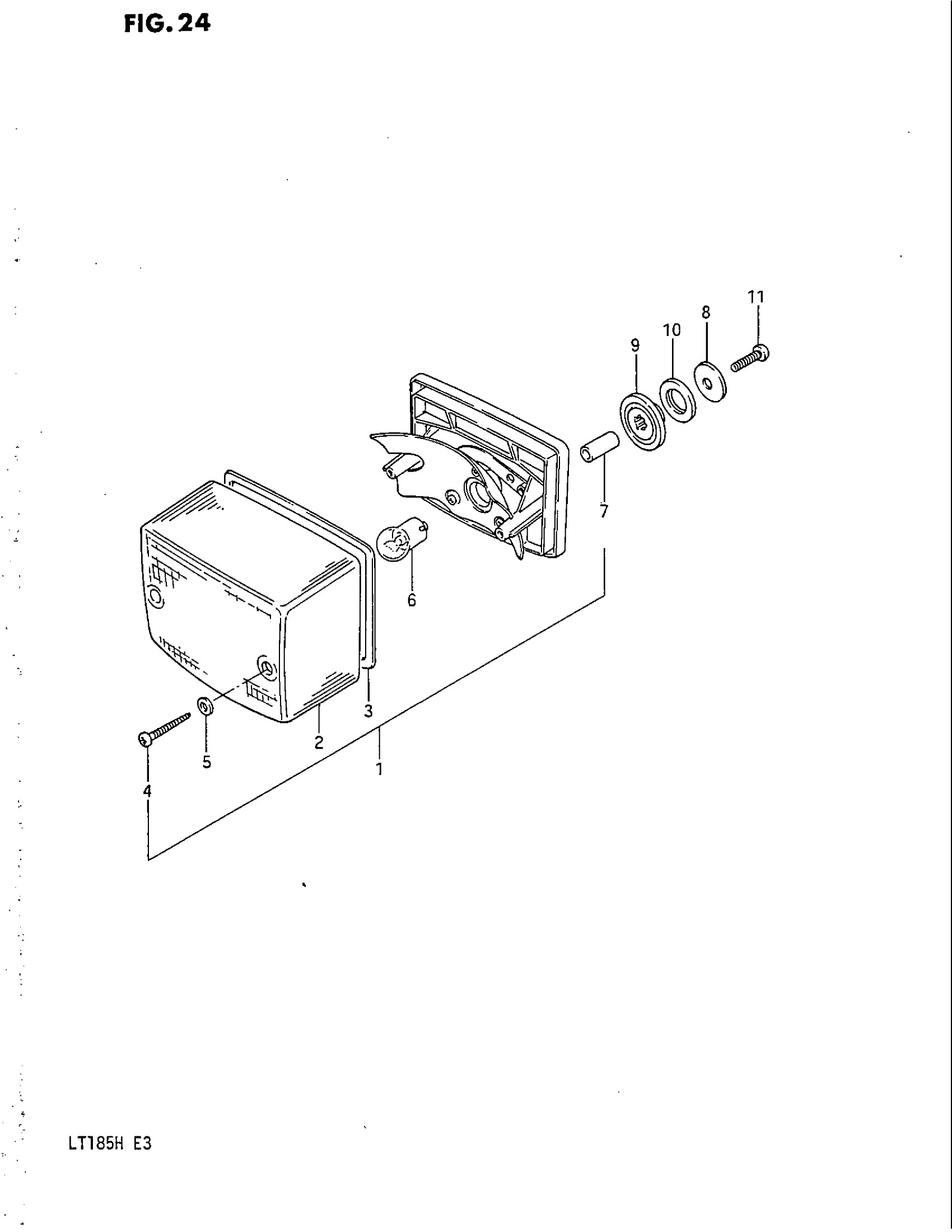

Suzuki LT185 (1987) TAIL LAMP (MODEL E) Diagram

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 35710-24431.

35710-24432-999

Unavailable

LENS

35712-46710

$39.80

GASKET

35713-48510

$6.17

SCREW This part replaces 03211-04308.

03211-04306

$1.78

GASKET

35627-43010

$2.28

BULB (12V,5W)

09471-12058

$2.33

SPACER

35766-24230

Unavailable

WASHER This part replaces 09160-05005.

09160-05047

$2.38

CUSHION

09320-09012

Unavailable

CUSHION

09320-14010

Unavailable

SCREW This part replaces 02112-05258.

02112-05257

$1.49
