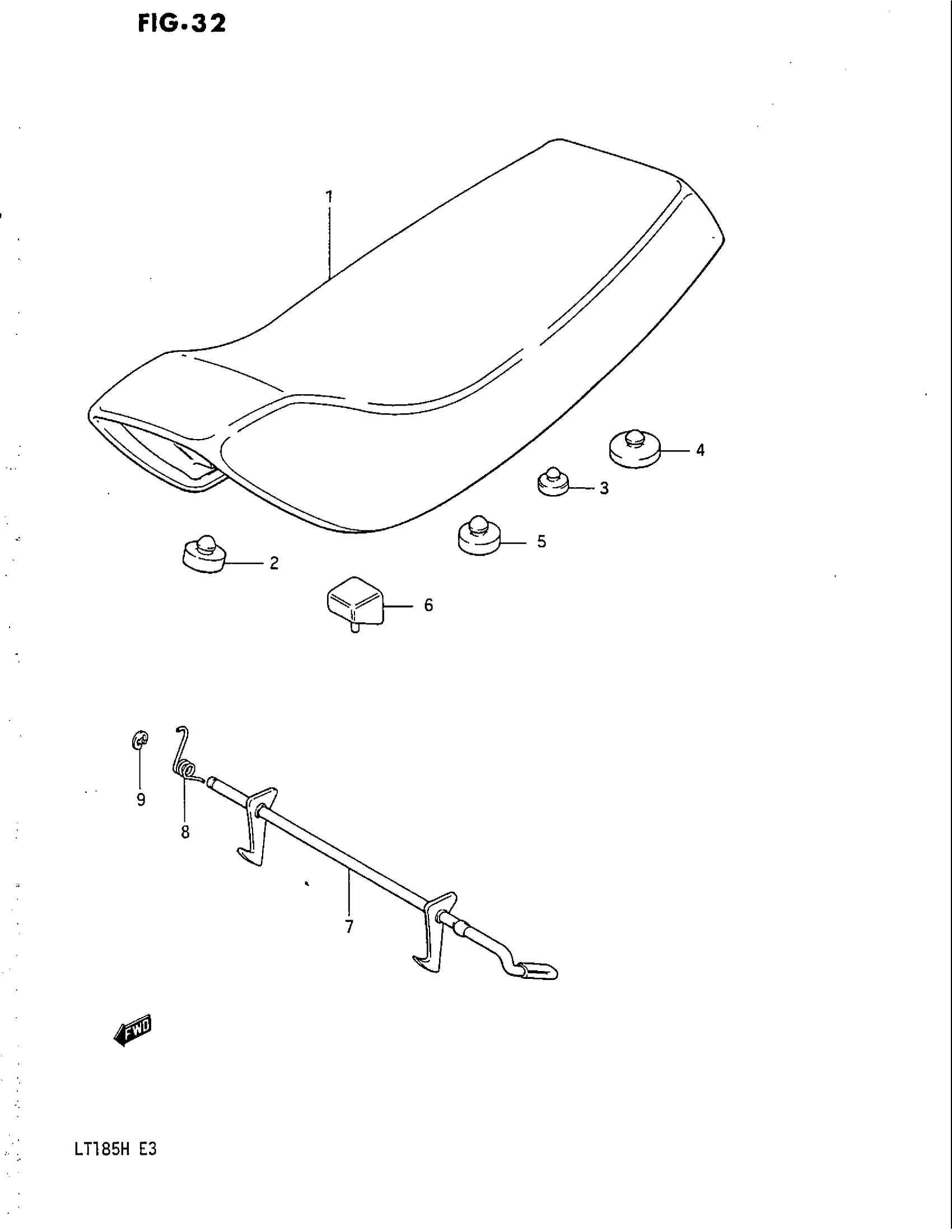

Suzuki LT185 (1987) SEAT (MODEL F/G/H) Diagram

#

Description

Price

1

SEAT ASSY (BLUE) | MODEL F This part replaces 45100-24330-48H.

45100-24331-4UZ

Unavailable

1

SEAT ASSY (BLUE) | MODEL G This part replaces 45100-24331-48H.

45100-24331-4UZ

Unavailable

1

SEAT ASSY (BLUE) | MODEL H; Includes Item(s) 2 - 9

45100-24331-4UZ

Unavailable

2

CUSHION

09321-10012

$2.92

3

CUSHION, CENTER

09321-10002

$2.22

4

CUSHION, REAR

09321-14005

Unavailable

5

CUSHION

45149-24302

Unavailable

6

CUSHION

45149-24401

Unavailable

7

CLAMP, SEAT

45210-24301

Unavailable

8

SPRING

45135-24301

Unavailable

9

CIRCLIP This part replaces 08332-11068.

08332-1106A

$1.49
