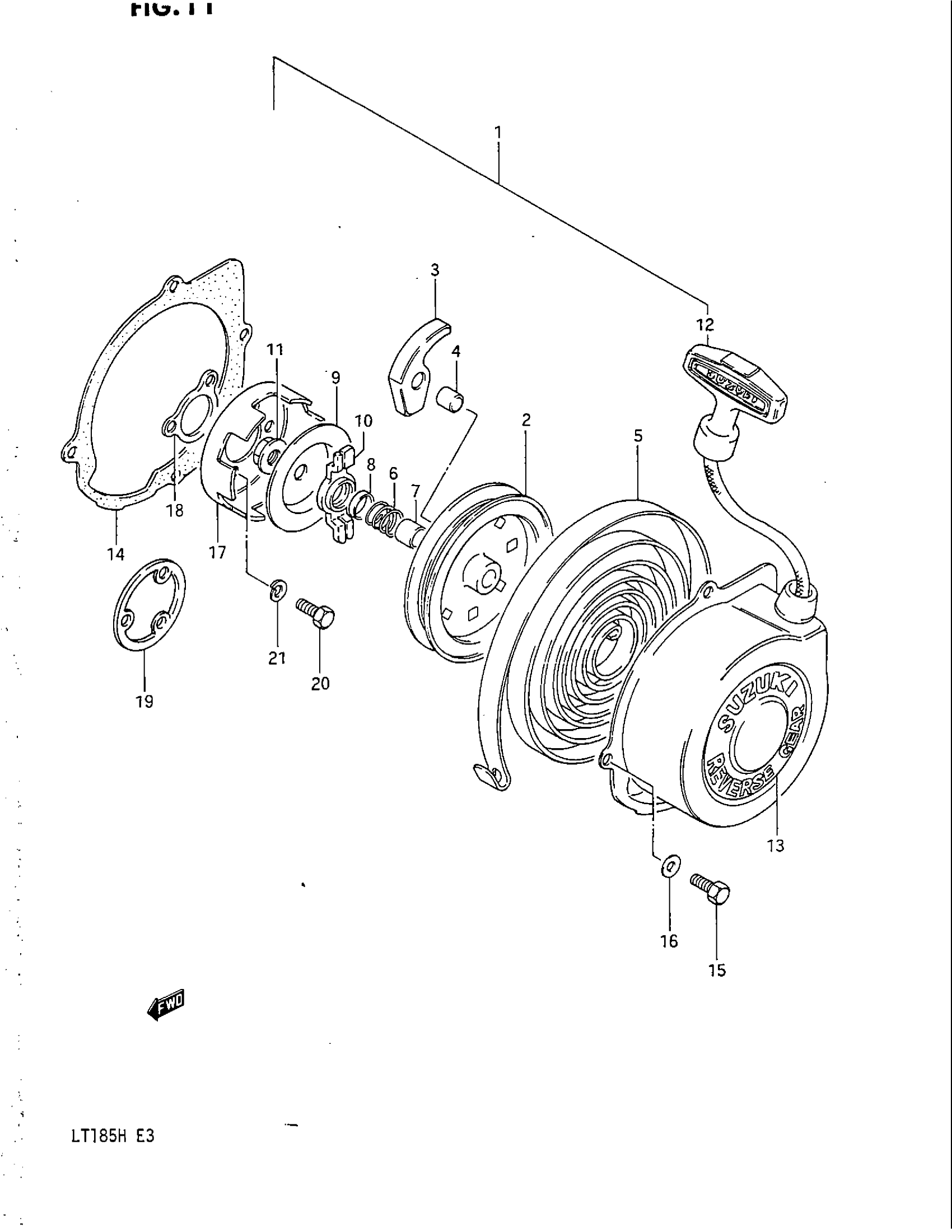

Suzuki LT185 (1987) RECOIL STARTER Diagram

#

Description
Price

1

STARTER ASSY, RECOIL | MODEL E/F

18100-24404

Unavailable

1

STARTER ASSY, RECOIL | MODEL G This part replaces 18100-24410.

18100-24404

Unavailable

1

STARTER ASSY, RECOIL | MODEL H; Includes Item(s) 2 - 13 This part replaces 18100-18910.

18100-24404

Unavailable

2

REEL

18120-24400

$35.94

3

RATCHET

18131-24411

$8.12

4

PIN, RATCHET

18344-24400

Unavailable

5

.SPRING,SPIRAL

18142-24400

$29.60

6

SPRING, FRICTION

18153-24400

Unavailable

7

SHAFT, SUB

18176-24400

Unavailable

8

COVER, SPRING

18275-24400

Unavailable

9

RATCHET SET This part replaces 18151-24400.

18130-24400

$16.96

10

..GUIDE,RATCHET

18132-24400

$2.92

11

NUT This part replaces 18334-24400.

08316-1006B

$2.50

12

ROPE ASSY

18200-24400

$34.27

13

EMBLEM This part replaces 68398-24400.

68398-24410

$13.81

14

GASKET, RECOIL STARTER

18299-18900

Unavailable

15

BOLT This part replaces 01107-06165.

01500-0616A

$1.78

16

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

17

CUP, STARTER | MODEL E/F/G

18411-24401

Unavailable

17

CUP, STARTER | MODEL H

18411-18911

Unavailable

18

SPACER | MODEL E/F/G

18511-24400

Unavailable

19

SPACER | MODEL H

18511-18900

Unavailable

20

BOLT This part replaces 01107-06128.

01500-06127

$1.97

21

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
