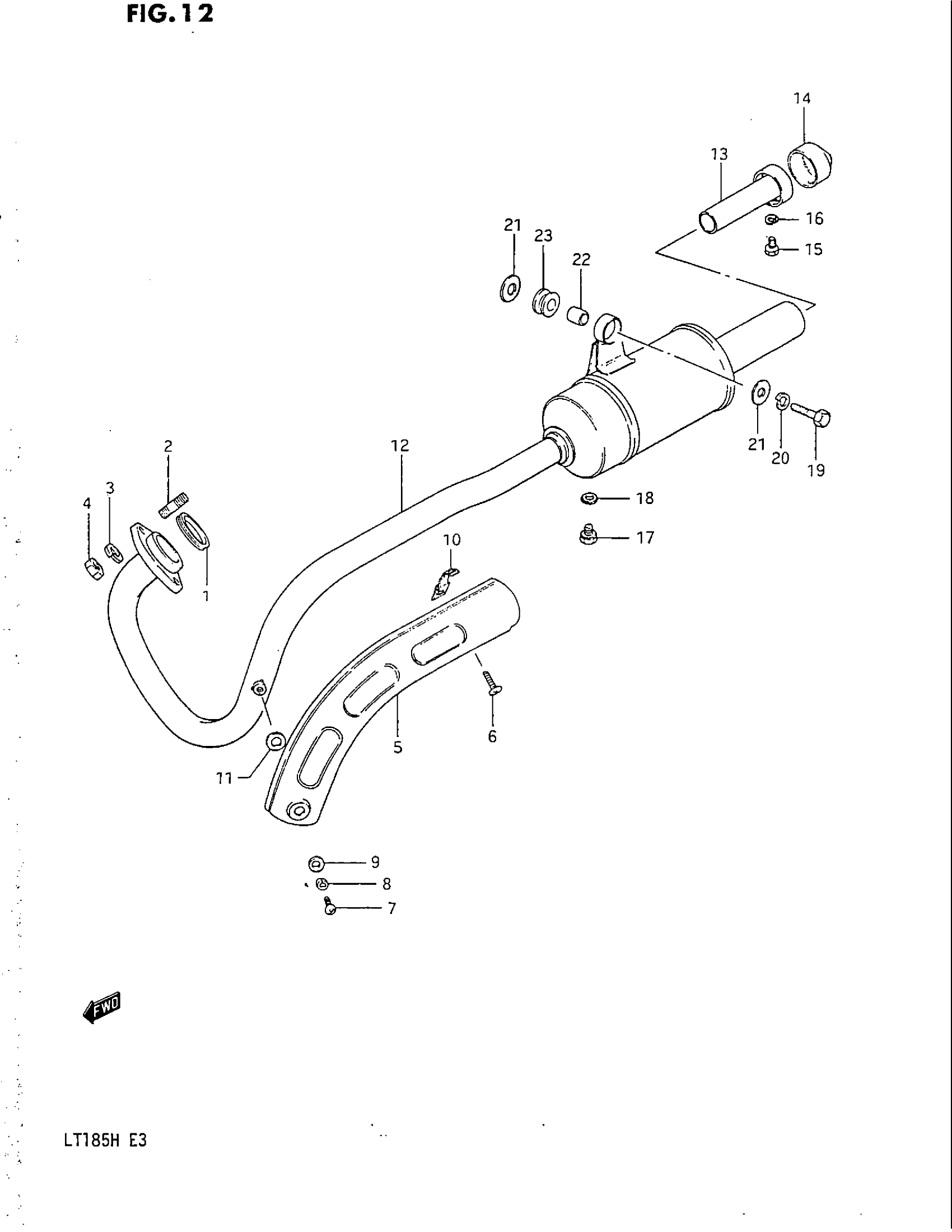

Suzuki LT185 (1987) MUFFLER Diagram

#

Description
Price

1

.GASKET,EXHAUST This part replaces 14181-05020.

14181-18C00

$7.22

2

STUD BOLT This part replaces 01421-08208.

01421-0820A

$1.91

3

LOCK WASHER | MODEL E/F/G This part replaces 08321-21084.

08321-0108A

$1.84

4

NUT | MODEL E/F/G This part replaces 08310-11085.

08310-0008A

$1.84

4

NUT | MODEL H This part replaces 08361-15085.

08361-1508A

$2.02

5

COVER

14180-18910

Unavailable

6

SCREW This part replaces 02112-05205.

02112-0520B

$1.84

7

SCREW This part replaces 02112-06104.

02112-0610B

$1.84

8

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

9

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

10

CLAMP

14185-05200

Unavailable

11

GASKET,MUFFLER This part replaces 09168-06005.

09168-06105

$2.12

12

MUFFLER ASSY | Includes Item(s) 13 - 18

14301-24401-H01

Unavailable

13

TUBE, CLEAN OUT

14850-24500

Unavailable

14

CUTTER, MUFFLER TAIL

14642-24400

Unavailable

15

BOLT This part replaces 01107-06104.

01500-0610B

$1.81

16

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

17

PLUG

09247-12103

$2.84

18

GASKET

09168-12002

$1.59

19

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

21

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

22

SPACER This part replaces 09180-08102.

09180-08194

$3.05

23

CUSHION, EXHAUST SUPPORT This part replaces 09320-12026.

09320-12043

$7.98
