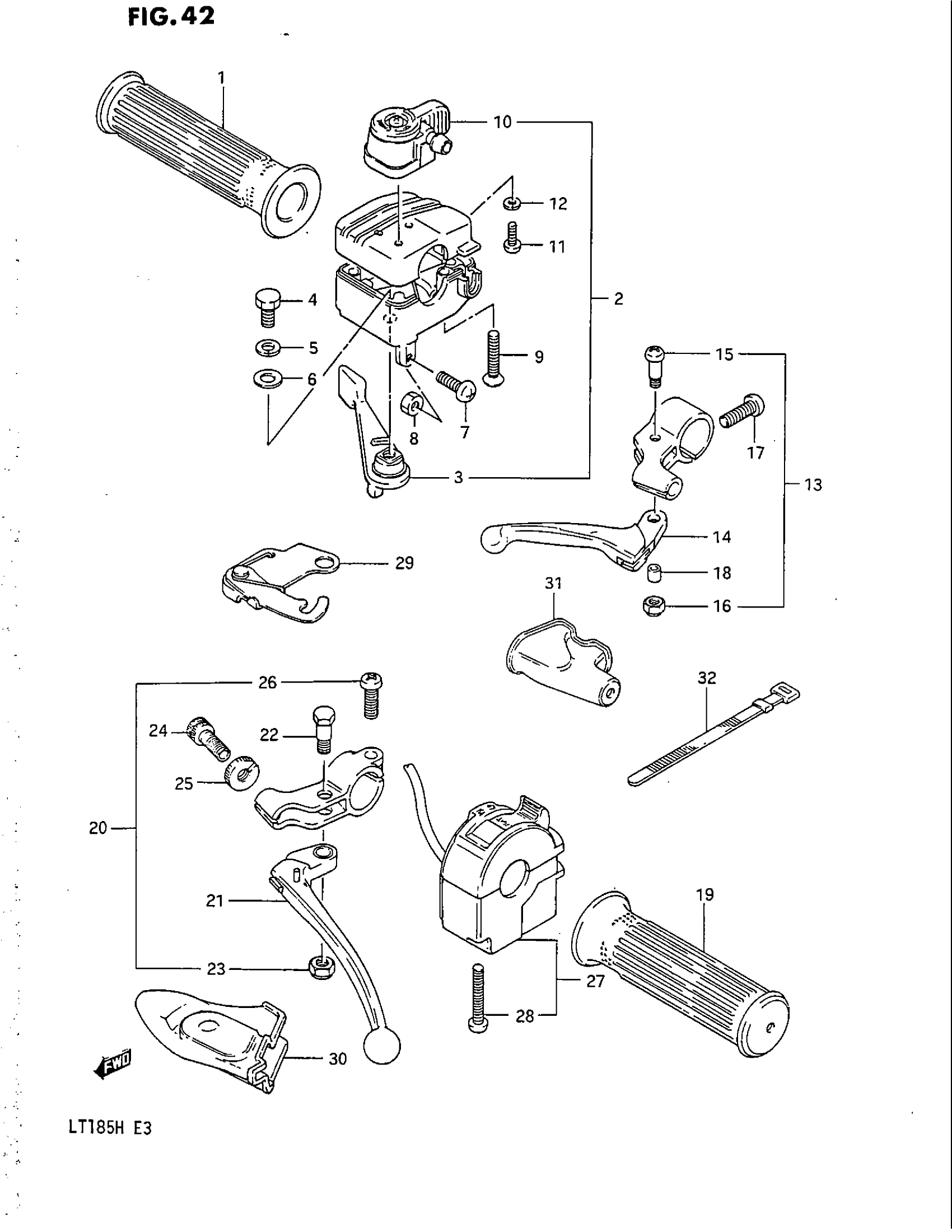

Suzuki LT185 (1987) HANDLE SWITCH (MODEL H) Diagram

#

Description
Price

1

GRIP

57211-24201

Unavailable

2

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 - 12 This part replaces 57100-18B00.

57100-18B11

Unavailable

3

LEVER

57151-24301

$12.95

4

BOLT This part replaces 01107-06166.

01500-0616A

$1.78

5

LOCK WASHER This part replaces 08321-31066.

08321-0106A

$1.84

6

WASHER

09160-06019

$1.49

7

.SCREW (5X25) This part replaces 02112-05254.

09125-05066

$1.65

8

.NUT This part replaces 08310-21055.

09140-05006

$2.19

9

SCREW This part replaces 02132-05305.

02132-0530B

Unavailable

10

CHOKE ASSY

58700-18B00

Unavailable

11

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

12

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.84

13

LEVER ASSY, DECOMPRESSION | Includes Item(s) 14 - 18

58700-24400

Unavailable

14

LEVER

58731-24400

Unavailable

15

SCREW

57431-24400

Unavailable

16

.NUT This part replaces 08319-21055.

08319-2105A

$2.19

17

SCREW This part replaces 02112-06205.

02112-0620A

$1.49

18

SPACER

58741-24400

Unavailable

19

GRIP

57211-24201

Unavailable

20

LEVER ASSY, REAR BRAKE | Includes Item(s) 21 - 26

57500-24200

Unavailable

21

LEVER,BRAKE This part replaces 57620-24200.

57620-29500

Unavailable

22

BOLT This part replaces 57431-24200.

57431-29502

$7.67

23

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

24

ADJUSTER

57441-11010

$5.62

25

NUT

57442-11010

$2.79

26

SCREW This part replaces 02112-06205.

02112-0620A

$1.49

27

SWITCH ASSY, LH | Includes Item(s) 28 This part replaces 37400-19A00.

37400-19A01

Unavailable

28

SCREW

02112-05357

$1.49

29

STOPPER, BRAKE

57790-18900

Unavailable

30

COVER, BRAKE DUST This part replaces 57541-29500.

57541-29501

$10.23

31

COVER, DECOMP LEVER

57342-37101

$11.95

32

BAND

09407-12402

$3.04
