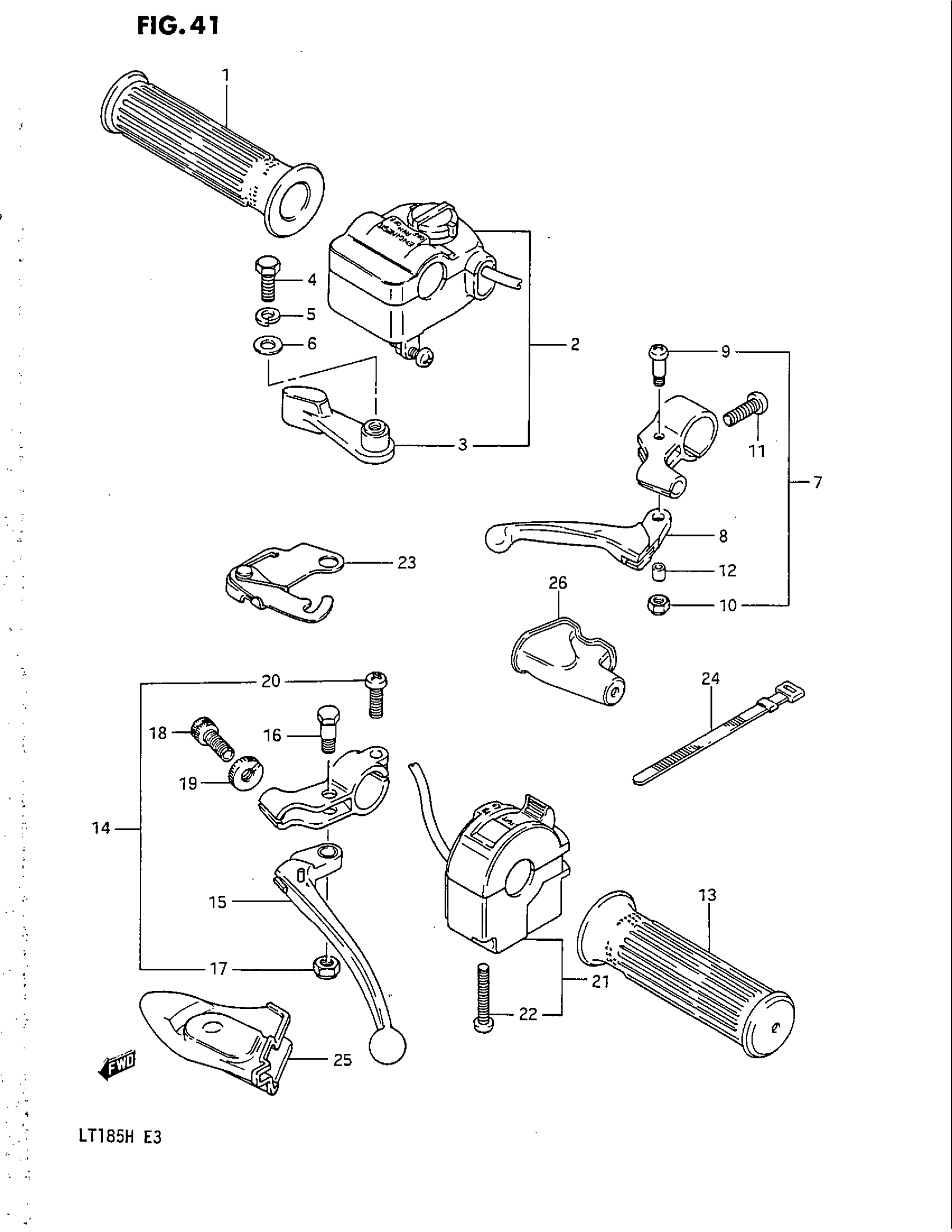

Suzuki LT185 (1987) HANDLE SWITCH (MODEL E/F/G) Diagram

#

Description
Price

1

GRIP | MODEL E This part replaces 57211-24200.

57211-24201

Unavailable

1

GRIP | MODEL F/G

57211-24201

Unavailable

2

THROTTLE CASE ASSY | MODEL E/F This part replaces 57100-24311.

57100-24312

Unavailable

2

THROTTLE CASE ASSY | MODEL G; Includes Item(s) 3 - 6

57100-24312

Unavailable

3

LEVER

57151-24301

$12.95

4

BOLT This part replaces 01107-06166.

01500-0616A

$1.78

5

LOCK WASHER This part replaces 08321-31066.

08321-0106A

$1.84

6

WASHER

09160-06019

$1.49

7

LEVER ASSY, DECOMPRESSION | Includes Item(s) 8 - 12

58700-24400

Unavailable

8

LEVER

58731-24400

Unavailable

9

SCREW

57431-24400

Unavailable

10

.NUT This part replaces 08319-21055.

08319-2105A

$2.19

11

SCREW This part replaces 02112-06205.

02112-0620A

$1.49

12

SPACER

58741-24400

Unavailable

13

GRIP | MODEL E This part replaces 57211-24200.

57211-24201

Unavailable

13

GRIP | MODEL F/G

57211-24201

Unavailable

14

LEVER ASSY, REAR BRAKE | Includes Item(s) 15 - 20

57500-24200

Unavailable

15

LEVER,BRAKE This part replaces 57620-24200.

57620-29500

Unavailable

16

BOLT This part replaces 57431-24200.

57431-29502

$7.67

17

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

18

ADJUSTER, CABLE

57441-11010

$5.62

19

NUT, CABLE ADJUSTER

57442-11010

$2.79

20

SCREW This part replaces 02112-06205.

02112-0620A

$1.49

21

NO DESCRIPTION AVAILABLE | MODEL E/F This part replaces 37400-24400.

37400-24402

Unavailable

21

NO DESCRIPTION AVAILABLE | MODEL G; Includes Item(s) 22 This part replaces 37400-24401.

37400-24402

Unavailable

22

SCREW This part replaces 02112-05358.

02112-05357

$1.49

23

STOPPER, BRAKE LEVER

57790-18900

Unavailable

24

BAND

09407-12402

$3.04

25

COVER, BRAKE DUST This part replaces 57541-29500.

57541-29501

$10.23

26

COVER, DECOMP LEVER

57342-37101

$11.95
