Partiron

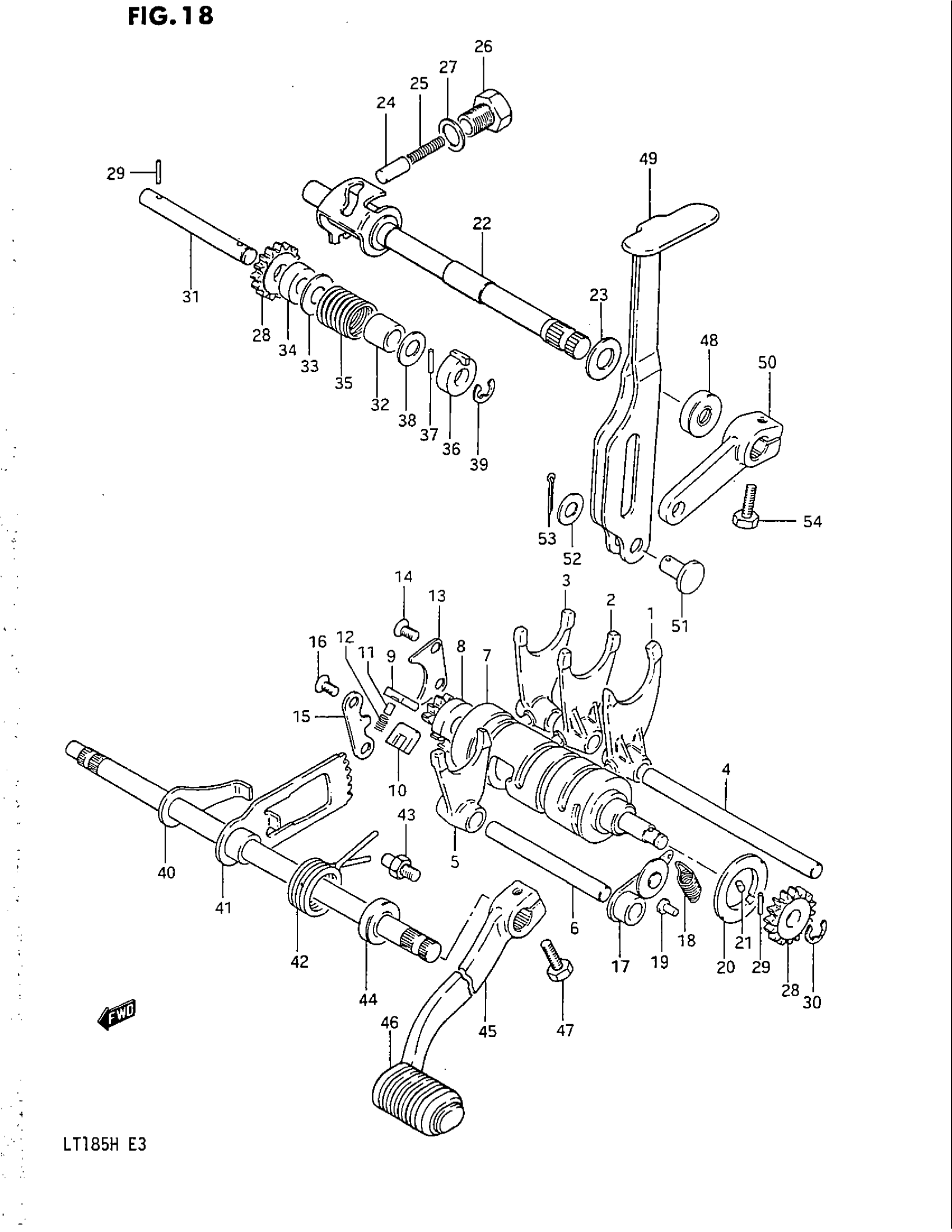

Suzuki LT185 (1987) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING, NO.1 | ~E.NO.103175

25211-24201

Unavailable

1

FORK, GEAR SHIFTING, NO.1 | E.NO.103176~

25211-24400

Unavailable

2

FORK, GEAR SHIFTING, NO.2 | ~E.NO.135743

25221-24200

Unavailable

2

FORK, GEAR SHIFTING, NO.2 | E.NO.135744~

25221-24400

Unavailable

3

FORK, GEAR SHIFTING, NO.4 | MODEL E/F

25241-24401

Unavailable

3

FORK, GEAR SHIFTING, NO.4 | MODEL G/H

25241-18A01

Unavailable

4

SHAFT, GEAR SHIFT FORK NO.1 | MODEL E/F This part replaces 25411-31301.

25411-18900

$23.07

4

SHAFT, NO.1 (L:129) | MODEL G/H

25411-24210

Unavailable

5

FORK, GEAR SHIFTING, NO.3 | ~E.NO.101824TO 25231-24401WITH 24231-24405 This part replaces 25231-24400.

25231-24401

Unavailable

5

FORK, GEAR SHIFTING, NO.3 | E.NO.101825~

25231-24401

Unavailable

6

SHAFT, NO.2 This part replaces 25411-14330.

25411-14331

$23.07

7

CAM, GEAR SHIFTING | MODEL E/F

25310-24204

Unavailable

7

CAM, GEAR SHIFTING | MODEL G/H

25310-24220

Unavailable

8

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

$26.93

9

PAWL, GEAR SHIFT NO.1 This part replaces 25323-34200.

25323-34201

$7.22

10

PAWL, GEAR SHIFT NO.2 This part replaces 25324-34200.

25324-34201

$7.22

11

PIN

09261-05003

$1.54

12

SPRING

09440-04003

$1.54

13

LIFTER, PAWL

25331-37400

Unavailable

14

SCREW This part replaces 02122-06128.

02122-06127

$1.84

15

GUIDE, CAM

25341-40001

$12.17

16

SCREW This part replaces 02122-06128.

02122-06127

$1.84

17

STOPPER, CAM

25350-11300

Unavailable

18

SPRING

09443-10022

$2.53

19

HOOK

09223-04001

$1.68

20

PLATE, STOPPER

25381-45000

Unavailable

21

PIN This part replaces 06211-04063.

04221-04069

$2.12

22

CAM, REVERSE SHIFTING | MODEL E/F

25320-24402

Unavailable

22

CAM, REVERSE SHIFTING | MODEL G/H

25320-24210

Unavailable

23

WASHER

08211-12223

$2.12

24

STOPPER, CAM This part replaces 25351-11000.

25351-11010

$7.22

25

SPRING

09440-05007

$1.82

26

HOLDER, STOPPER

25352-11010

$7.22

27

GASKET

09168-14004

$1.83

28

GEAR, GEAR POSITION INDICATOR

25362-18900

Unavailable

29

PIN

09261-03010

Unavailable

30

CIRCLIP This part replaces 08332-11068.

08332-1106A

$1.49

31

SHAFT, GEAR POSITION INDICATO

25363-24200

Unavailable

32

NO DESCRIPTION AVAILABLE This part replaces 09180-08085.

09180-08203

Unavailable

33

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

$1.49

34

OIL SEAL (8X17X5)

09284-08001

$2.42

35

SPRING This part replaces 09440-17007.

09440-17007-XC0

Unavailable

36

INDICATOR, GEAR POSITION

25360-18900

Unavailable

37

PIN

09261-03010

Unavailable

38

WASHER This part replaces 08322-11088.

08322-01087

$2.13

39

CIRCLIP This part replaces 08332-11068.

08332-1106A

$1.49

40

SHAFT, GEAR SHIFTING | MODEL E/F

25510-24301

Unavailable

40

SHAFT, GEAR SHIFTING | MODEL G/H

25510-24210

Unavailable

41

GEAR, CAM DRIVE

25540-24200

Unavailable

42

SPRING This part replaces 09444-26018.

09444-26025

$5.33

43

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

44

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

45

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 46 This part replaces 25600-24401.

25610-18A00

Unavailable

46

COVER

25652-24401

$5.05

47

BOLT This part replaces 09100-06091.

01500-06207

$2.28

48

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

49

LEVER, GEAR SHIFTING NO.2 | MODEL E/F

25620-24202

Unavailable

49

LEVER, GEAR SHIFTING NO.2 | MODEL G/H

25620-24220

Unavailable

50

ARM

25520-24201

Unavailable

51

PIN

09200-08025

Unavailable

52

WASHER (8.5X16.5X0.8)

09181-08002

Unavailable

53

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

54

BOLT This part replaces 09100-06091.

01500-06207

$2.28
