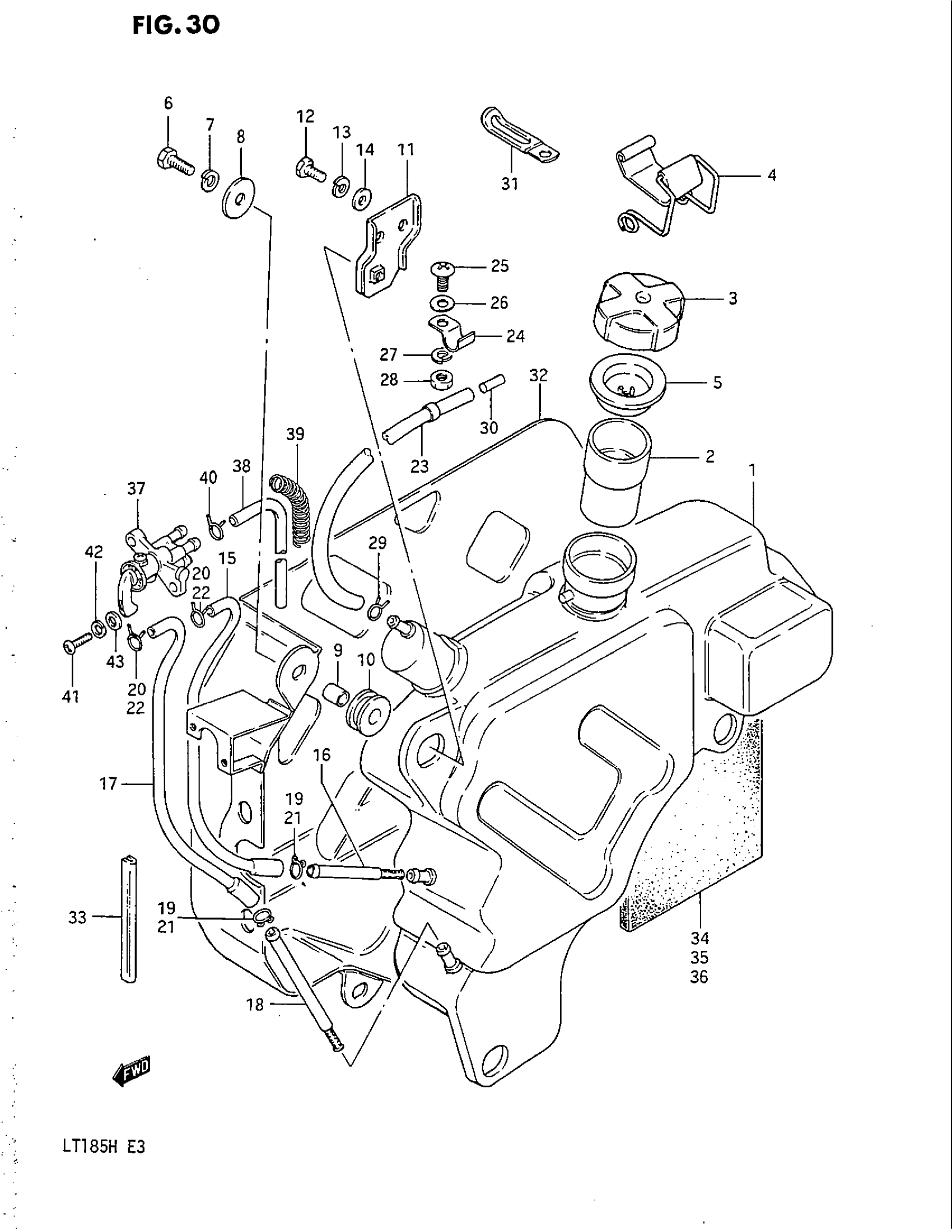

Suzuki LT185 (1987) FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

44111-24400

Unavailable

2

INLET, FUEL TANK | MODEL E

44117-24400

Unavailable

3

CAP, FUEL TANK

44211-24400

Unavailable

4

SPRING | MODEL E This part replaces 44240-24400.

44240-18B00

Unavailable

4

SPRING | MODEL F/G/H This part replaces 44240-24401.

44240-18B00

Unavailable

5

GASKET This part replaces 44248-40400.

44248-05211

$3.76

6

BOLT This part replaces 01107-06257.

01500-06257

$1.97

7

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

8

WASHER This part replaces 08322-21067.

08322-01067

$2.13

9

SPACER (6.2X12X14) | MODEL E/F/G This part replaces 09180-06088.

09180-06174

$5.57

9

SPACER | MODEL H

09180-06174

$5.57

10

CUSHION

09320-12016

$2.11

11

PLATE, FUEL TANK, FRONT

44521-24400

Unavailable

12

BOLT This part replaces 01107-06127.

01500-06127

$1.97

13

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

14

WASHER This part replaces 08322-21067.

08322-01067

$2.13

15

HOSE(5X8.2X600) | MODEL E/F This part replaces 09343-05096.

09359-50824-600

$7.98

15

HOSE, CANISTER & PURGE | MODEL G This part replaces 09343-05367.

09359-54111-600

$25.80

15

HOSE, FUEL, "ON" | MODEL H

09343-05270

Unavailable

16

FILTER, FUEL, "ON"

44322-27001

$5.05

17

HOSE(5X8.2X600) | MODEL E/F This part replaces 09343-05096.

09359-50824-600

$7.98

17

HOSE, CANISTER & PURGE | MODEL G This part replaces 09343-05368.

09359-54111-600

$25.80

17

HOSE, FUEL, "RES" | MODEL H

09343-05270

Unavailable

18

FILTER, FUEL, "RES"

44323-24400

Unavailable

19

CLIP | MODEL E

09401-10403

$1.65

19

CLIP | MODEL F

09401-10402

$2.42

20

CLIP | MODEL E/F

09401-08402

$1.49

21

CLIP | MODEL G/H

09401-12404

$2.34

22

CLIP (ID:10.5,H:8) | MODEL G/H

09401-10409

$2.26

23

HOSE, BREATHER

09343-05270

Unavailable

24

CLAMP

09403-09306

Unavailable

25

SCREW

02142-06167

$1.49

26

WASHER This part replaces 08322-21067.

08322-01067

$2.13

27

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

28

.NUT This part replaces 08310-11067.

08310-00067

$2.13

29

CLIP

09401-08402

$1.49

30

PIN | MODEL E

09205-06007

$2.24

30

PIN | MODEL F/G/H This part replaces 09205-06012.

09205-06007

$2.24

31

CLAMP(L:80) | MODEL E This part replaces 09404-06404.

09404-06036

$1.74

31

CLAMP | MODEL F/G This part replaces 09404-06413.

09404-06039

$1.74

31

CLAMP | MODEL H This part replaces 09404-06403.

09404-06039

$1.74

32

GUARD, FUEL TANK | MODEL E This part replaces 44570-24400.

44570-24401

Unavailable

32

GUARD, FUEL TANK | MODEL F/G/H

44570-24401

Unavailable

33

MOLD, FUEL TANK GUARD

44579-24400

Unavailable

34

CUSHION, NO.1

44575-24300

Unavailable

35

CUSHION, NO.2

44576-24300

Unavailable

36

CUSHION, NO.3

44577-24300

Unavailable

37

COCK ASSY,FUEL | MODEL E This part replaces 44300-24470.

44300-17271

Unavailable

37

COCK ASSY,FUEL | MODEL F/G/H This part replaces 44300-24471.

44300-17271

Unavailable

38

HOSE | MODEL E/F/G This part replaces 09343-05271.

09352-50005-00B

$13.93

38

HOSE | MODEL H This part replaces 09343-05165.

09352-50005-00B

$13.93

39

SPRING

09440-10012

Unavailable

40

CLIP

09401-08402

$1.49

41

SCREW This part replaces 02112-05208.

02112-05207

$1.97

42

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

43

WASHER This part replaces 08322-21057.

08322-01057

$2.13
