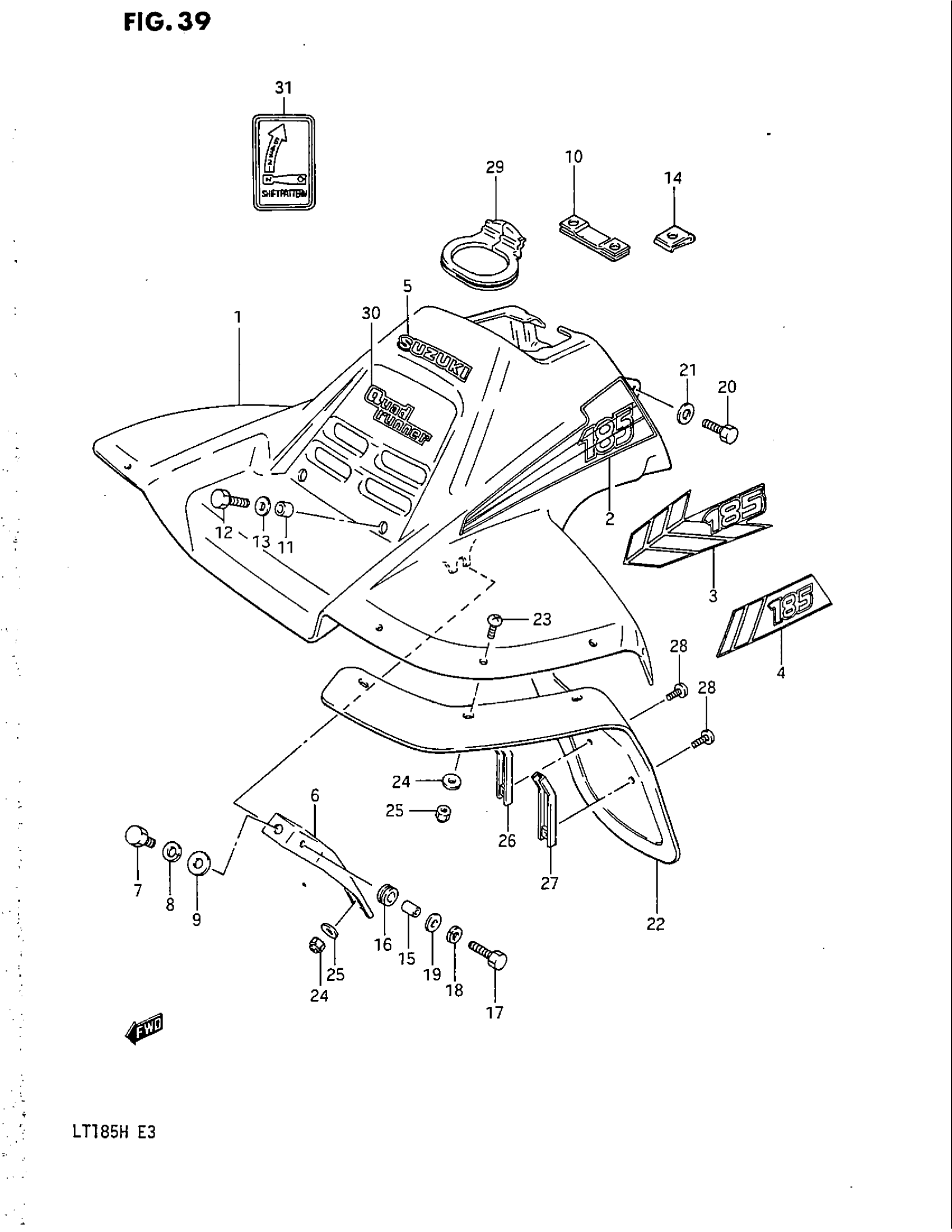

Suzuki LT185 (1987) FRONT FENDER (MODEL F/G/H) Diagram

#

Description
Price

1

FENDER, FRONT (ORANGE) | MODEL F This part replaces 53111-18910-00N.

53111-18900-25G

Unavailable

1

FENDER, FRONT (ORANGE) | MODEL G/H This part replaces 53111-18910-25G.

53111-18900-25G

Unavailable

2

TAPE SET | MODEL F

68150-24420-96W

Unavailable

3

TAPE SET | MODEL G

68150-24430-7ZG

Unavailable

4

TAPE SET | MODEL H

68150-24440-32F

Unavailable

5

EMBLEM | MODEL F

68151-18900-92R

Unavailable

6

BRACKET, FRONT FENDER, RH

53213-18901

Unavailable

6

BRACKET, FRONT FENDER, LH

53243-18901

Unavailable

7

BOLT This part replaces 01107-06125.

01500-0612A

$1.78

8

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

9

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

10

PLATE

53280-18900

Unavailable

11

SPACER, REAR This part replaces 09180-08110.

09180-08184

$3.16

12

BOLT

01204-08207

$2.30

13

WASHER (8.5X20X1.6) This part replaces 09160-08072.

09160-08054

$1.49

14

NUT

09148-04015

$2.36

15

SPACER, CENTER (6.2X8.3X5.7)

09180-06001

$2.30

16

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

17

BOLT This part replaces 01107-06207.

01500-06207

$2.28

18

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

19

WASHER This part replaces 09160-06007.

09160-06084

$1.78

20

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

21

WASHER This part replaces 09160-06007.

09160-06084

$1.78

22

MUDFLAP

53311-24400

Unavailable

23

SCREW

02142-06207

$1.49

24

WASHER This part replaces 09160-06006.

09160-06084

$1.78

25

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

26

PLATE, MUDFLAP, INNER

53420-24401

Unavailable

27

PLATE, MUDFLAP, OUTER

53430-24401

Unavailable

28

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

29

GROMMET, CABLE

58627-18901

Unavailable

30

EMBLEM, FENDER NAME (ORANGE) | MODEL F This part replaces 68233-18920-7HF.

68233-24500-20R

Unavailable

30

EMBLEM, FENDER NAME | MODEL G/H

68233-18930-73J

Unavailable

31

LABEL, GEAR SHIFT | MODEL H

68392-24210

$2.92
