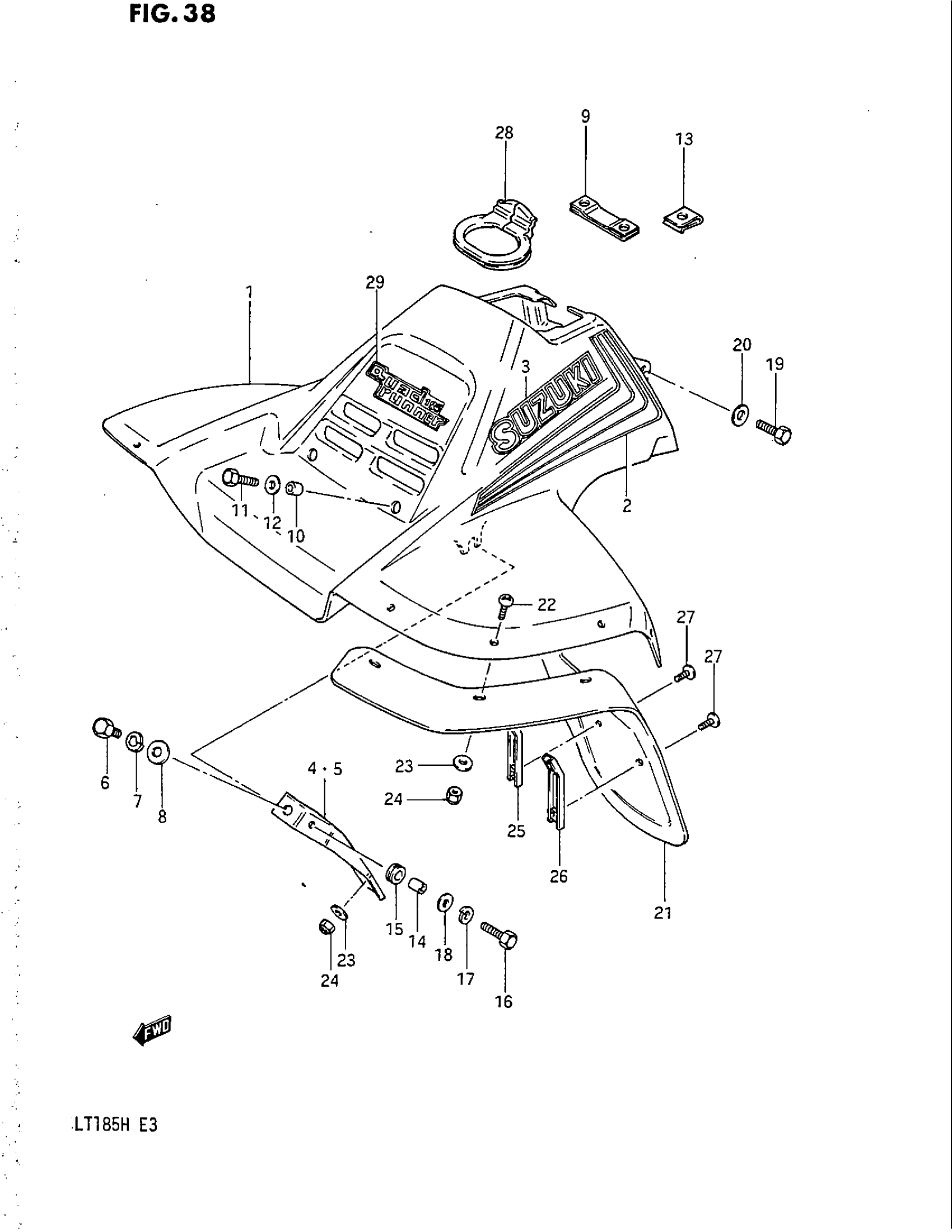

Suzuki LT185 (1987) FRONT FENDER (MODEL E) Diagram

#

Description
Price

1

FENDER, FRONT (ORANGE) This part replaces 53111-18910-00N.

53111-18900-25G

Unavailable

2

TAPE SET

68150-24400-96W

Unavailable

3

EMBLEM

68111-18901-94A

Unavailable

4

BRACKET, FRONT FENDER, RH

53213-18901

Unavailable

5

BRACKET, FRONT FENDER, LH

53243-18901

Unavailable

6

BOLT This part replaces 01107-06125.

01500-0612A

$1.78

7

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

8

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

9

PLATE

53280-18900

Unavailable

10

SPACER, REAR This part replaces 09180-08110.

09180-08184

$3.16

11

BOLT

01204-08207

$2.30

12

WASHER (8.5X20X1.6) This part replaces 09160-08072.

09160-08054

$1.49

13

NUT

09148-04015

$2.36

14

SPACER, CENTER (6.2X8.3X5.7)

09180-06001

$2.30

15

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

16

BOLT This part replaces 01107-06207.

01500-06207

$2.28

17

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

18

WASHER This part replaces 09160-06007.

09160-06084

$1.78

19

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

20

WASHER This part replaces 09160-06007.

09160-06084

$1.78

21

MUDFLAP

53311-24400

Unavailable

22

SCREW

02142-06207

$1.49

23

WASHER This part replaces 09160-06007.

09160-06084

$1.78

24

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

25

PLATE, MUDFLAP, INNER This part replaces 53420-24400.

53420-24401

Unavailable

26

PLATE, MUDFLAP, OUTER This part replaces 53430-24400.

53430-24401

Unavailable

27

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

28

GROMMET, CABLE This part replaces 58627-18900.

58627-18901

Unavailable

29

NO DESCRIPTION AVAILABLE This part replaces 68233-24401-20R.

68233-24402-20R

Unavailable
