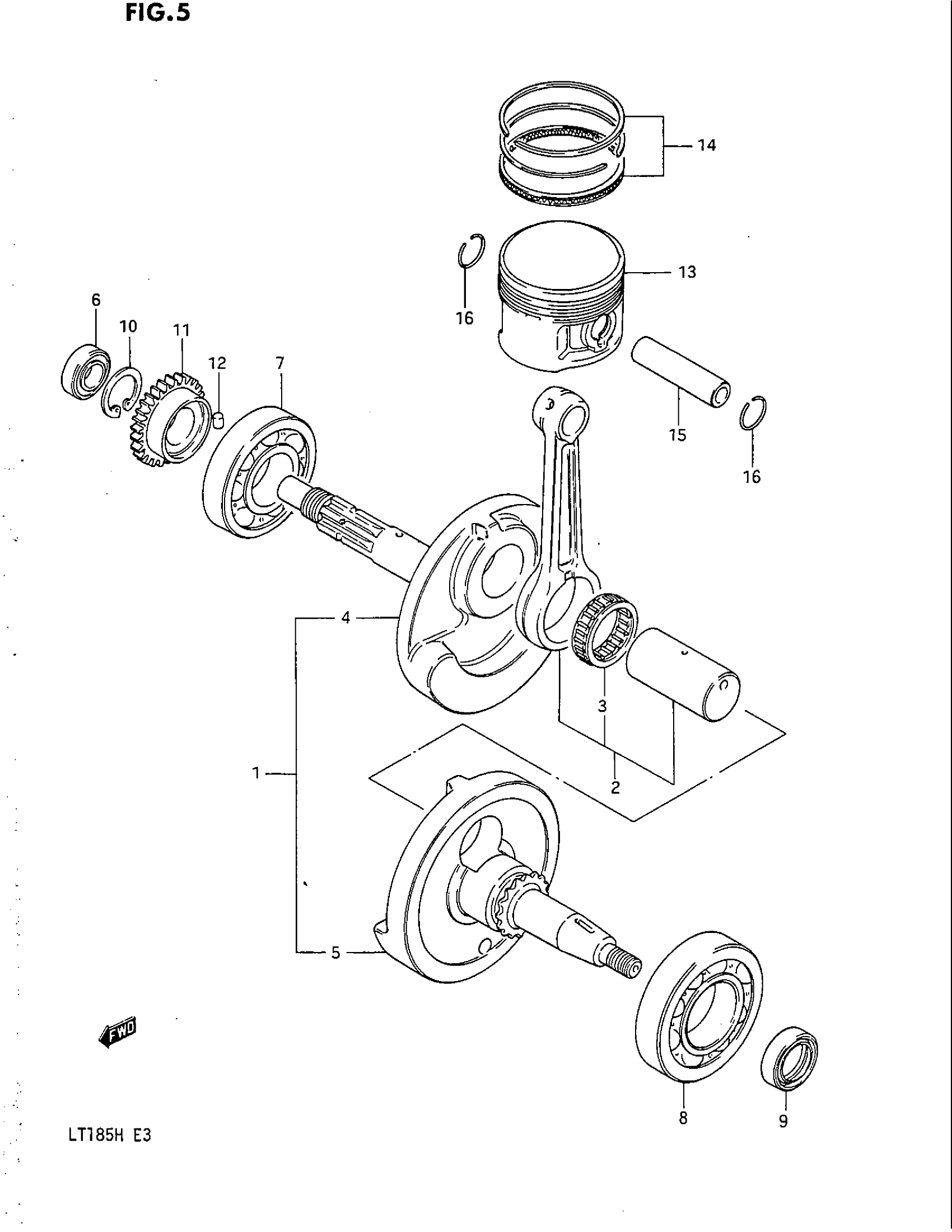

Suzuki LT185 (1987) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 5

12200-24403

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 12200-24822.

12105-24811

Unavailable

3

BEARING (28X36X15.8) This part replaces 09263-28022-0B0.

09263-28027-0B0

Unavailable

4

CRANKSHAFT, RH

12221-24402

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 12261-24402.

12261-24403

Unavailable

6

BEARING, RH

09262-12004

Unavailable

7

BEARING, MDL

09262-28014

$57.95

8

BEARING (35X72X17) This part replaces 09262-35034.

09262-35038

$46.10

9

OIL SEAL, LH

09283-20037

$6.97

10

CIRCLIP This part replaces 08331-21289.

08331-41289

$2.68

11

GEAR, OIL PUMP DRIVE

16321-18902

Unavailable

12

PIN This part replaces 06211-03052.

04221-03059

$1.72

13

PISTON

12111-24400

$98.40

13

PISTON SET,OS:0 | OPT This part replaces 12111-24400-050.

12103-24830-050

$119.90

13

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-24400-100.

12103-24830-100

Unavailable

14

RING SET, PISTON

12140-24410

Unavailable

14

RING SET, PISTON (OS:0.5) | OPT

12140-24410-050

Unavailable

14

RING SET, PISTON (OS:1.0) | OPT

12140-24410-100

Unavailable

15

PIN, PISTON

12151-24402-0A0

Unavailable

16

RING

09381-14001

$1.49
