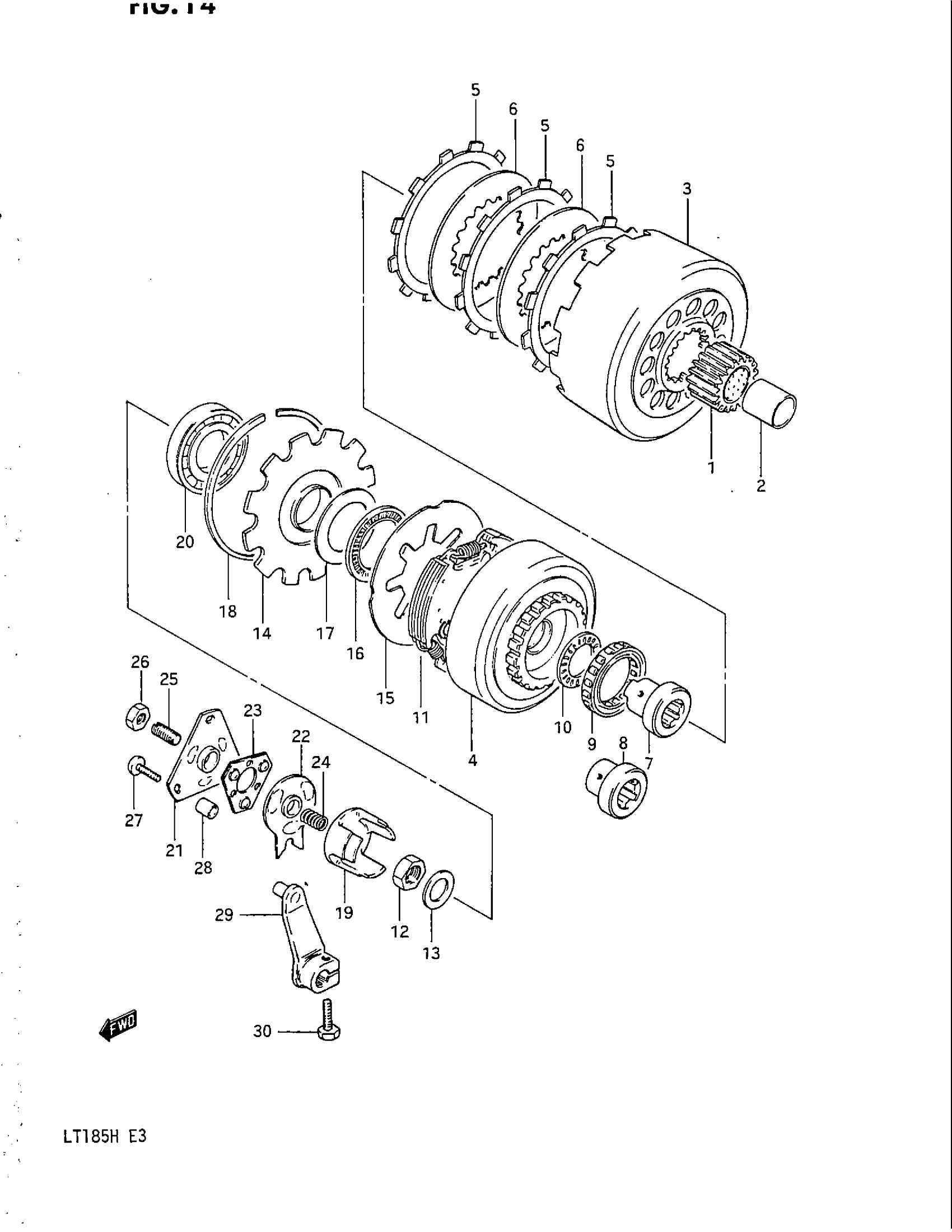

Suzuki LT185 (1987) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (NT:19)

21110-24200

Unavailable

2

SPACER

09180-20076

Unavailable

3

HOUSING, CLUTCH

21221-24303

Unavailable

4

HUB, SLEEVE

21410-24401

Unavailable

5

PLATE, CLUTCH DRIVE This part replaces 21441-13A00.

21441-13A01

$14.73

6

PLATE, DRIVEN

21451-24301

Unavailable

7

INNER RACE | MODEL E/F

21631-24303

Unavailable

8

INNER RACE | MODEL G/H

21631-24210

Unavailable

9

CLUTCH, ONE WAY

21273-01401

Unavailable

10

THRUST BEARING (25X41.6X2)

09263-25038

Unavailable

11

SHOE CLUTCH ASS | MODEL E/FTO 21500-24410WITH 21631-24210 This part replaces 21500-24401.

21500-24412

Unavailable

11

SHOE CLUTCH ASS | MODEL G/H This part replaces 21500-24410.

21500-24412

Unavailable

12

NUT This part replaces 09140-16014.

09140-16005

$3.75

13

LOCK WASHER

09164-16002

$3.16

14

PLATE, PRESSURE

21461-24302

Unavailable

15

WAVE WASHER

09164-49005

Unavailable

16

THRUST BEARING

09263-40002

Unavailable

17

WASHER (40X55X1.2)

09181-40003

Unavailable

18

RING

09381-00005

Unavailable

19

PIECE, PUSH

23120-24304

Unavailable

20

BEARING (40X68X9)

09262-40004

Unavailable

21

GUIDE, OUTER BALL

23231-24200

Unavailable

22

GUIDE, INNER BALL

23211-24201

Unavailable

23

BALL, RELEASE

23250-31003

$28.18

24

SPRING

09440-10003

Unavailable

25

SCREW, ADJUSTER

09134-08009

$3.87

26

NUT This part replaces 08310-22088.

08310-00087

$2.13

27

SCREW This part replaces 02152-06258.

02112-1625B

$3.15

28

SPACER (6X12X10)

09180-06095

$3.93

29

ARM, RELEASE This part replaces 23220-24300.

23220-18A00

Unavailable

30

BOLT This part replaces 09100-06091.

01500-06207

$2.28
