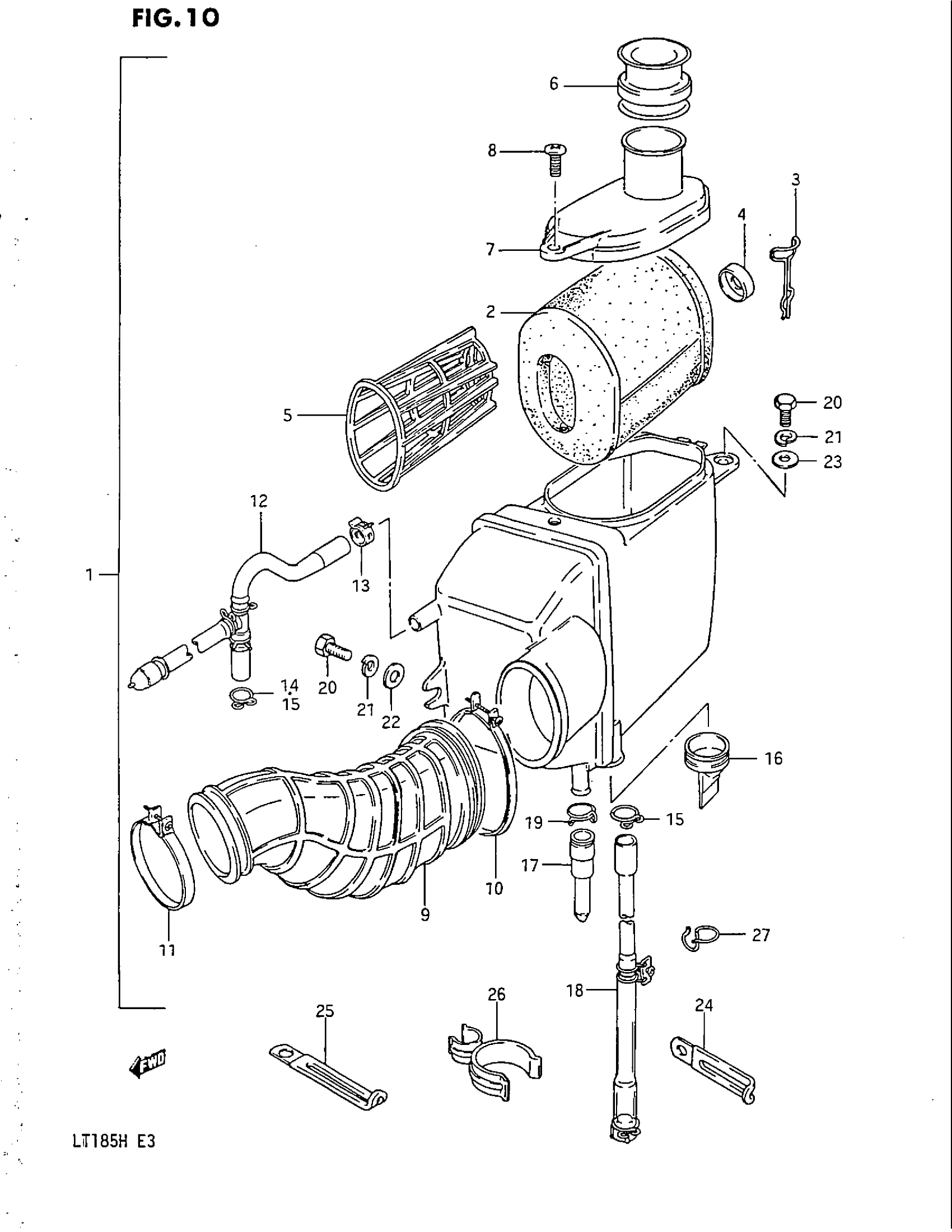

Suzuki LT185 (1987) AIR CLEANER (MODEL F/G/H) Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 19

13700-18923

$60.46

2

FILTER

13780-18920

Unavailable

3

SNAP PIN

13823-20400

$3.00

4

WASHER

13796-20400

$2.99

5

HOLDER

13791-18900

Unavailable

6

GUIDE, INLET

13893-18920

Unavailable

7

CAP

13740-18920

Unavailable

8

SCREW

02142-06167

$1.49

9

HOSE, OUTLET

13881-18900

Unavailable

10

CLAMP

13826-18912

Unavailable

11

CLAMP This part replaces 09402-48207.

09402-48208

$4.64

12

NO DESCRIPTION AVAILABLE This part replaces 13850-18910.

13850-18911

Unavailable

13

CLAMP This part replaces 13825-43400.

09401-13417

$2.26

14

CLIP | MODEL F

09401-14301

$2.35

15

CLIP | MODEL G/H

09401-14301

$2.35

16

HOSE, DRAIN (1)

13873-18900

Unavailable

17

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 13870-24500.

13870-18910

Unavailable

18

NO DESCRIPTION AVAILABLE | MODEL G/H This part replaces 13870-00220.

13870-18910

Unavailable

19

CLIP | MODEL F This part replaces 13824-00A00.

09401-13409

$2.12

20

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

21

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

22

WASHER This part replaces 09160-06007.

09160-06084

$1.78

23

WASHER This part replaces 08322-21068.

08322-01067

$2.13

24

CLAMP This part replaces 09404-06402.

09404-06039

$1.74

25

CLAMP This part replaces 09404-06403.

09404-06039

$1.74

26

CLAMP, BREATHER HOSE

09408-00059

Unavailable

27

CLIP, DRAIN HOSE

13821-18902

Unavailable
